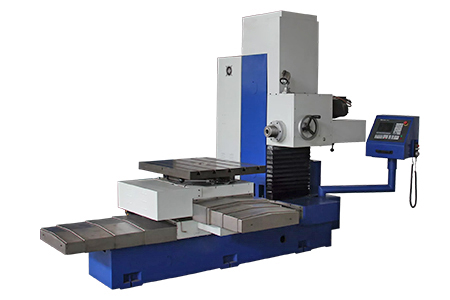

TXK68 CNC Boring and Milling Machine
X axis travel：800mm
Y axis travel：550mm
Z axis travel:1000mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Item No. | 383218 |
| Model | TXK68 |
| Table size | 820X720mm |
| X axis travel | 800mm |
| Y axis travel | 550mm |
| Z axis travel | 1000mm |
| Max.table load | 1200kg |
| Spindle taper | MT5 or BT50 |
| Spindle speed | 27-760rpm(9 speed) |
| Spindle motor power | 5.5kW |
| Positioning accuracy | ±0.015mm |
| Repositioning accuracy | ±0.005mm |
| X/Y/Z axis high traverse | 12000mm/min |
| X/Y axis feed speed | 1-2500mm/min |
| Z axis feed speed | 1-2000mm/min |
| System | Mitsubishi E60 M64AS Fanuc,etc. |
| Overall dimensions | 3450X2100X2880mm |
| N.W./G.W. | 6000/6400kg |
TXK68 CNC Boring and Milling Machine Product Introduction :
TXK68 has the function of boring,milling,drilling,tapping,reaming ect
The CNC boring and milling machine is a perfect equipment to process medium and small tank.
Four axis controlled CNC boring and milling machine can process step,Arc and curved surface
Hardened rectangular guideways ensure consistent work accuracy
Workpiece one time installed can precisely process multi-surface and multi-operation
Features:
1.Our TXK68 has the function of boring,milling,drilling,tapping,reaming ect
2.The CNC boring and milling machine is a perfect equipment to process medium and small tank.
3.Four axis controlled CNC boring and milling machine can process step,Arc and curved surface
4.Hardened rectangular guideways ensure consistent work accuracy
5.Workpiece one time installed can precisely process multi-surface and multi-operation
