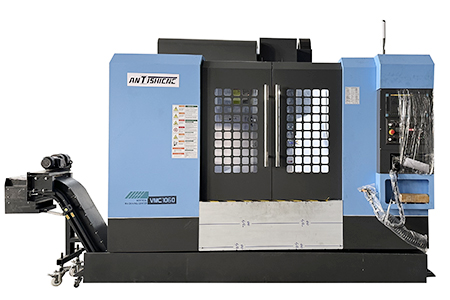

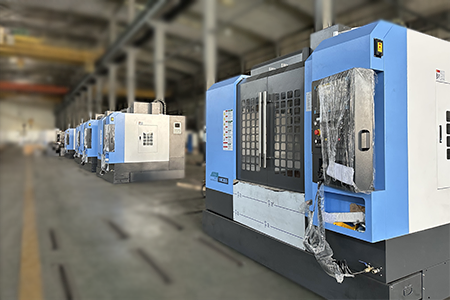

VMC1060 Vertical Milling Machine Center
Table size:1200×600mm
X/Y/Z axis travel:1000/600/600mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :

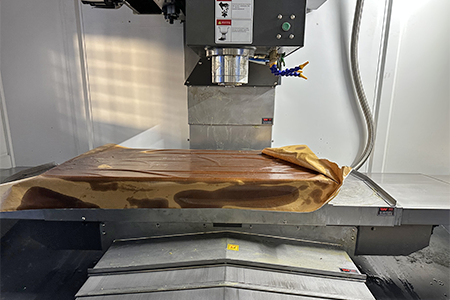

| Technical SPEC| Model | Unit | VMC1060 | |
| Worktable | Table size (L*W) | mm | 1200×600 |
| T-slot (quantity x width x spacing) | mm | 5×18×100 | |
| Max. load capacity of the workbench | kg | 800 | |
| Processing range | X/Y/Z axis travel | mm | 1000/600/600 |
| Spindle end face to table distance | mm | 120-720 | |
| Distance from spindle center-line to column guide rail surface | mm | 650 | |
| Spindle | Spindle motor rated power | KW | 11/15 |
| Range of rotation | rpm | 8000 (10000/12000 direct Option) | |
| Taper hole model | BT40 | ||
| Pull stud specification | P40T-1-MAS403（45°） | ||
| Feed | X/Y/Z axis motor torque (stall) | Nm | 20/20/20 |
| X/Y/Z axis rapid movement speed | m/min | 36/36/24 | |
| X/Y/Z axis maximum feed speed | m/min | 10 | |
| Tool magazine | Automatic tool change method | disc manipulator | |
| Magazine capacity | ATC | 24 | |
| tool length | mm | 300 | |
| tool weight | Kg | 8 | |
| Max. tool diameter (full tool/neighbor empty tool) | mm | φ78/φ120 | |
| Tool to tool change time | s | About 1.55 | |
| Precision | Three-axis positioning accuracy | mm | 0.008 |
| Three-axis repeat positioning accuracy | mm | 0.007 | |
| other | Max. torque | Nm | 52.5/95.5 |
| Total power of machine tool | KVA | About 25 | |
| Machine weight | Kg | About 6800 | |
| Dimensions | mm | About 3200×2500×2800 | |

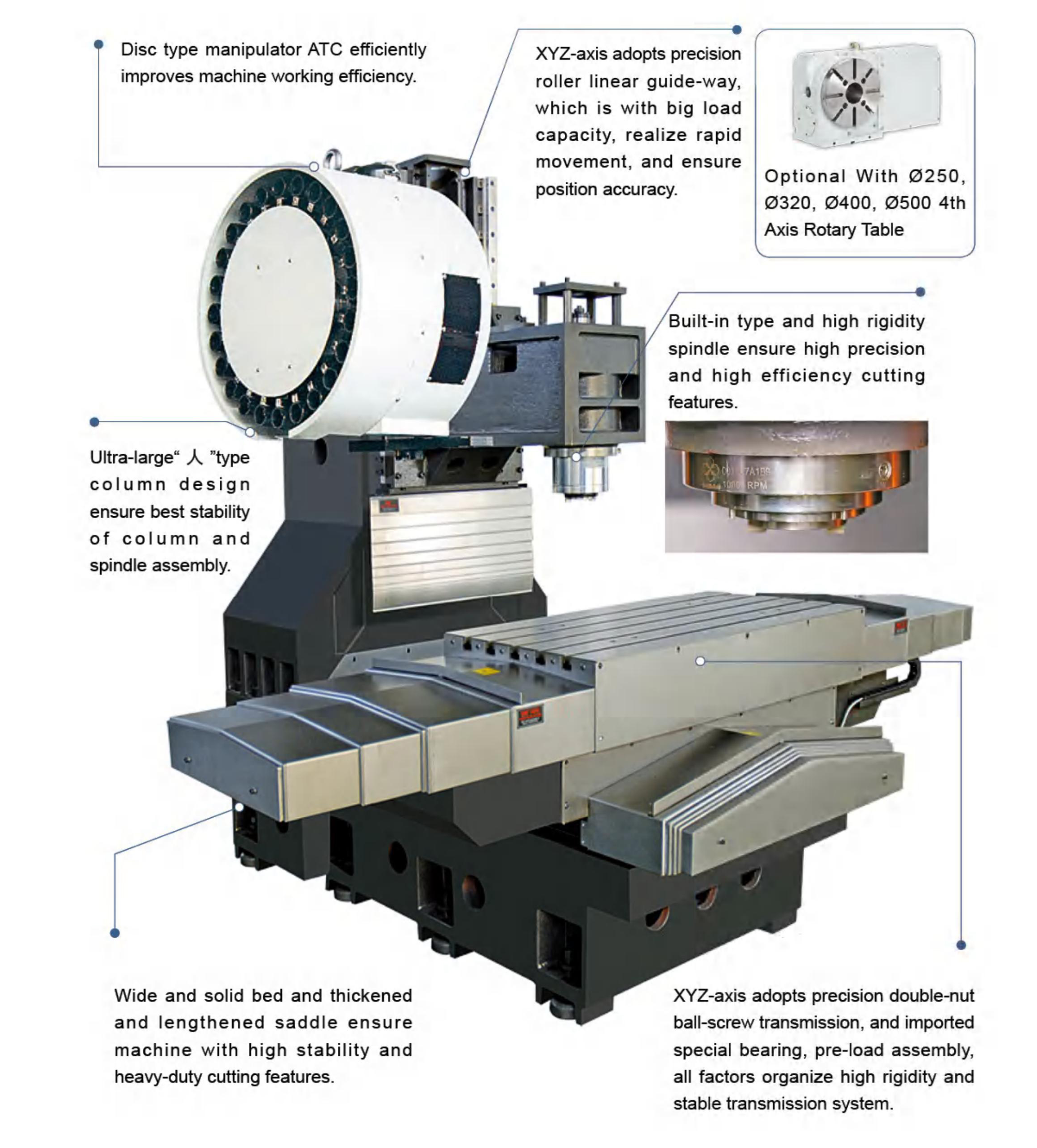

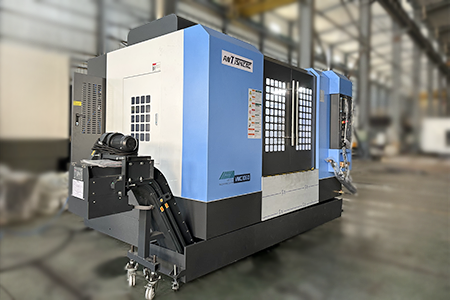

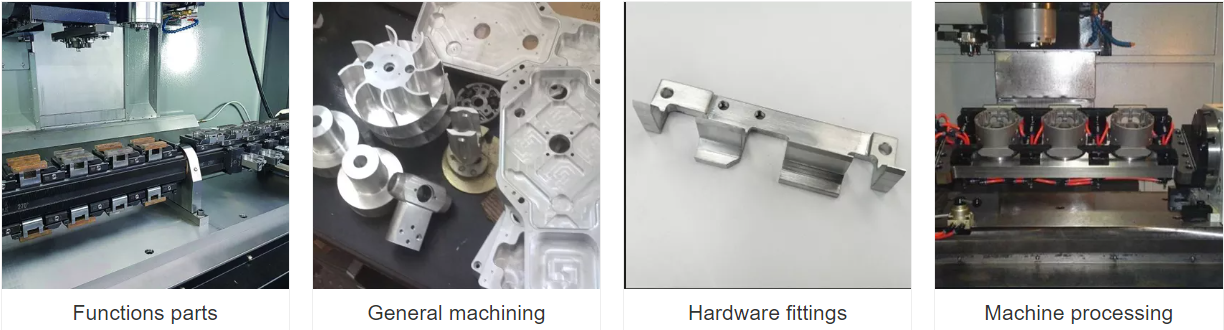

ANTISHICNC Company produced VMC Series CNC milling machine machining take the advantages of traditional vertical linear rail machine tools, such as strong rigidity of the basic frame, symmetrical structure, and strong stability, and introduces the internationally advanced dynamic rigidity design concept and optimizes the design of moving parts. After one clamping, the parts can complete multi-sequence processing such as milling, boring, drilling, and tapping with high precision. The machine tool has high processing efficiency and good rapid response characteristics, and is suitable for the needs of various mechanical processing fields such as molds,automotive industry, and hardware and etc.
Quality Control Points to the VMC Machines
1.High rigidity and long-term accuracy retention
The main large parts of the machine tool: the base, the worktable, the column, the saddle, and the head-stock are all made of high-quality resin sand, high-strength and high-quality cast iron, and have a perfect heat treatment process to eliminate residual stress. The machine has sufficient strength, rigidity and high stability.
The three-axis adopts roller linear guide, which has strong rigidity, fast response speed, high precision, and does not crawl at low speed.
The three-axis transmission adopts the grinding double-nut ball screw made in Taiwan, which is compact in structure, stable in motion and high in precision. The screw support adopts the screw support bearing imported from Japan, and the two ends are pr-stretched to eliminate the precision loss caused by thermal elongation. It forms a stable and high-rigidity mechanical transmission system.
The distance from the center of the main shaft to the guide rail surface is short, the turning moment is small, and the structure is rigid;

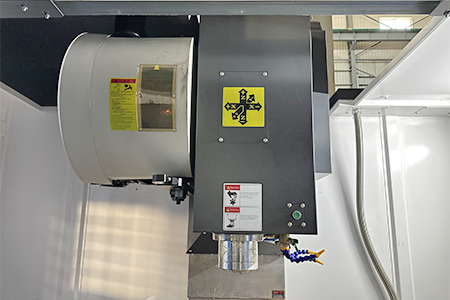

The high-rigidity Taiwan-made spindle is lubricated with grease, which can ensure constant and reliable lubrication of the spindle bearing, which is economical and environmentally friendly and realizes long-term maintenance-free;
2.High precision and high dynamic response characteristics
The spindle adopts three-point support, two high-precision angular contact ball bearings are used at the front and rear ends, and one high-precision angular contact ball bearing is used in the middle, so that the spindle can obtain high rigidity and extremely high spindle rotation accuracy;
Roller linear guides are used for the three axes, with high precision, large load, low friction coefficient, optimized circle accuracy, accurate positioning, and high dynamic response characteristics;
3.High efficiency
Spindle Standard speed up to 10000RPM, rapid movement up to 48/48/36 m/min, cutting feed rate up to 10 m/min; Customer can choose higher speed range as per the demand.
Equipped with an automatic tool changing device for manipulators, with the function of selecting the nearest tool, which is convenient for maintenance, and the tool exchange is fast and reliable;
4.Protective cover
The protective cover made by a professional sheet metal manufacturer is used, and the base drainage is a large water pan structure, which prevents water leakage;
Equipped with air gun and water gun, the processing iron chips can be quickly collected into the chip box.

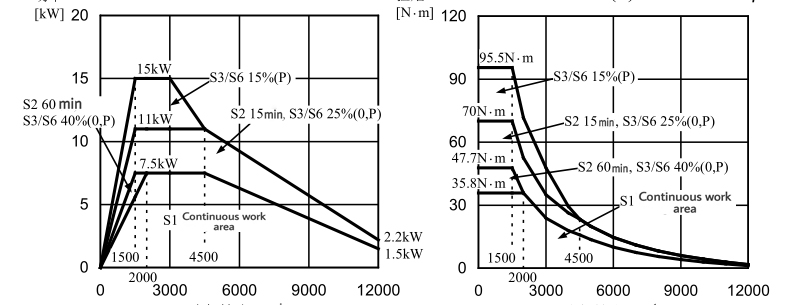

Power & Torque Graphs of VMC 1060
Packing & Shipping Terms
1.Provide the following technical documents when the equipment is delivered
Packing list 1 copy
Factory qualified certificate 1 copy
Operation manual 1 copy
Circuit system schematic diagram 1 copy

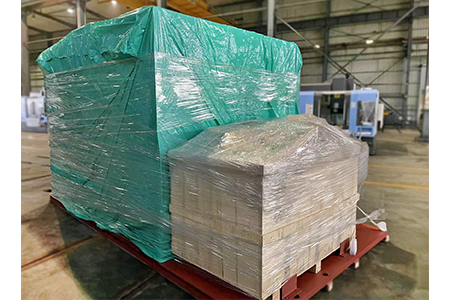

2.Packaging and transportation
 |
 |
Factory ordinary packaging, please confirm with the ANTISHICNC for more details
The transportation is carried out in accordance with the contract terms.
| VMC Model | Package size(MM) | G.W(KG) | N.W(KG) |
| VMC850S | 3900*2250*2570 | 5000 | 4800 |
| VMC850 | 4000*2250*2570 | 5300 | 5100 |
| VMC1060 | 4100*2280*2570 | 6800 | 6500 |
| VMC1160 | 4100*2280*2570 | 6800 | 6500 |
| VMC1260 | 4100*2280*2570 | 6800 | 6500 |
| VMC1370 | 3500*2700*2800 | 10800 | 10500 |
| VMC1380 | 4100*2700*2800 | 13800 | 13500 |
| VMC1580 | 4200*2700*2800 | 14300 | 14000 |
| VMC1890 | 4500*3450*2900 | 15800 | 15500 |
ANTISHICNC Company CNC Milling Machines Acceptance Standard and Methods
Main implementation standards
GB/T 18400.2-2010 “Vertical Machining Center Geometric Accuracy Inspection”
GB/T18400.4-2010 “Machining Center Linear Positioning Accuracy and Repeated Positioning Accuracy Inspection”
GB/T18400.7-2010 “Machining Center Precision Machining Test Piece”
JB/T 8801-1998 “Machining Center Inspection Conditions”
The technical requirements for the acceptance of the machine tool are implemented according to the above standards, and meet the requirements of the national standard, and the machining accuracy meets the requirements of the technical agreement.
STANDARD ACCESSORIES：
Back row chip full cover sheet metal belt chip remover, drawer type water tank and chip box, backward impact chip washing device, full-function operation panel and handwheel, ATC, belt drive spindle, sprinkler cooling system at the spindle side, air cooling system at the spindle side, heat exchange device of electric cabinet, working area cleaning water gun, air gun, working light and alarm light.
OPTIONALACCESSORIES：
| 1 | Chain type chip remover(VMC850S/850/1060) |
| 2 | Chain type chip remover(VMC1160/1260) |
| 3 | Chain type chip remover(VMC1370) |
| 4 | Chain type chip remover(VMC1380/1580) |
| 5 | Chain type chip remover(VMC1890) |
| 6 | BT40 direct connecting spindle (12000rpm)(VMC850S~VMC1370) |
| 7 | Spindle central outlet function(VMC850S/850) |
| 8 | Spindle central outlet function(VMC1060~1890) |
| 9 | 4th rotary table φ250mm (FANUNC β） |
