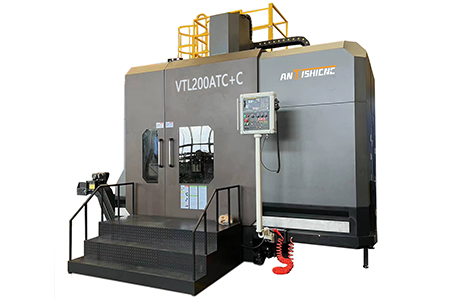

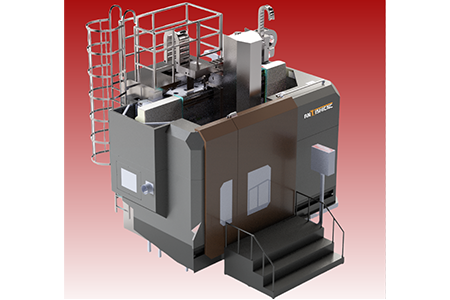

VTL200ATC+C CNC Vertical Turning Milling Machine
Max. workpiece height:1600mm
Max. workpiece weigh:13000kg
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Item | Unit | Specification | ||
| Processing capacity | Worktable Diameter | mm | Ф2000 | |
| Max. swing diameter over Bed | mm | Ф2500 | ||
| Max. turning diameter | mm | Ф2500 | ||
| Max. workpiece height | mm | 1600 | ||
| Max. workpiece weigh | kg | 13000 | ||
| SP1 (Worktable) |
Worktable type | Powerful single action four claws | ||
| Spindle cross roller bearing bore | mm | Ø1028 | ||
| Power | Kw | AC60/75 | ||
| Speed range | Low gear | rpm | 2-64 | |
| High gear | rpm | 65-200 | ||
| Main shaft reduction box | Automatic 2 speed transmission + | |||
| 2 gear transmission | ||||
| Maximum torque | Nm | 23346/35047 | ||
| CF axis | Minimum division | Deg | 0.001 | |
| Speed range | r/min | 0-2.78 | ||
| 2# Spindle SP2 Turning and milling spindle | Spindle power | Kw | 11/15 | |
| Spindle speed | rpm | 50-2250 | ||
| Main shaft reducer | Automatic 2-speed transmission | |||
| Maximum torque of the main shaft |
Nm | 280/472 | ||
| Ravel | X-axis travel | mm | -100 +1450 | |
| Z-axis travel | mm | 1000 | ||
| X-axis fast moving speed | m/min | 10 | ||
| Z-axis fast moving speed | m/min | 10 | ||
| Beam travel | mm | 1000 | ||
| Position series | level | 5X200 | ||
| Ram | Ram size | mm | Ф240 | |
| Tool Magazine | Tool Post Type | ATC | ||
| Number of Tools | Pcs | 18 | ||
| Tool Shank Type | BT50 | |||
| Tool Size | End face o32、 o40 Boring hole Ø 60、Ø 50 | |||
| Maximum Tool Weight | kg | 50 | ||
| Maximum Tool Magazine Load Capacity |
kg | 1000 | ||
| Tool – changing Time | sec | 55 | ||
| Others | Power Supply Voltage | / | 3￠-AC 380V 50Hz±5% | |
| Power Requirement | KVA | 120 | ||
| Lubricating Oil Tank Capacity | Liter | 4.6 | ||
| Hydraulic Oil Tank | Liter | 130 | ||
| Cutting Fluid Tank | Liter | 700 | ||
| Automatic Chip Conveyor | Left-side Chain-plate Type Chip Conveyor |
|||
| Hydraulic Motor | Kw | 2.2 | ||
| Motor for Cutting Fluid Pump | / | 3￠-AC 380V 50Hz±5% | ||
| Machine size | Overall dimension | mm | 7200×5500×6100 | |
| Weight | kg | 49000 | ||
Resources & Downloads:
VTL200ATC+C CNC Vertical Turning Milling Machine Product Introduction :
CNC system function introduction
| FANUC 0i-TF controller standard features | |
| 1 | 10.4″ LCD Color Display Screen |
| 2 | Number of Control Axes: 2 axes (X/Z axes, maximum number of servo axes: 5, maximum number of spindle axes: 3) |
| 3 | Minimum Setting Unit: 0.001mm |
| 4 | Simultaneous Control Axes: 2 axes (X/Z axes, number of simultaneously controlled axes: 4) |
| 5 | Incremental Feed: x1, x10, x100 |
| 6 | Rapid Traverse Percentage: F0, F25, F50, F100% |
| 7 | Inch/Metric Conversion |
| 8 | Rapid Positioning: G00 |
| 9 | Linear Interpolation: G01, Circular Interpolation: G02/G03, Thread Cutting: G32 |
| 10 | Coordinate System Setting/Spindle Maximum Rotational Speed Setting: G50 |
| 11 | Spindle Override: 50 – 120% |
| 12 | Return to Reference Point: G28 |
| 13 | Machine Lock |
| 14 | Dwell: G04 |
| 15 | Over Travel Alarm |
| 16 | Position Switch Function |
| 17 | Abnormal Load Detection |
| 18 | Time Display |
| 19 | Backlash Compensation |
| 20 | Emergency Stop Function |
| 21 | Actual Speed Display Function |
| 22 | Current Position Display |
| 23 | Rapid Feed/Cutting Feed Compensation |
| 24 | Chamfering ON/OFF |
| 25 | Automatic Tool Compensation, Tool Diameter and Radius Compensation, Tool Geometry and Wear Compensation |
| 26 | Single Fixed Cycles: G90, G92, G94, Compound Fixed Cycles: G70 – G76 |
| 27 | Feed Rate per Minute: G98 |
| 28 | Feed Rate per Revolution: G99 |
| 29 | Spindle Linear Velocity Control: G96 |
| 30 | Spindle Rotational Speed Control: G97 |
| 31 | Working Time/Number of Parts Display |
| 32 | Maintenance Information Display |
| 33 | Language Display: Chinese |
| 34 | Cycle Time Reduction Function |
| 35 | Backlash Compensation Function |
Standard configuration
| 1 FANUC-0i-TF Plus Control System |
| 2 Workbench: Servo Motor with 60/75KW, 200rpm |
| 3 Diameter of the Workbench Plate Surface: Ø2000mm |
| 4 Four Single-action Powerful Claws |
| 5 Workbench Crossed Roller Bearing: Ø1028mm, |
| 6 Ø240 |
| 7 Spindle Two-stage Transmission (Automatic 2-speed) |
| 8 Tool Magazine Specification: 18-station Tool Magazine |
| 9 Shank specifications:BT50 |
| 10 End face:o32、 o40/Boring: Ø60, Ø50 |
| 11 Manual Pulse Generator |
| 12 USB and CF Card Interfaces |
| 13 Centralized Automatic Lubrication System – Pressure Alarm |
| 14 Hydraulic Control System |
| 15 Manual Pulse Generator |
| 16 Machine Tool Casting: HT-300A+ |
| 17 Lead Screw – from Taiwan |
| 18 Cutting Fluid Precision Filtration System + Center Outlet for Water |
| 19 Cleaning Water Gun + Cleaning Air Gun |
| 20 Electric Cabinet Air Conditioner + Sealed Electric Cabinet |
| 21 Disc-type Oil-water Separator |
| 22 Automatic Power-off (Over-current and Over-voltage Protection) |
| 23 LED Working Lighting Lamp |
| 24 LED Three-color Indicator Lamp for Abnormal Pause of Work |
| 25 Outer Protective Sheet Metal + Safety Door Lock |
| 26 Automatic Chip Conveyor and Chip Collector (including Emergency Stop Switch) |
| 27 Tool Box and Tools |
| 28 Machine Tool Adjusting Shim |
| 29 Isolation Transformer (380V 220V) |
Optional configuration
Siemens SIEMENS 828D Control System
Full Protection + Automatic Door + Safety Door Lock
Tool Magazine with 24/32 Tool Positions Chip Conveyor (Magnetic Scraper Type) Cutting Water Chiller
Full Protection + Automatic Door + Safety Door Lock
Tool Magazine with 24/32 Tool Positions Chip Conveyor (Magnetic Scraper Type) Cutting Water Chiller
