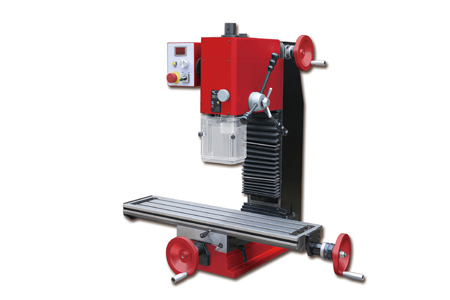

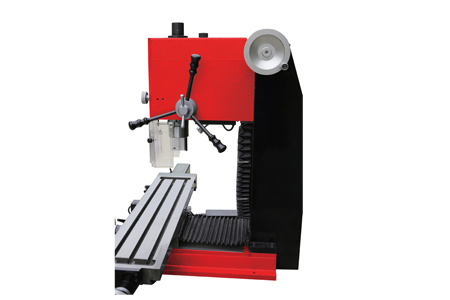

X3.5 Bench Mill Drill
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
|
Drilling capacity
|
25 mm
|
|
Spindle taper
|
MT3 or R8
|
|
Longitudinal travel (X)
|
500 mm
|
|
Cross travel (Y)
|
210 mm
|
|
Headstock travel (Z)
|
250 mm with chuck guard
|
|
Spindle stroke
|
78 mm
|
|
Max.distance spindle to table
|
370 mm /MT3
|
|
Table effective size
|
740 x 180 mm
|
|
T-slot size
|
12 mm
|
|
Motor output power (Brushless DC motor)
|
1000W
|
|
Spindle speed Low range
|
100-2000 rpm±10%
|
|
Spindle speed High range
|
100-5000 rpm±10%
|
|
Overall dimension (LxWxH)
|
950 x 770 x 920 mm
|
|
Packing size (LxWxH)
|
1100 x 920 x 990 mm
|
|
Weight (Net/Gross)
|
145/175kg
|
Product Features
•Variable spindle speed
•Feeding depth and spindle speed digital readout
•Fine feeding function
•Large worktable
•Multiple function for selection
