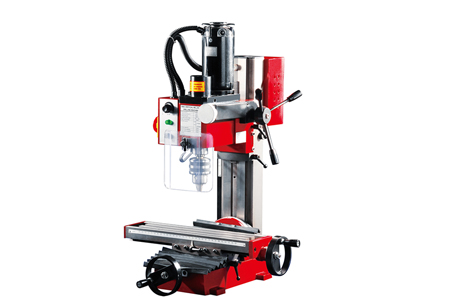

X2 Mini Mill Drill
Drilling capacity : 13 mm
Headstock travel (Z) : 180 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Drilling capacity |
13 mm |
| End milling capacity |
16 mm |
| Face milling capacity |
30 mm |
| Longitudinal axis (X) |
220mm |
| Crossaxis (Y) |
100mm |
| Headstock travel (Z) |
180 mm |
| Throat |
167 mm |
| Max. distance spindle to table |
280 mm |
| Head tilt |
45°L, 45°R |
| Spindle taper |
MT3 or R8 |
| Motor output power |
350 w |
| Spindle speed Low range |
100-1100 ±10% rpm |
| High range |
100-2500 ±10%rpm |
| Table effective size |
390×92 mm |
| T-slot size |
12 mm |
| Overal dimension (LxWxH) |
520x510x760 mm |
| Package dimension(LxWxH) |
540x480x700 mm |
| Weight (Net/Gross) |
50/68 kg |
Product Features
• With cast iron for vibration free running
• Milling head and column tilts to 45° Left & Right
• Variable speed motor with a 2 speed gearbox
• Coarse down feed for drilling
• operationsFine down feed control for accurate tool height setting
• 3MT spindle fitted with a 13mm drill chuck and arbour
