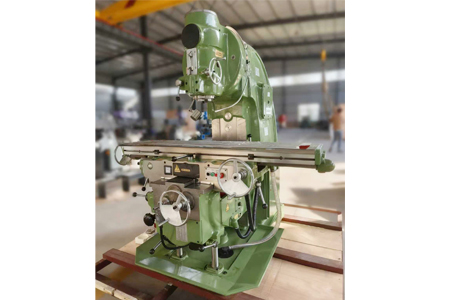

X5140B Vertical Universal Milling Machine
Table size : 1700x400mm
Max. load of table : 1000kg
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Name | X5140B |
| Spindle taper | ISO50 |
| Distance between spindle nose and table surface | 80-500mm |
| Spindle center to column guide-way face | 385mm |
| Rabge of spindle speed | (18steps)30-1500r/min |
| Spindle axial movement distance | 85mm |
| Swivel angle of vertical milling head | 45 degrees |
| Table size | 1700x400mm |
| Table travel(horizontal/cross/vertical) | 900/315/400mm |
| Range of longitudinal,cross travel | (18steps)23.5-1180mm/min(max2300) |
| Range of cross travel | (18steps)23.5-1180mm/min(max2300) |
| Range of vertical travel | (18steps)8-394mm/min(max770) |
| T-slot NO./width/distance of table | 3/18/80mm |
| Main motor | 11KW |
| Motor for rapid devtce of table | 3.0KW |
| Motor for vertical devtce of table | 3.0KW |
| Motor of cooling pumps | 125w |
| Speed of cooling pumps | 25L/min |
| Max weight of workpiece | 1000kg |
| Overall dimension | 2700x2350x2500mm |
| N.W/C.W | 4450/4650KG |
Resources & Downloads:
X5140B Vertical Universal Milling Machine Product Introduction :

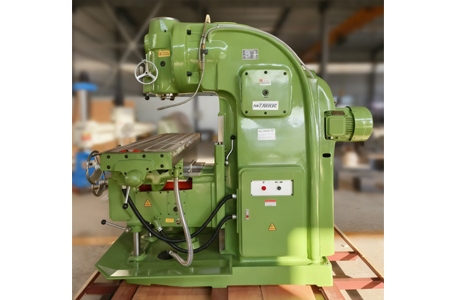

X5140B is a classic example of a heavy-duty, universal, manual milling machine. It is not designed for high-precision CNC work but rather for robust, versatile machining tasks in a traditional workshop environment. Its core advantages are derived from its power, rigidity, and flexibility.
Here are its key strengths:
1. Superior Heavy-Duty Cutting Capability and Rigidity
This is its most prominent advantage.
-
High-Power Spindle Motor: The 11KW main motor provides substantial power, enabling the use of large-diameter cutters for high-volume metal removal in materials like steel and cast iron.
-
Robust Spindle System: The ISO 50 taper is a hallmark of large milling machines. It offers a massive tool-holding capacity, preventing tool pull-out and minimizing vibration during heavy cuts, which ensures stable and reliable operation.
-
Massive Cast Iron Construction: With a Net Weight of 4450 kg, the machine’s structure is incredibly rigid. This mass effectively dampens vibrations caused by cutting forces, leading to better surface finishes, longer tool life, and the ability to maintain accuracy under load.
2. Exceptional Versatility and Flexibility
The “Universal” designation is key here.
-
Swiveling Vertical Head: The ability to swivel the vertical head ±45 degrees allows for angular milling operations (e.g., machining dovetails, chamfers, or complex profiles) without needing to re-fixture the workpiece.
-
Dual-Function Potential: As a universal mill, it can typically be configured for both vertical and horizontal milling. The vertical head can be engaged for end milling and face milling, while the powerful horizontal spindle can be used with arbors for slab milling, gang milling, and slotting, making it a “two-in-one” machine for a workshop.
3. Large Workpiece Capacity
It is built to handle sizable components.
-
Generous Table Size: A 1700mm x 400mm table provides ample space for mounting large workpieces or complex fixtures.
-
Substantial Work Envelope: With 900mm of longitudinal travel and a 500mm maximum spindle-to-table distance, it can accommodate very tall and long parts.
-
High Weight Capacity: The capability to handle workpieces up to 1000 kg places it in the industrial category for fabricating large machinery parts, molds, and fixtures.
4. Robust and Reliable Mechanical Design
It is built with durability and longevity in mind.
-
Gear-Driven Feeds and Speeds: The 18-step mechanical gearbox for both spindle speeds and feed rates is simple, powerful, and highly durable. Unlike variable frequency drives (VFDs), it provides full torque across all speed ranges and is less prone to failure in harsh environments.
-
Dedicated Feed Motors: Separate 3.0KW motors for table and vertical feeds provide strong, consistent power for the feed movements, even under heavy cutting conditions.
-
Integrated Coolant System: The included 25 L/min coolant pump is essential for effective heat management and chip evacuation during prolonged cutting operations, extending tool life.
Summary & Ideal Application
In summary, the X5140B is a powerhouse of a manual milling machine. Its advantages are not in speed or automation, but in:
-
Muscle: It can take deep, heavy cuts that would overwhelm lighter machines.
-
Versatility: It can perform a wide range of milling operations (vertical, horizontal, angular).
-
Durability: Its simple, over-built mechanical design ensures a long service life with minimal downtime.
It is an ideal machine for:
-
Heavy equipment repair and fabrication shops.
-
Tool and die shops for creating large molds and fixtures.
-
General-purpose machining in steel service centers or foundries.
-
Educational institutions (e.g., vocational colleges) for teaching heavy-duty machining principles.
Its main limitations compared to modern CNC mills are its reliance on operator skill and the lack of automated, programmable movements. However, for the specific niche of heavy, manual milling, the X5140B represents a highly capable and robust solution.
| NO. | NAME | SPECIFICATION | Q’ty |
| 1 | Milling machine | 1 | |
| 2 | Mill chuck | ISO50 | 1 |
| 3 | Inner-hexagonal spanner | 8. 10 | 1 |
| 4 | Wrench | S21-24/S27-30 | 1 |
| 5 | Draw arbor | 7:24 ISO50/MS4 | |
| 6 | Taper | 1 | |
| 7 | Handle | 1 | |
| 8 | Operation manual | 1 | |
| 9 | Certificate of inspection | 1 | |
| 10 | Packing list | 1 |
Get The Required Product Quotation As Quickly As Possible
If possible, Given detailed request helps to gain better-matched customized solution. Thanks for your patience. your request will be responsed within 1 hours, kindly pay attention to your email please.
