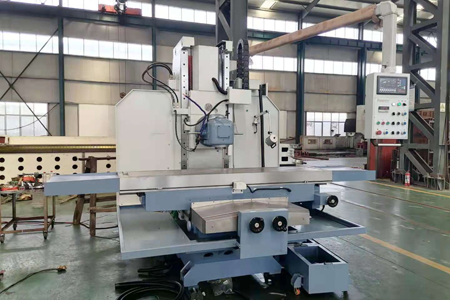

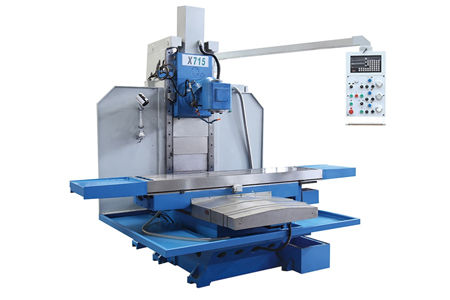

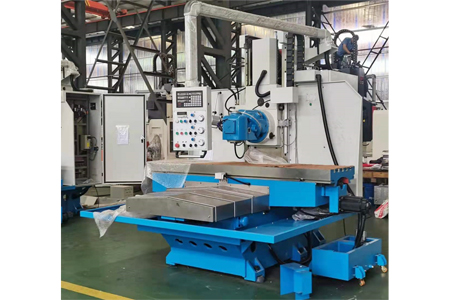

X715 / X716 Bed Type Milling Machine
Table size (WxL) : 2500x600mm
Max. load of table : 2000kg
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Items | X715 | X716 |
| Working area | ||
| Table size | 2100x500mm | 2500x600mm |
| T-slot (width x No. x pitch) | 20mmx4x100mm | 20mmx5x100mm |
| Max. load of table | 2000kg | |
| Distance from spindle nose to table surface | 0-650mm | 0-700mm |
| Distance from spindle axis and table surface | 8-660mm | |
| Distance between spindle axis and column guideway | 610mm | 8-660mm |
| Travel | ||
| Longitudinal travel of X axis | 1500mm | 1800mm |
| Cross travel of Y axis | 650mm | 700mm |
| Spindle | ||
| Spindle taper | 7:24 ISO50 | |
| Spindle speed | (2steps) 6-300r/min, 30-1500r/min | |
| Main motor power | 11kW | |
| Feed | ||
| Table feed-X/Y | 2.5-3000mm/min | |
| Table feed-Z | 2.5-2500mm/min | |
| Table rapid feed X/Y/Z | 6000/6000/3000mm/min | |
| Others | ||
| Coolant motor | 90W | |
| Overall dimension | 3220x2420x2800mm | 4380x2520x2800mm |
| Net weight | 7300kg | 9000kg |
Equipment Introductions
X715, X716 series bed types milling machine a mature product mainly exported by ANTISHICNC company. The whole machine has a compact structure, beautiful and pleasant appearance. Its suitable for drilling , hole-expansion, reaming, bevel edge,and tapping, for surface milling, step plane ,slope ,and milling groove , for cutting and milling curve ,curve surface and cam.Have the function of step-less speed and automatic speed change to gain large torque with low speed, suitable for processing thick cutting depth and larger-diameter hole.The fuselage and main components are high strength cast iron, micro structure stability, ensure the stability of machine tool for long-term use.
Product Details
• 2000kg heavy duty, bed-type milling machine
• 360° swivel head, vertical & horizontal milling available
• infinitely variable spindle speeds
• 3-axis ball screws
• 3-axis individual servo motors driven
• equipped with E-handwheels for manual control of table movement
• equipped with automatic electronic lubrication pump
• equipped with coolant system & coolant water tank
Standard accessories:
ISO 50 Milling chuck
Milling holder ISO50-Φ40
Middle sleeve ISO50/MS4
Draw bar
Oil gun
Foundation nuts
Tools & tool box
Working lamp
Coolant system
Automatic lubrication pump
Coolant water tank
Horizontal milling support bracket
Operation manual
Optional accessories(need extra cost):
3-axis Digital Read Out
Universal dividing head 200mm
Rotary table 320mm
Machine vise 250mm
Milling chuck 15pcs
Worktable protection cover
Spindle protection cover
Clamping kit M16
Power tool clamping
LED work lamp
Schneider electric
