X6323A X6323B Universal Turret Milling Machine
Table size
230mm x 1067mm (9"x 42")
230mm x 1246mm (9"x 49")
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Item /Model | Unit | X6323A | X6323B | |
| Table size | mm/” | 230×1067(9”x42”) 230×1246(9”x49”) | ||
| Long travel | mm | 650 850 | ||
| Cross travel | mm | 305 | ||
| Vertical travel | mm | 350 | ||
| T-slot No.and size | mm | 3×16 | ||
| Ram Travel | mm | 315 | ||
| Distance from spindle nose to table surface | mm | 0~350 | ||
| Spindle hole taper | – | Standard :R8 Optional :ISO 30/ISO40 | ||
| Spindle travel | mm | 127 | ||
| Spindle Speed | rpm | Standard:shift grade 50HZ66-4540 60HZ：80-5440 | ||
| rpm | Optional :variable 60-4200 | |||
| Auto.quill feed | mm | Three steps:
0.04(0.0015”)/0.08(0.003”)/0.15(0.006”)mm/revolution |
||
| Spindle motor | KW/HP | 2.25KW/3HP | ||
| Head swivel | ° | 90° | ||
| Head tilting | ° | 45° | ||
| Dimension
of package |
One miller per case | mm | 1400x1476x2030 | |
| Two miller per case | mm | 1450x1570x2080 | ||
| Three miller per case | mm | 1450x2180x2080 | ||
| G.W/set | KG | 1000 | 1060 | |
Turret Milling Machine is also called Rocker arm universal milling machine
Product Description:
Milling machines are tools used by engineers and machine creators to cut metal into a specific shape. A turret milling machine is a vertical mill, meaning the spindle — the area that performs the cuts — is positioned vertically. The turret milling machine is considered a versatile unit, because it can create a wide array of shapes. It has a quill that can be raised or lowered to create different cutting depths. Turret milling machines are only effective if they are kept at a relatively small size, because the quill is difficult to operate with larger units.

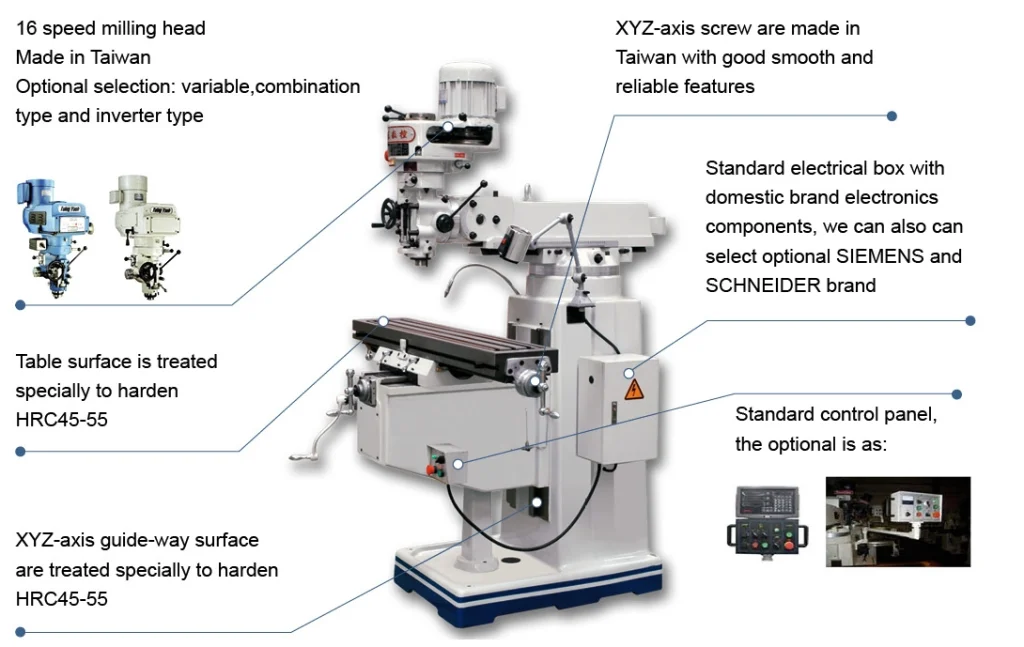

Product Features:
The machine tool has good rigidity and can bear heavy load cutting;
The spindle motor of the machine tool has high power and wide speed range, which can give full play to the efficiency of the tool and can carry out high-speed cutting.
The wear-resistant castings of the machine tool are made of vanadium-titanium wear-resistant cast iron, and the important transmission parts are made of high-quality alloy steel;
Ensure the durability and stability of the machine tool;
The machine tool has a complete lubrication system.
Standard Equipment
| drawbar | Handle lubricate | Electrical cabinet |
| Tools and tool box | Working light | 16 speeds milling head |
Optional Equipment
