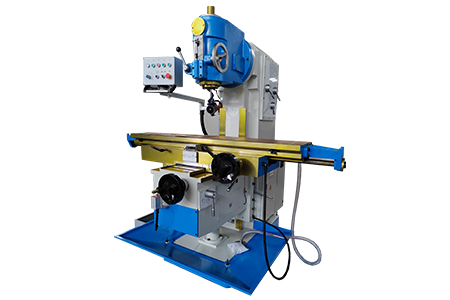

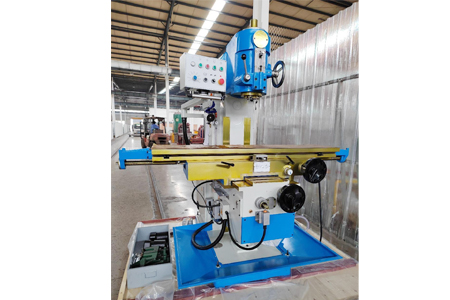

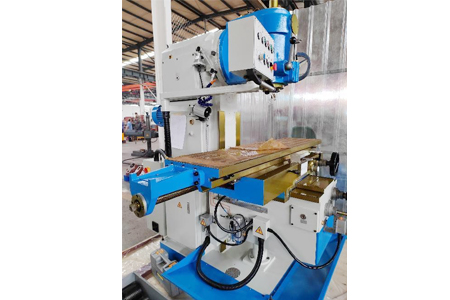

XL5036CL vertical milling machine
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Specifications | XL5036CL |
| Working area | |
| Worktable size (L×W) | 1600x360mm |
| T slot (Width x No. x pitch) | 18x3x80mm |
| Distance between spindle nose and table | 50-500mm |
| Distance between spindle axis and column guideway | 378mm |
| Travels | |
| Worktable longitudinal travel (X) | 1300mm |
| Worktable cross travel (Y) | 320mm |
| Worktable vertical travel (Z) | 450mm |
| Spindle | |
| Spindle speed | 12 steps;
50-1475rpm |
| Spindle taper | 7:24, ISO50 |
| Motor power | 5.5kW |
| Feed | |
| Table Rapid feed (X/Y/Z) | 1200/800/600mm |
| Torque of X/Y/Z axis AC servo motor | 10Nm |
| Max. swivel angle of vertical milling head | ±30° |
| Others | |
| Machine size (L×W×H) | 2520*2100*2150mm |
| Net weight | 2900kg |
Equipment Introductions
XL5036CL series vertical Milling Machine a mature product mainly exported by ANTISHI company. The whole machine has a compact structure, beautiful and pleasant appearance. Its suitable for drilling , hole-expansion, reaming, bevel edge,and tapping, for surface milling, step plane ,slope ,and milling groove , for cutting and milling curve ,curve surface and cam.Have the function of step-less speed and automatic speed change to gain large torque with low speed, suitable for processing thick cutting depth and larger-diameter hole.The fuselage and main components are high strength cast iron, micro structure stability, ensure the stability of machine tool for long-term use.

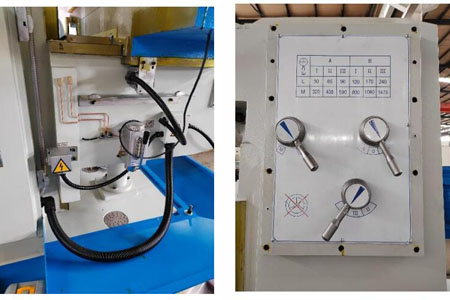

Product Details
•Spindles are driven by gearbox directly, for powerful milling
•Coolant system, lubrication system, chip tray are included
•Work table feed is driven by servo motor, good accuracy, low noise, and easy to operate.
•One lever can select table feed directions
•Brief design of control panel, for easy operation (DRO is optional)
•±45°(left & right) swivel table is hot sale (optional)
Standard Equipment&Optional Equipment
| Description | Specification | Quantity |
| Crank | 1 | |
| Wrench | 1 | |
| Inner hexagon spanner | 5 | 1 |
| Inner hexagon spanner | 10 | 1 |
| Milling arbor | 27 | 1 |
| Milling arbor | 40 | 1 |
| Slide rod | M24 | 1 |
| NUT | M24 | 2 |
| 7:24 sheath | 1 |
Optional accessories:(need extra cost)
| NO. | Name |
| 1 | Universal dividing head 100 |
| 2 | Rotary table 250 |
| 3 | Collect holder and collets(ISO40 milling chuck 15pcs) |
| 4 | CE Schneider electric |
| 5 | Aluminum hangarm |
| 6 | Spindle cover |
| 7 | Worktable cover |
| 8 | LED work lamp |
| 9 | Clamping kit 58pcs |
| 10 | 3 axis DRO |
