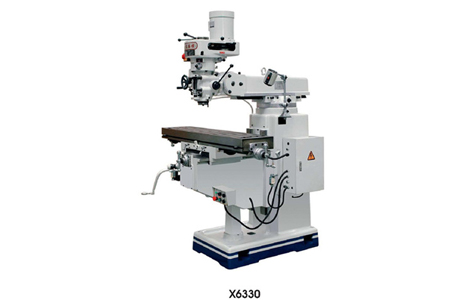

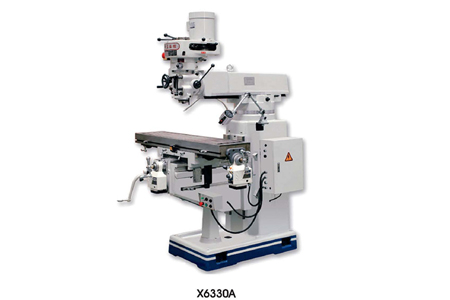

X6330 X6330A Turret Milling Machine
Table size
305mm x 1370mm (10"x 54")
305mm x 1500mm (10"x 60")
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
Item /Model | Unit | X6330 | X6330A | ||
Table size | mm/” | 305×1370(12”x54”) 305×1500(12”x58”) | |||
Long travel | mm | 870 1000 | |||
Cross travel | mm | 380 | |||
Vertical travel | mm | 400 | |||
T-slot No.and size | mm | 3×16 | |||
Ram Travel | mm | 500 | |||
Distance from spindle nose to table surface | mm | 0~350 | |||
Spindle hole taper | – | Standard :ISO40 | |||
Spindle travel | mm | 127 | |||
Spindle Speed | rpm | Standard: Shift grade 50HZ:66-4540 60HZ :80-5440 | |||
rpm | Optional :variable 60-3600 | ||||
Auto.quill feed | mm | Three steps:
0.04(0.0015”)/0.08(0.003”)/0.15(0.006”)mm/revolution |
|||
Spindle motor | KW/HP | 3.75KW/5HP | |||
Head swivel | ° | 90° | |||
Head tilting | ° | 45° | FIX | ||
Dimension
of package |
One miller per case | mm | 1566x1650x2080 | ||
Two miller per case | mm | 1720x1800x2175 | |||
G.W/set | KG | 1430 | 1650 |
Turret Milling Machine is also called Rocker arm universal milling machine
Product Description:
Milling machines are tools used by engineers and machine creators to cut metal into a specific shape. A turret milling machine is a vertical mill, meaning the spindle — the area that performs the cuts — is positioned vertically. The turret milling machine is considered a versatile unit, because it can create a wide array of shapes. It has a quill that can be raised or lowered to create different cutting depths. Turret milling machines are only effective if they are kept at a relatively small size, because the quill is difficult to operate with larger units.
Product Features:
The machine tool has good rigidity and can bear heavy load cutting;
The spindle motor of the machine tool has high power and wide speed range, which can give full play to the efficiency of the tool and can carry out high-speed cutting.
The wear-resistant castings of the machine tool are made of vanadium-titanium wear-resistant cast iron, and the important transmission parts are made of high-quality alloy steel;
Ensure the durability and stability of the machine tool;
The machine tool has a complete lubrication system.
Standard Equipment
drawbar | Handle lubricate | Electrical cabinet |
Tools and tool box | Working light | 16 speeds milling head |
Optional Equipment
