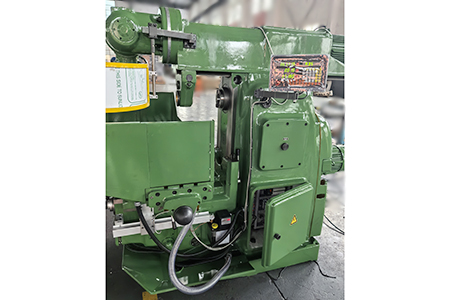

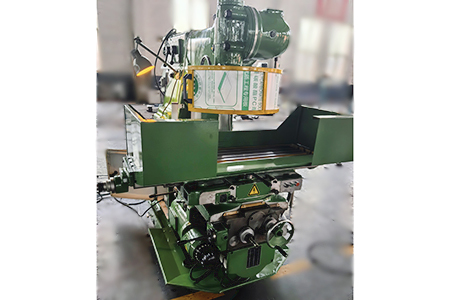

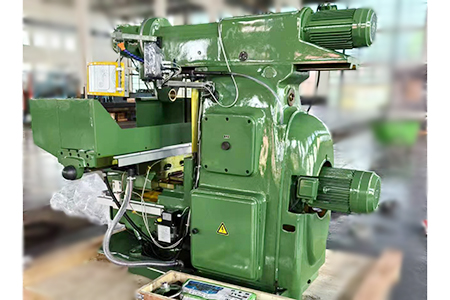

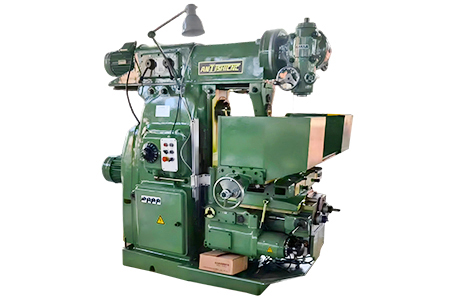

X6240B Universal Swivel Head Milling Machine
Working surface(W×L):400×1700mm
Distance between T-slots:90mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Specification | Unit | X6240B | |
| Working Table | Working surface(W×L) | mm | 400×1700 |
| Bearing | kg | 500 | |
| No.of T-slots of table | Pcs | 3 | |
| Width of T-slots of table | mm | 18 | |
| Distance between T-slots | mm | 90 | |
| Max.swivel angle | dep | ±45 | |
| Travels | X-direction Longitudinal(manual/auto) | mm | 900 |
| Y-direction
Cross (manual/auto) |
mm | 320 | |
| Z-direction Vertical(manual/auto) | mm | 380 | |
| Spindle | Taper | IOS7: 24 NO.50 | |
| Speed range | r/min | 30-1500 | |
| No.of spindle speeds | Step | 18 | |
| Spindle bore diameter | mm | 29 | |
| Distance from spindle nose to table surface min./mix. | mm | 215/470 | |
| Distance from centre line of spindle to vertical guideway surface of column | mm | 30/350 | |
| Spindle tool holder formation (horizontal spindle/vertical spindle) | NT50/NT40 | ||
| Distance from vertical spindle end face to worktable | mm | 70/500 | |
| Vertical spindle bore diameter | mm | 16 | |
| Max.swivel angle | dep | 360° | |
| Vertical spindle speed range | r/min | 90-1680 | |
| No.of spindle speeds | Step | 9 | |
| Vertical movement distance of vertical spindle | mm | 65 | |
| Max.swivel angle | dep | 360° | |
| Power supply | 380V/50HZ | ||
| Feeding | Cutting feed rate | mm/min | X:23.5~1180 Y:15~786
Z :8~ 394 |
| Rapid feed rate | mm/min | X,y:2300 z:770 | |
| No.of feeds | Step | 18 | |
| Motor | Power of spindle motor | kw | 11 |
| Power of feed motor | kw | 3 | |
| Power of vertical spindle motor | kw | 4 | |
| Others | Overall dimensions（L*W*H） | mm | 2294×1770×1858 |
| Machine weight | kg | 4000 | |
X6240B Universal Swivel Head Milling Machine Product Introduction :
The X6240B universal rotary head milling machine is used for metal cutting. The machine has reasonable design, excellent manufacturing, stable and reliable performance, easy use and maintenance, beautiful appearance, reasonable motor power, low noise, long service life, and does not pollute the environment. The equipment has mature performance and is easy to maintain, repair and use. The equipment must have necessary safety protection facilities and must be environmentally friendly and energy-saving. The whole machine complies with the requirements of export regulations, export packaging, and export container transportation standards.
Standard Equipment:
Motor: SMART
Travel switch: China
AC contactor: SCHNEIDER
Thermal relay: SCHNEIDER
Breaker: SCHNEIDER
Bearing: Harbin Bearing
Spindle brake electromagnetic clutch: China
Control box and feed box: China
| No. | Name | Specification | Quantity | Remark |
| 1 | Double end wrench
Single head wrench |
17×19，22×24
27×30，32×36 14 |
1 PCS for each | S91－1
S91－2 |
| 2 | Allen wrench | 5 ．8 ．10 | 1 PCS for each | S91－7 |
| 3 | Electrical box wrench | 1 Set | 62W845A | |
| 4 | Pull rod | M24×700 | 1 Set | B1S63-1 (1 piece each of tie rod, nut and back nut |
| 5 | Anchor bolts
Washer Nut |
M20×500
20 M20 |
4 PCS
4 PCS 4 PCS |
|
| 6 | Oil gun | 1 PCS | ||
| 7 | Lighting bulb | AC24V 40W | 1 PCS | |
| 8 | Milling cutter spindle body | Φ27 | 1 Set | B1S61-6 (1 piece of spindle body, 14 pieces of rings, 1 piece of sleeve) |
| 9 | Milling cutter spindle body | Φ32 | 1 Set | B1S61-6 (1 piece of spindle body, 13 pieces of rings, 1 piece of sleeve |
Optional accessories:(need extra cost)
3-axis Digital Read Out
Dividing head 160mm (MANUAL)
Machine vise 6”
58 pcs Clamping kits
Spindle protection cover
Worktable protection cover
Automatic centralized oil lubrication
