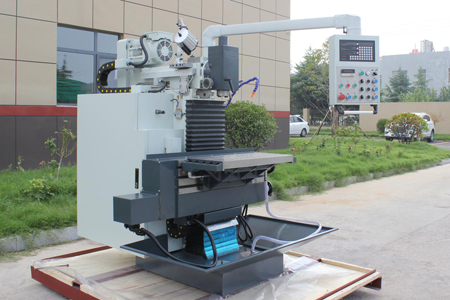

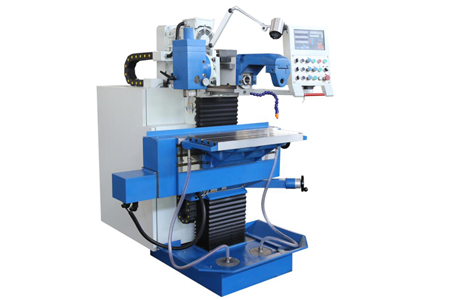

XL8132 XL8140 Universal Tool Milling
Work space dimensions : 800*400mm
Vertical table dimensions : 1020*225mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| specification | unit | XL8132 | XL8140 | |
| Work space dimensions | Mm | 750*320 | 800*400 | |
| Vertical table dimensions | Mm | 890*225 | 1020*225 | |
| T-slots,work table | Mm | (5)14*63 | (6)14*63 | |
| T-slots,vertical table | Mm | (3)14*63 | (3)14*63 | |
| Table load capacity | Kg | 160 | 200 | |
| travels | Longitudinal(X) | Mm | 405 | 500 |
| Transverse(Y) | Mm | 305 | 400 | |
| Vertical(Z) | Mm | 400 | 400 | |
| Speed range | Rpm | (2)40-2000 | (2)40-2000 | |
| Spindle mount | NT40 | NT40 | ||
| Feeds X Y Z axis | Mm/min | 10-1000 | 10-1000 | |
| Rapid feed | Mm/min | 1200 | 1200 | |
| Quill stroke | Mm | 60 | 60 | |
| Main motor rating | KW | 3.7 | 3.7 | |
| Feed motor rating | N.M | X：7.7
Y：7.7 Z：10 |
X：7.7
Y：7.7 Z：10 |
|
| Dimensions (L*W*H) | Mm | 1500*1700*1800 | 1500*1700*1800 | |
| weight | Kg | 1500 | 1550 | |
Resources & Downloads:
XL8132 XL8140 Universal Tool Milling Product Introduction :
XL8132、XL8140 Machine Features：
- Ball screws and servo motors adopted on X Y Z 3-axis for easy and precise feeds
- Infinitely variable vertical cutting head with a swivel ±90°and the spindle controlled by variable frequency motor.

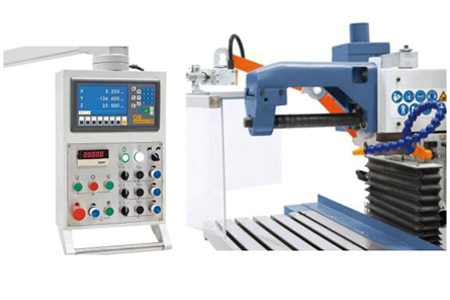

- Electronic handwheeladopted on X Y Z 3-axis ,easy operating

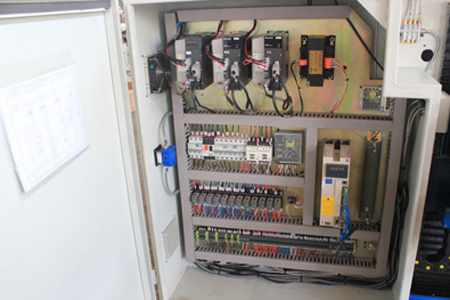

- Automatic oil lubrication, cooling system,Chip collector tray,CE Schneider Electric are standard.
| Standard Equipment | specification |
| Automatic oil lubrication | |
| CE Schneider Electric | |
| Electronic handwheel | |
| Horizontal Milling Arbors | ISO40-16mm、ISO40-22mm、ISO40-27、ISO40-32mm |
| Reducing sleeves | MT1、MT2、MT3 |
| Collet chuck with collets | 2,3,4,5,6,8,10,12mm |
| Draw bar | |
| Coolant system | |
| Chip collector tray | |
| Oscillation elements | |
| Outer arbor support for horizontal milling | |
| Work lamp | |
| Operating instructions |
