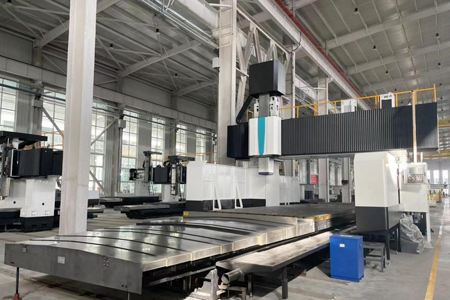

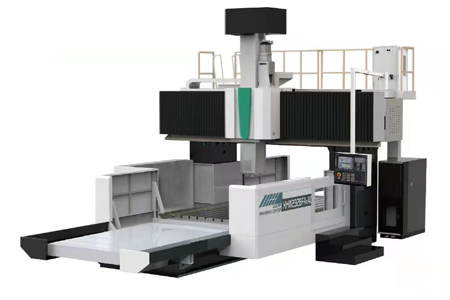

XKW2328FA*40 High speed 3 coordinate machining center CNC Gantry machining centre
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| ITEM | Description | Unit | Technical data | |
| Workbench | Dimensions (length X width ) | mm | 2300*4000 | |
| T-slot (size×quantity×spacing) | mm | 11*28*200 | ||
| Weight capacity | Ton | 18 | ||
| Gantry | Distance between two columns | mm | 2800 | |
| Distance from spindle end to worktable | mm | 250-1500 | ||
| Travel | X axis | mm | 4200 | |
| Y axis | mm | 3000 | ||
| Z axis | mm | 1000 | ||
| Fast Speed | X axis | m/min | 10 | |
| Y/Z axis | 10 | |||
| Spindle | Spindle rated power | Kw | 22/26 | |
| Spindle torque | Nm | 770/910 | ||
| Spindle speed | rpm | 10-6000 | ||
| Spindle taper | BT50 | |||
| Ram section size | mm | 400*400 | ||
| Precision | positioning （accuracyGB/T19362.1-200） | X | mm | 0.032 |
| Y | mm | 0.022 | ||
| Z | mm | 0.02 | ||
| Repeatability（GB/T19362.1-2003） | X/Y/Z | mm | 0.022/0.018/0.015 | |
| Others | Total capacity of machine tool power | KVA | 60 | |
| Machine weight (approximately) | T | 45 | ||
| Machine size (length X width X height) | mm | 13000*6500*6700 | ||
The machine tool is a complete brand new equipment produced by ANTSHICNC Co., Ltd. It has a highly rigid structural design, reliable accuracy, stability and retention, and complete matching. The component design adopts modularity, high degree of standardization, good interchangeability, stable quality, advanced machine tool design, reliable performance, easy operation and easy maintenance.At the same time, the machine tool is introduced by our company and digests and absorbs advanced European design and technology. The whole machine has a highly rigid frame structure design, so it not only has the ability to cut strongly, but also can meet the processing of precision parts.
| ITEM | Brand |
| Control system | Fanuc |
| Spindle | Taiwan |
| XYZ axis ballscrew | Taiwan |
| Bearing for XYZ axis ballscrew | NSK |
| AC servo motor for spindle | Fanuc |
| Driver for servo motor | Fanuc |
| XYZ servo motor | Fanuc |
| Spindle gear box | Germany ZF |
| XY axis roller linear guideway | Taiwan : 2-55# |
| Main electrical components | Siemens or Schneider |
