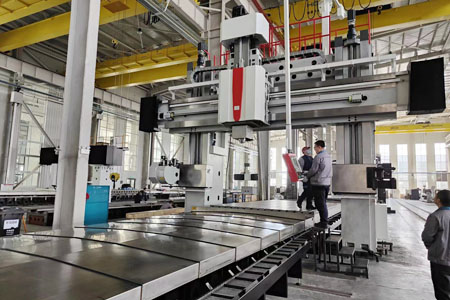

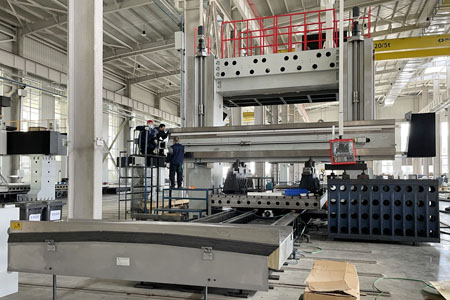

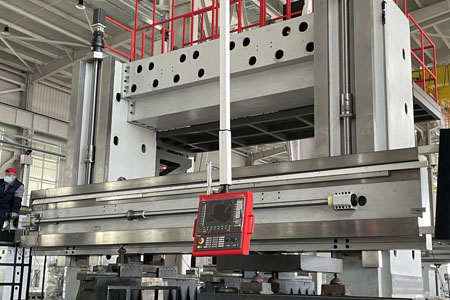

XKW2132*40 Gantry type beam movable milling machining centre
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| ITEM | Description | Unit | Technical data | |
| Workbench | Dimensions (length X width ) | mm | 2500*4000 | |
| T-slot (size×quantity×spacing) | mm | 12*28*200 | ||
| Weight capacity | Ton | 20 | ||
| Gantry | Distance between two columns | mm | 3200 | |
| Distance from spindle end to worktable | mm | 150-2150 | ||
| Travel | X/Y/Z axis axis | mm | 8300/3600/1000 | |
| W axis | mm | 1200mm | ||
| Fast Speed | X/Y/Z axis axis | m/min | 10/10/10 | |
| Spindle | Spindle rated power | Kw | 22/26 | |
| Vertical milling head rotation speed | rpm | 10-6000(6000rpm running shall be less than 2hours continuously) | ||
| Milling head spindle speed change automatic speed change ratio | Low speed:1:5.5
High speed:1:1 |
|||
| Spindle torque(continuously 30min) | Nm | 770/910 | ||
| Spindle speed | rpm | 10-6000 | ||
| Spindle taper | BT50 | |||
| Pull stud number | P50T-1-MAS403 | |||
| Ram section size | mm | 450*450 | ||
| Precision | positioning （Accuracy GB/T19362.1-200） | X/Y/Z | mm | 0.025/0.03/0.02 |
| Repeatability（GB/T19362.1-2003） | X/Y/Z | mm | 0.018/0.02/0.015 | |
| Others | Total capacity of machine tool power | KVA | 60 | |
| Machine weight (approximately) | T | 80 | ||
| Machine size (length X width X height) | mm | 12000*9700*8000 | ||
The machine tool is a complete brand new equipment produced by ANTSHICNC Co., Ltd. It has a highly rigid structural design, reliable accuracy, stability and retention, and complete matching. The component design adopts modularity, high degree of standardization, good interchangeability, stable quality, advanced machine tool design, reliable performance, easy operation and easy maintenance.At the same time, the machine tool is introduced by our company and digests and absorbs advanced European design and technology. The whole machine has a highly rigid frame structure design, so it not only has the ability to cut strongly, but also can meet the processing of precision parts.
| Item | Brand |
| Control system | Fanuc |
| Spindle | Taiwan Kenturn/CELLS |
| XYZ axis ballscrew | Taiwan |
| Bearing for XYZ axis ballscrew | Japan NSK |
| AC servo motor for spindle | Fanuc |
| Driver for servo motor | Fanuc |
| X/Y/Z servo motor | Fanuc |
| Spindle gear box | Germany ZF 2K250 |
| Roller linear guideway | Taiwan HIWIN/PMI : X:3-55# |
| Main electrical components | Siemens or Schneider |
