Radial Drilling Machine

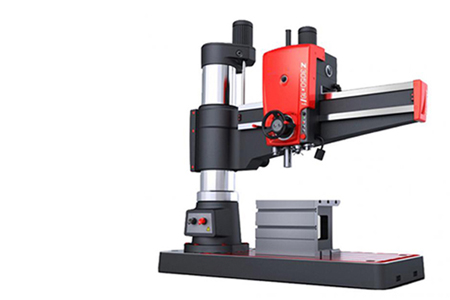

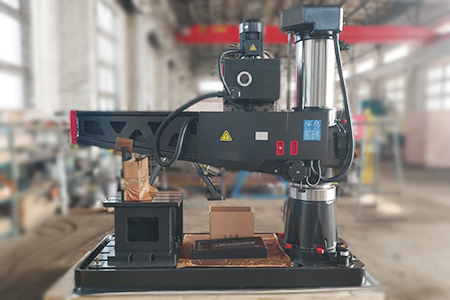

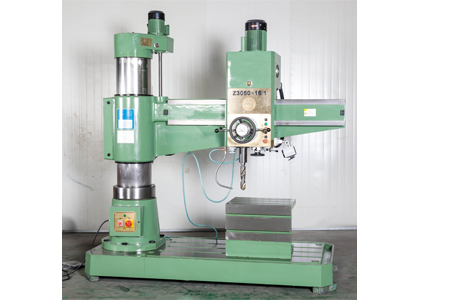

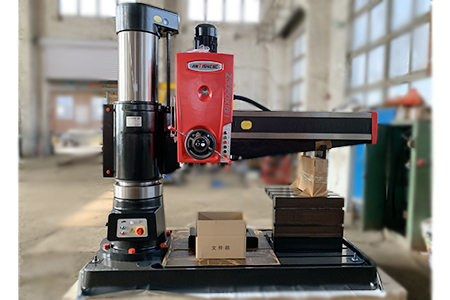

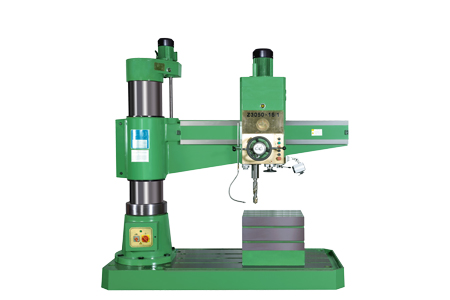

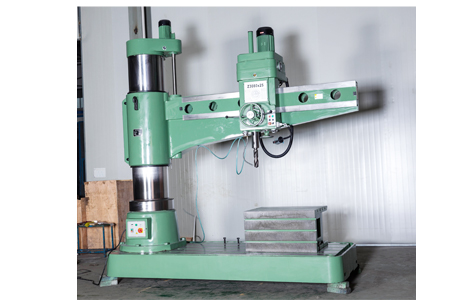

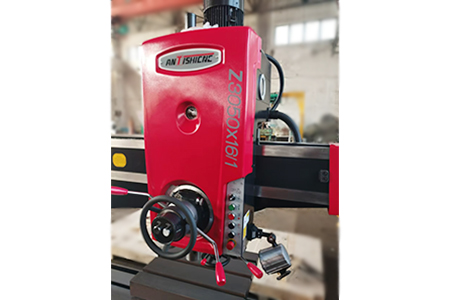

Z3050X12/1 Z3050X16/1 Radial Drilling Machine

Warranty : 1 Year for machinery warranty

Availability : On Stock

Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Product Description

The Z3050 radial drilling machine is a commonly used hydraulic radial drilling machine in China. The machine adopts casting technology and the casting material has good strength, which is better than the material of common machine tools. The hydraulic diamond clamping mechanism makes the clamping more stable. Z3050 radial drilling machine has a mature technology and has a high penetration rate in the domestic market. It has won praise from all users for its excellent processing characteristics. The 3050 hydraulic rocker drill is designed with hydraulic clamping, hydraulic variable speed, hydraulic pre-selection, mechanical and electrical double insurance. The rocker drill Z3050 runs stably, has high processing efficiency, high degree of automation, and greatly reduces labor intensity. The stroke of the Z3050 hydraulic radial drill spindle reaches (315mm), and the speed and feed range of the spindle is up to 16 levels. The price of the Z3050 hydraulic radial drill can be matched to an economical and ideal cutting speed according to the needs of production.

Z3050 hydraulic rocker drilling machine spindle is positive and negative, (parking) braking, speed change, neutral and other actions are controlled by a handle, which is quick and convenient to operate; rocker rail, outer column surface, spindle, spindle sleeve and internal and external rotation raceways are all The quenching treatment can maintain the overall stability and machining accuracy of the machine tool for a long time, and the service life of the machine tool can be guaranteed. The use of hydraulic preselected transmission mechanism saves auxiliary operation time. The radial drill Z3050 lengthens the production cycle during assembly, especially the running-in of the main shaft box gear and the outer column, so as to ensure a good position accuracy for each part of the machine tool. The design of machine tools incorporates new conceptual design concepts, the technological content of machine tools has been continuously strengthened, and product competitiveness has been enhanced. The 3050 hydraulic radial drilling machine is widely used in drilling, tapping, reaming, reaming and countersinking of large and medium-sized workpieces.

Product Features

● The guide rail, column and box of Z3050 radial drilling machine are made of high-strength cast iron. After the casting, the casting is heat treated to eliminate the internal stress of the casting. The casting that eliminates the internal stress after heat treatment can maintain the stability of the main body of the machine for a long time. The surface of the column and the guide rail are in contact with each other. The surface is quenched to maintain the hardness of the guide rail and the column, and the machine tool can maintain the accuracy and durability for a long time;

● The electrical and motor of the Z3050 radial drilling machine adopt the national standard regarding the electrical requirements of the machine tool. Under the control of the national standard electrical, the machine tool is more energy-efficient and safe to run for a longer time;

● The rotating gear of the main shaft box is precision ground and carburized and quenched. The gear box runs with low noise and good transmission force;

● Domestic Harbin bearings are selected for each rolling component bearing, and the whole machine tool can perform high-speed cutting;

● The main shaft box adopts the internal circulation lubrication of the automatic oil supply system, and the gears and bearings are fully lubricated, which solves the shortcomings of insufficient lubrication of the top gears of the traditional lubrication method;

● The main shaft is equipped with a travel protection switch, which solves the problem of damage to the main shaft or gear when the main shaft is fed to the top when the worker misuses or automatically feeds;

● Column safety locking device switch, general factory machine tools do not have this function, Shenyang Yiji Heavy Industry Radial Arm Drilling Machine has this function, if the worker forgets to loosen the locking device, the automatic lifting can automatically cut off the power, which can be well protected The column is strained and the turbine and worm screw slip;

● The lead screw is made by a brand manufacturer. The brand manufacturer does not directly process it with a round steel lathe, but strictly produces and processes the screw processing technology such as tempering and quenching. The screw produced by the special screw processing equipment is precisely processed by the grinding machine. Grinding, the service life is twice that of ordinary lead screws, and the nut is a brass nut, which has good wear resistance and good accuracy.

● The Z3050 radial drilling machine has undergone strict product quality accuracy screening from rough casting, parts procurement, and supplier selection. Each process has been strictly inspected to ensure the overall accuracy requirements of the machine when it leaves the factory.

Model Z3050X12/1 Z3050X16/1

Z3050X16/2



ZQ3050X20/1

ZQ3050X20/2

Max.drilling capacity

(mm)

50 50 50
Distance spindle axis

to column generating line

(mm)

350-1250 350-1600 350-2000
Diameter of column

(mm)

350 350 350
Spindle taper MT5 MT5 MT5
Spindle travel

(mm)

315 315 315
Spindle speeds range

(r/min)

25-2000 25-2000 25-2000
Spindle speeds series 16 16 16
Range of Spindle feeds

(mm/r)

0.04-3.2 0.04-3.2 0.04-3.2
Mpindle Spindle feeds 16 16 16
Distance spindle nose

to working surface of base

(mm)

350-1220 320-1220

320-1220

320-1220

320-1220

Dimension of worktable

(mm)

630X500X500 630X500X500 630X500X500
Dimension of base

(mm)

2050X1000X200 2400X1000X200 2400X1000X200
Overall size

(mm)

2150X1060X2650 2500X1060X2650 2900X1060X2650
Power of Main motor

(kw)

4 4 4
G.W/NW (kg) 3250/3000 3650/3400 3850/3550
Packing dimension (cm) 240X112X252 260X112X260 300X112X260
