Radial Drilling Machine

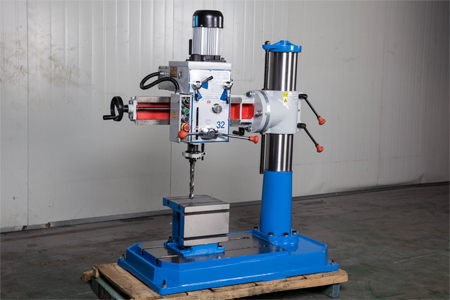

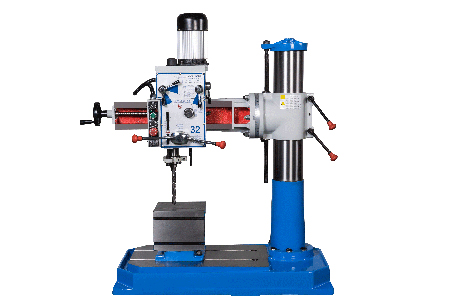

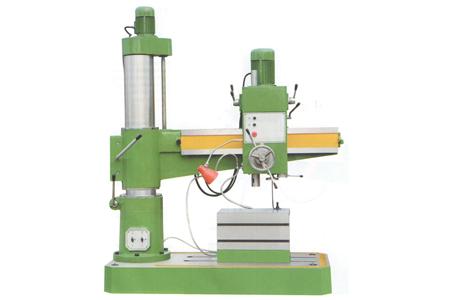

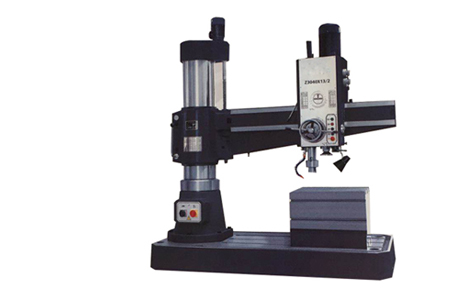

Z3032 Radial Drilling Machine

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Max.drilling diameter mm 32 32
Distance from spindle nose to table surface mm 300-700 200-910
Distance between spindle axis and column surface mm 275–680 330-1060
Spindle travel mm 130 120
Spindle taper MT3 MT4
Spindle speeds range rpm 100-1600 108-1000
Spindle speed steps mm/r 0.08- 0.23 0.10-0.25
Spindle feeding range 8 6
Spindle feeding steps
Rocker rotary angle degree  ±180°  ±180°
Main motor power kw 0.75/1.1 1.5/2.2
Lifting motor power kw 0.55
Machine Weight kg 415/385, 540/500 1150/1080
Machine Overall dimensions cm 126x65x139/133X75X149 1400x660x2060

Product Description

Z3032 radial drilling machine is a small multi-purpose mechanical radial drilling machine with flexible processing. The Z3032 radial drill has an automatic feed function, which can improve labor efficiency, reduce labor intensity, and improve product processing quality. Z3032 radial drill press has a larger outer diameter (200mm) than Z3032 radial drill. With increased clamping force, the cast iron drilling diameter is 35mm, and the steel is 26mm.

The Z3032 radial drilling machine is a universal machine tool with a wide range of uses, which can perform drilling, reaming, reaming, countersinking and tapping of parts. When the Z3032 radial drilling machine is equipped with process equipment, it can also be used for boring, and the universal worktable can also be used for drilling, reaming, and reaming on the drilling machine. Z3032 radial drilling machine is widely used in machinery manufacturing, mining accessories, locomotive manufacturing, instrumentation, hardware processing, medical equipment and other industries.

Product Features

● The guide rail, column and box of Z3032 radial drilling machine are made of high-strength cast iron. After the casting, the casting is heat treated to eliminate the internal stress of the casting. The casting to eliminate the internal stress after heat treatment can maintain the stability of the main body of the machine for a long time. The surface of the column and the guide are in contact with each other. The surface is quenched to maintain the hardness of the guide rail and the column, and the machine tool can maintain the accuracy and durability for a long time;

● The electrical and motor of the Z3032 radial drilling machine are selected according to the national standard regarding the electrical requirements of the machine tool. Under the control of the national standard electrical, the machine tool is more energy-saving and safe to run for a longer time;

● The rotating gear of the main shaft box is precision ground and carburized and quenched. The gear box runs with low noise and good transmission force;

● Domestic Harbin bearings are selected for each rolling component bearing, and the whole machine tool can perform high-speed cutting;

● The main shaft box adopts the internal circulation lubrication of the automatic oil supply system, and the gears and bearings are fully lubricated, which solves the shortcomings of insufficient lubrication of the top gears of the traditional lubrication method;

● The main shaft is equipped with a travel protection switch, which solves the problem of damage to the main shaft or gear when the main shaft is fed to the top when the worker misuses or automatically feeds;

● Column safety locking device switch, when workers forget to loosen the locking device, the automatic lifting can automatically cut off the power, which can well protect the column from being strained and the turbine and worm slipping;

● The lead screw is made by a brand manufacturer. The brand manufacturer does not directly process it with a round steel lathe, but strictly produces and processes the screw processing technology such as tempering and quenching. The screw produced by the special screw processing equipment is precisely processed by the grinding machine. Grinding, the service life is twice that of ordinary lead screws, and the nut is a brass nut, which has good wear resistance and good accuracy;

● The Z3032 radial drilling machine has undergone strict product quality accuracy screening from rough casting, parts procurement, and supplier selection. Each process has been strictly inspected to ensure the overall accuracy requirements of the machine tool when it leaves the factory.

Standard Equipments
Radial drilling machine
Reducer sleeve
3# 4# retracting wedge
Drill chuck
Unloader wrench
Anchor bolt
LED work lamp
Adjusting pad
Operation manual
Certificate of conformity
Packing list
