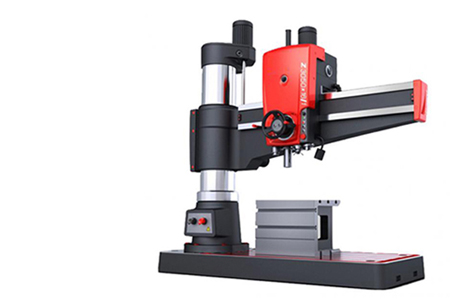

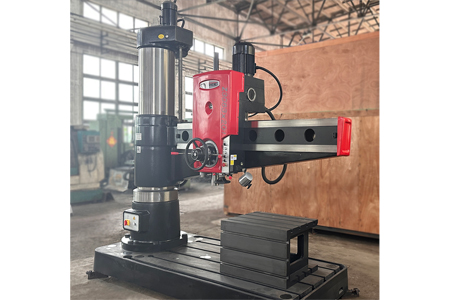

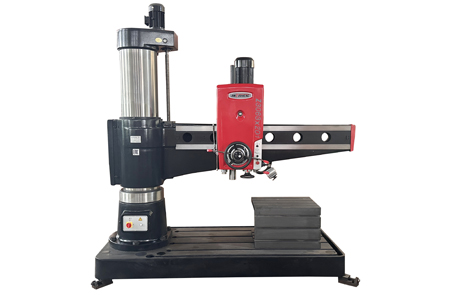

Z3063X20 radial drilling machine
Max drilling dia. : 63mm
Distance from spindle center to column: 450-2000mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model No | Z3063X20 | Z3080×25 |
| Max. drilling diameter | 63mm | 80mm |
| Distance from spindle center to column | 450-2000mm | 500-2500mm |
| Distance from spindle end face to base working face | 400-1600mm | 550-2000mm |
| Horizontal travelling distance of spindle box | 1550mm | 2000mm |
| Rocker lifting distance | 800mm | 1000mm |
| Rocker lift speed | 0.017m/s | 0.017m/s |
| Swingarm rotation angle | ±180° | ±180° |
| Spindle tapered bore | Morse 5. | Morse 6. |
| Spindle speed range | 20–1600r/min | 16-1250r/min |
| The number of spindle speed stages | 16Level | 16 Level |
| Spindle feed range | 0.04-3.2mm/r | 0.04-3.2mm/r |
| The number of spindle feed levels | 16Level | 16Level |
| Spindle travel | 400mm | 450mm |
| Drill depth per revolution of the dial | 151mm | 151mm |
| The spindle allows maximum torque | 980N.M | 1568N.M |
| The spindle allows for maximum feed resistance | 24500N | 35000N |
| Main motor power | 5.5KW | 7.5KW |
| Rocker lift motor power | 2.2kW | 3kW |
| Hydraulic clamping motor power | 0.75kW | 0.75kW |
| Cooling pump motor power | 0.125kW | 0.125kW |
| Overall dimensions(L*W*H) | 3080×1250×3205mm | 3803×1400×3790mm |
| Machine weight | 7000KG | 11000KG |
Resources & Downloads:
Z3063X20 radial drilling machine Product Introduction :
Product Description
The Z3063 hydraulic radial drilling machine is a hydraulic radial drilling machine. The spindle box, the rocker arm, and the inner and outer columns adopt a hydraulically driven diamond block clamping mechanism, which is reliable in clamping. The clamping mechanism of Z3063 radial drill press adopts domestic MJ-6/4A multifunctional relay control. The Z3063 radial drilling machine realizes hydraulic clamping, its stability is greatly improved, and its accuracy is also improved. The main shaft of the machine tool adopts hydraulic preselected speed change, the feed level of the main shaft reaches 16 levels, the main shaft speed range is wide, the feed adjustable range is large, and it can better adapt to the requirements of different processes, different materials, and different tools on the machine tool, and the overall machine tool Performance is improved. The rocker rail of the machine tool is widened, and the stability of the headstock is better in production. The Z3063 radial drilling machine product design is the first and unique application of the HZ4-22 travel switch, which better solves the control of the rising position of the rocker arm, and effectively protects the screw and turbine from the impact of the rocker arm ascending.

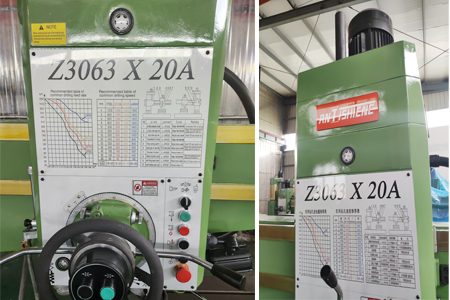

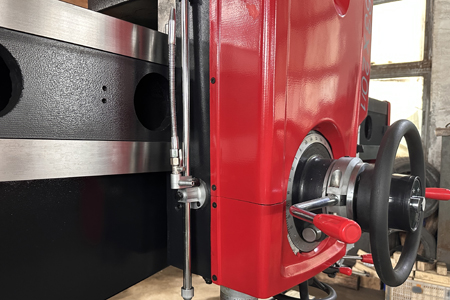

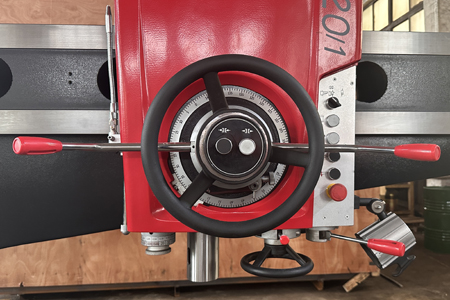

The Z3063 radial arm drilling machine spindle has a handle control for forward rotation, stop, and reverse rotation. The rising and falling of the machine tool rocker arm are controlled by buttons on the operation panel. The water pump is controlled by a black JYD11-25A power switch under the column. The switch is controlled by the red JYD11-25A power cut-off switch. There is a dial under the headstock, which can better control the longitudinal movement distance of the headstock. Z3063 hydraulic radial drilling machine is mainly used for processing larger workpieces and apertures. It can be used for drilling, tapping, expanding, reaming, and countersinking. It is widely used in railways, mining accessories, heavy machinery, engineering machinery, and road construction.
Product Features
● The guide rail, column and box of Z3063 radial drilling machine are made of high-strength cast iron. After casting, the casting is heat treated to eliminate the internal stress of the casting. The casting that eliminates the internal stress after heat treatment can maintain the stability of the main body of the machine for a long time. The surface of the column and the guide are in contact with each other. The surface is quenched to maintain the hardness of the guide rail and the column, and the machine tool can maintain the accuracy and durability for a long time;
● The electrical and motor of the Z3063 radial drilling machine adopt the national standard grade. Under the control of the national standard grade electrical, the machine tool is more energy-efficient and safe to run for a longer time;
● The rotating gear of the main shaft box is precision ground and carburized and quenched. The gear box runs with low noise and good transmission force;
● Domestic Harbin bearings are selected for each rolling component bearing, and the whole machine tool can perform high-speed cutting;
● The main shaft box adopts the internal circulation lubrication of the automatic oil supply system, and the gears and bearings are fully lubricated, which solves the shortcomings of insufficient lubrication of the top gears of the traditional lubrication method;
● The main shaft is equipped with a travel protection switch, which solves the problem of damage to the main shaft or gear when the main shaft is fed to the top when the worker misuses or automatically feeds;
● Column safety locking device switch, if the worker forgets to loosen the locking device, the automatic lifting can automatically cut off the power, which can be well protected The column is strained and the turbine and worm screw slip;
● The lead screw is made by a brand manufacturer. The brand manufacturer does not directly process it with a round steel lathe, but strictly produces and processes the screw processing technology such as tempering and quenching. The screw produced by the special screw processing equipment is precisely processed by the grinding machine. Grinding, the service life is twice that of ordinary lead screws, and the nut is a brass nut, which has good wear resistance and good accuracy;
● The Z3063 radial drilling machine has undergone strict product quality accuracy screening from rough casting, parts procurement, and supplier selection. Each process has been strictly inspected to ensure the overall accuracy requirements of the machine tool when it leaves the factory.
Standard Equipments
Radial drilling machine
Reducer sleeve
3# 4# retracting wedge
Drill chuck
Workbench
Unloader wrench
Anchor bolt
LED work lamp
Adjusting pad
Operation manual
Certificate of conformity
Packing list
