Vertical Drilling Machine

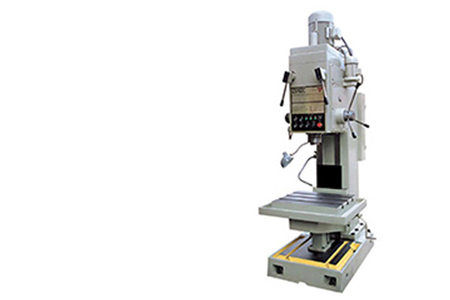

Z5163 5180 vertical drilling machine

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Drilling machine model Z5163C Z5180C
Maximum drilling diameter (mm) 63 80
Maximum feed resistance of spindle (N) 30000 30000
Spindle torque (N.m) 800 800
Main motor power (kw) 5.5 5.5
Taper of main cone (NO) 5 6
Spindle speed (r.p.m) 20-570(9 pole) 20-570(9 pole)
Spindle feed per revolution (mm/rev) 0.11 -0.78(6 pole) 0.11 -0.78(6 pole)
Spindle stroke (mm) 250 250
Spindle box stroke (mm) 250 250
Spindle span (mm) 375 375
Workbench stroke (manual) (mm) 300 300
Distance from spindle end to worktable (mm) 50-850 50-850
Work table size (mm) 650×550 650×550
Machine weight (kg) 2500/2800 2500/2800
Outline dimension (mm) 986×147×280 986×147×280
Package size (mm) 1710×1130×2920 1710×1130×2920

Product Description

The Z5163 vertical drilling machine is a square column vertical drilling machine. The Z5163 vertical drilling machine has the characteristics of stable structure and convenient installation. A series of design concepts such as the design structure of the Z5163 vertical drilling machine and the power of the high-power spindle motor determine that this type of drilling machine can perform high-intensity drilling operations. The Z5163/Z5180 vertical drilling machine has a wide range of variable speeds, a large number of feed stages, and a large range from the spindle end to the worktable surface. It can adapt to the production and processing of different workpieces, different materials, and different processing tools. The Z5163 vertical drilling machine can meet the needs of various processes such as drilling, tapping, expanding, reaming, countersinking, etc. It can be used for special machine production and processing needs through the installation of special fixtures and tools.

Product Features

● The high-power spindle motor, the spindle taper is Morse 4, the spindle power is good, the torque is large, and the large-aperture drilling is guaranteed;

● The bed is cast with resin sand mold, and the basic materials are good, ensuring the long-term stability and durability of the machine tool;

● The main body of the machine tool is heat-treated to eliminate internal stress, and the precision of the guide rail surface ultrasonic quenching is good;

● Spindle speed change, wide feed speed range, suitable for processing and production of multi-workpiece material cutting tools;

● The supporting parts of the machine tool are selected from domestic brand manufacturers, and the good basic parts ensure the long-term precision operation of the machine tool;

● The overall design of the operating handle of the machine tool combines ergonomics, convenient operation, low labor intensity, and high efficiency;

● Wide range of processing materials, multi-process processing and production such as drilling, tapping, reaming, expansion and countersinking can be carried out;

● The main shaft adopts the turbine coupling to ensure the resistance, the main shaft resistance exceeds 2000kg, and the coupling slips to ensure the stable operation of the main shaft.
