    • Z50 series pillar type vertical drilling machine

    Warranty : 1 Year for machinery warranty

    Availability : On Stock

    WhatsApp : +86-19534031668
    Wechat : +86-19534031668
    Email : contact@antsmachine.com
    (your request will be responsed within 1 hour.)

    Technical Parameter :

    Technical Specifications | Model Units Z5025 Z5030 Z5035 Z5040 Z5050
    Max. Drilling capacity mm 25 30 35 40 50
    Diameter of column mm 100 120 140 160 180
    Spindle travel mm 150 135 160 180 240
    Spindle axis to column surface distance mm 225 320 330 360 360
    Max. spindle nose to table mm 630 550 590 590 570
    Max. spindle nose to base mm 1670 1100 1180 1180 1160
    Spindle taper MT MT3 MT3 MT4 MT4 MT4 or MT5
    Spindle speed range r/min 100-2900 65-2600 75-2500 42-2050 42-2050
    Spindle speed steps 8 12 12 12 12
    Spindle feed range mm/r 0.07–0.40 0.1–0.3 0.1–0.3 0.07–0.40 0.07–0.40
     Worktable surface dimension mm 440 500×440 500×440 550×470 550×470
    Table travel mm 560 490 550 550 550
    Dimension of base table mm 690×500 400×390 400×390 450×440 450×440
    Overall height mm 1900 2050 2300 2330 2380
    Spindle motor power kw 0.75/1.1 0.85/1.1 1.5/2.2 2.2/2.8 2.2/2.8
    Coolant motor w 40 40 40 40 40
    G.W/N.W kg 300/290 495/450 595/545 815/755 930/830
    Packing dimension cm 70x56x182 108x62x215 108x62x220 108x62x245 108x62x245

    Product Description

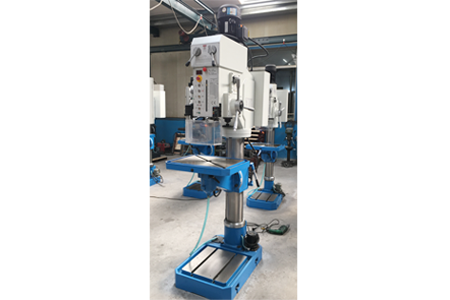

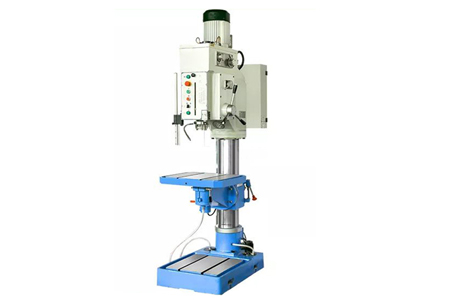

    Z50 series pillar type vertical drilling machine tools are novel in design, beautiful in appearance, compact in structure and wide in speed change range.

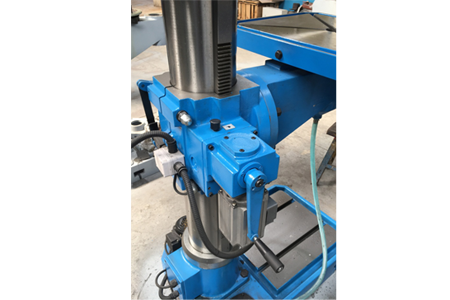

    The worktable can be rotated +180° or tilted +45°, and has a wide range of use. Equipped with cooling device and tapping device. The electrical system implements the IEC electrical standard, has short-circuit and overload protection functions, and the main motor has a large power. Unique protective device, safe and reliable. Suitable for drilling, reaming, reaming, tapping, plane scraping and other processing. It is an ideal machine tool for single piece and mass production.

    Product Features
    The main performance characteristics：
    1.Change speed with gears and operate easily ,
    2.High spindle speed and wide speed range,
    3.Charcteristic auto tool releasing device guarantees it is very easy to change tool ,
    4.Equipped with coolant system and work lamp.

    Application：
    Ideal choice for single piece and small batch production mass, production for drilling ,counter boring, tapping screws, spot facing machining, etc.

    Standard Equipment
    1.Drill chuck
    2.Taper shank adapter
    3. Wedge for taper shank tool
    4. Lower cutter iron
    5. Wrench

    Optional Equipment
    Angled pliers
    Eye shield
