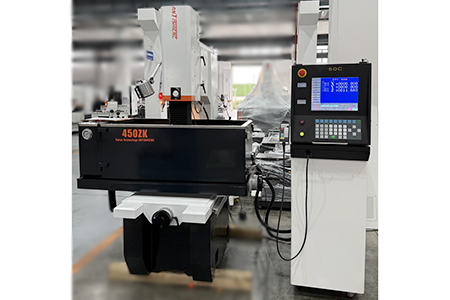

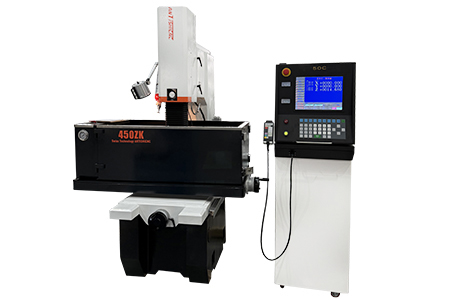

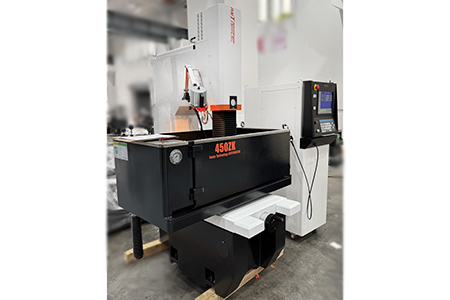

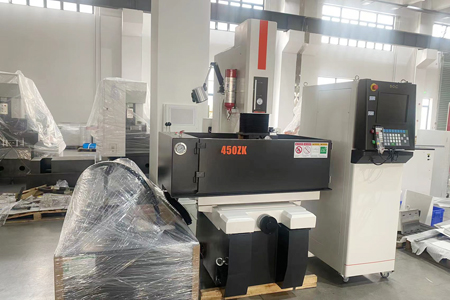

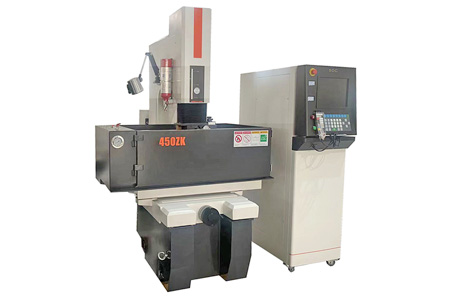

ZK Series Die Sinker EDM Machine (Premium type)
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical parameter | 350ZK | 450ZK | 650ZK | |
| Worktable size (mm) | 600*320mm | 700*400mm | 1000*600mm | |
| Work slot inner size (mm) | 920*570*350(mm) | 1080×660×400(mm) | 1720*1000*620(mm) | |
| X-axis travel (mm) | 350mm | 450mm | 650mm | |
| Y-axis travel (mm) | 220mm | 350mm | 550mm | |
| Z-axis travel (mm) | Main axis travel | 200mm | 200mm | 400mm |
| Auxiliary axis travel | 250mm | 250mm | 300mm | |
| Maximum distance between spindle and worktable (mm) | 570mm | 680mm | 900mm | |
| Maximum electrode weight (kg) | 50kg | 60kg | 2500kg | |
| Maximum working weight (kg) | 500kg | 800kg | 200kg | |
| Maximum machining current | 50A | 50A | 50A | |
| Minimum electrode consumption ratio | ≤0.1% | ≤0.1% | ≤0.1% | |
| Best surface finish(um) | Ra≤0.2mm | Ra≤0.6mm | Ra≤0.8mm | |
| Packing Box size (mm) | 1350*1300*2200mm | 2200*2200*2500 | 4600*3200*2700mm | |
| EDM Machine weight (kg) | 1350kg | 1750kg | 3500kg | |
Features
The design idea of the power supply is an electric spark discharge power supply with high configuration, high reliability and comprehensive processing index.
Configuration of key components
1. The key components of the power control part are all foreign brand products.
2. The computer adopts imported components from Taiwan.
3. The electronic ruler adopts Taiwan brand products.
4. Contactors and electric meters are all imported products.
5. The original integrated circuits of TI, IR, Toshiba, Hitachi and other world-class manufacturers are first-class in the same industry in terms of precision and quality. Fully guarantee your long-term interests.
Standard Equipment
EDM machine

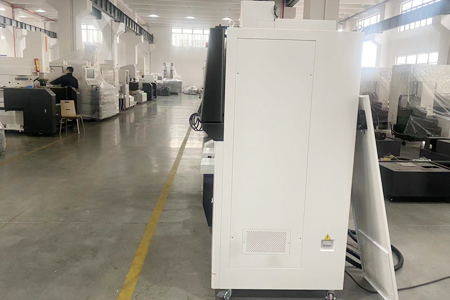

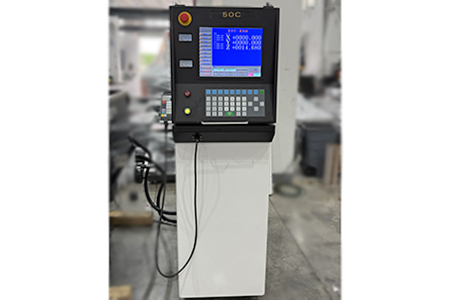

CNC power control cabinet
Tank
Packing Technical Documentation
Toolbox
