AL5 Twin type Inverted Vertical CNC Lathe
Max. swing over bed dia. : Ø350 mm
Max. machining dia. : Ø200 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Item | Specification | Unit |
| Machining capacity | ||
| Max. swing over bed diameter | Ø350 | mm |
| Max. machining diameter | Ø200 | mm |
| Max. machining length | 200 | mm |
| Main Spindle | ||
| Max. Spindle speed | 4000 | r/min |
| Throuth hole diameter | 56 | mm |
| Spindle nose | A2-6 | |
| Main motor power | 22 | KW |
| Spindle speed range | 0-4000 | r/min |
| Main motor rated speed | 2000 | r/min |
| Rated spindle torque | 105 | N.m |
| Transmission mode | Electric spindle | |
| X/Z-Axis | ||
| X/Z-axis travel | 590/250 | mm |
| X/Z -axis rapid traverse | 15-20 | m/min |
| X/Z -axis motor power | 3.1/4.3 | kw |
| X/Z -axis spindle torque | 20/27 | N.m |
| Tool | ||
| Tool quantities | ||
| Square Knife Specifications | 25*25 | mm |
| Circular knife specification | Ø40 | |
| Machining accuracy | ||
| Spindle run out | 0.005 | mm |
| Grating absolute measurement resolution | 0.001 | mm |
| Repeat positioning accuracy | 0.003 | mm |
| Others | ||
| Coolant motor power | 1.5 | kw |
| Hydraulic station power | 1.5 | kw |
| Machine maximum power | 70 | kw |
| Machine weight | 6 | T/set |
Products Introduction

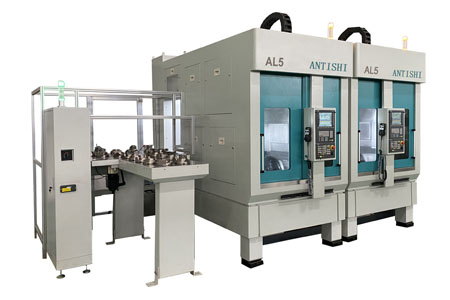

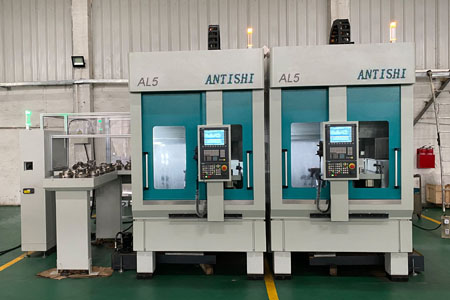

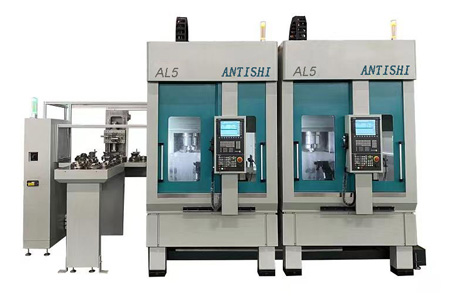

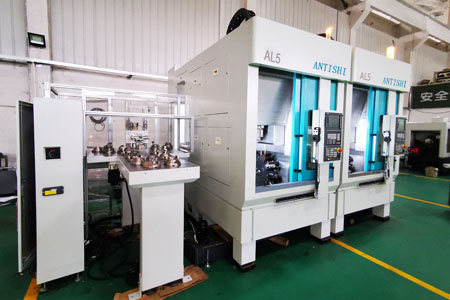

AL5 twin type inverted vertical CNC lathe adopts the loading and unloading of the spindle as an integral part of the z-direction carriage to take and place the workpiece. It can process workpieces with a maximum diameter of 300 mm. The short stroke and compact design realize extremely short clamping and beat time. In this way, it can ensure that the inverted lathe has high flexibility in processing frequently changing batch sizes and part modifications, and can produce automatically without manipulator.
1. Short stroke and high processing efficiency.
2. The inverted turning center has compact structure and minimal site demand.
3. Automatic workpiece conveying system: the machine tool can load and unload materials by itself through the spindle; Including automatic loading and unloading of blank parts and finished parts.
4. 12 bit turret (can be equipped with power turret) has short rotation time.
5. The processed parts can go in and out freely, which is convenient for the spindle to grasp the loading and unloading.
6. The machine bed is made of mineral castings to ensure stability and vibration damping performance.
7. Vertical processing mode can ensure convenient chip removal.
8. After the y-axis is assembled in the turret, the machine tool can process complex parts.
9. According to the needs of parts, multiple on-line machining can be carried out.
