VW24T CNC Vertical lathe
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| project | unit | specifications | |
| capacity | Max. roating diameter | mm(in) | Φ870(34.25) |
| Appron roating diameter | mm(in) | Φ700(27.56) | |
| Max. working length | mm(in) | 450(17.7) | |
| Max. diameter of wheel hub | Inch | 26″（610mm） | |
| Max. height of wheel hub | Inch | 14″（356mm） | |
| principle axis | Hydraulic chuck diameter | Inch | Zhong shi 21″
（select configuration） |
| Mode of spindle head | A2-11 | ||
| Diameter of spindle bearing | mm(in) | 180/160（front /back） | |
| Spindle speed | rpm(rpm) | 20-2000 | |
| Spindle power | Kw(hp) | 45/55(33/40.5) | |
| apron | route（X1X2/Z1Z2） | mm(in) | 520/550(20.47/21.65) |
| Rapid speed（X1X2/Z1Z2） | m/min(ipm) | 24/24(945/945) | |
| servo motor（X1X2/Z1Z2） | α30i/α30i | ||
| Servo motor torsion feed system（X1X2/Z1Z2） | N m(ft-lb) | 30/30(40.65/40.65) | |
| Servo motor power（X1X2/Z1Z2） | kW(hp) | 7/7(5.14/5.14) | |
| Ball screw diameter guide
（X1X2/Z1Z2） |
mm(in) | Φ50×8/Φ50×8
(2 x0.315/2 x0.315) |
|
| tool rest | stations | .
Horizontal 6 station servo. |
|
| Tool size (turning/boring) | mm(in) | 32×32/Φ50(1.25X1.25/2) | |
| others | power | kVA | 85 |
| Volumn ((L×W×H)) | mm(in) | 3400X4700X3365
(133.86X185.047X132.48) |
|
| Main machine net weight/total weight
· · |
Kg(lbs) | about16000/17000(about 35208/37485) |
Introduction

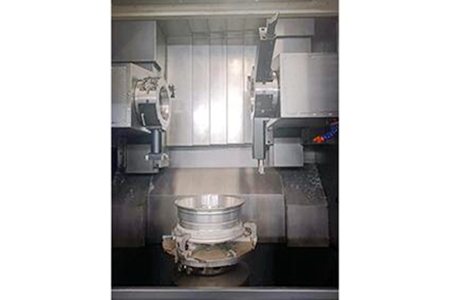

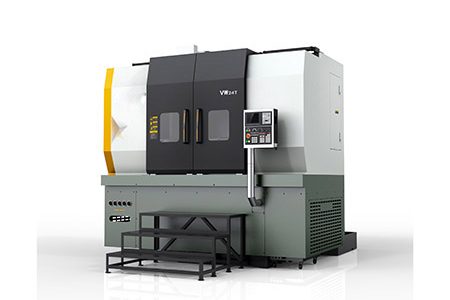

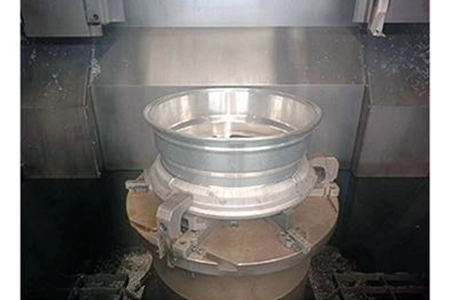

VW24T dual-turret vertical CNC lathe is designed for machining hubs of automotive industry. It has single spindle but dual-turret, controlling by dual-channel NC unit, two 6-stationservo turret can feed separately and do cutting on internal and external surface of hubs. One control with two feeding system ensure high efficiency machining and small working space occupation.
Features:
1. vertical structure, smoothchip removal, easy clamping operation.
2. high strength castingbase and column, well shock-absorbing.
3. the spindle with sleevestructure which is symmetrical and suspension type, low speed spindle but hightorque motor. With imported high quality grease for spindle lubrication, wholesealing, maintenance free.
4. with 6-station servoturret, movable, easy-cleaning separated type coolant tank.
5. full cover safety doorsto prevent chips splashing.
6. all mearing units areaccording to the international system (SI).
