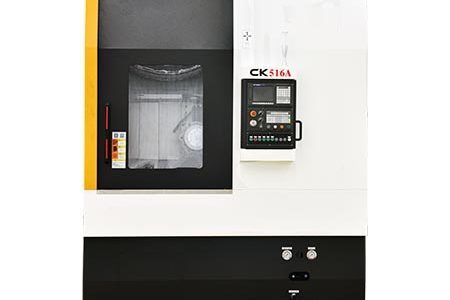

CK516 vertical CNC lathe
Max swing dia.: Φ850(33.46)
Max turning dia.: Φ750(29.53) mm(in)
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Item | Unit | CK516 | CK516A(FANUC 0i-mate) | ||
| Capacity | Max swing | mm（in） | Φ850(33.46) | Φ850(33.46) | |
| Max turning dia. | mm（in） | Φ750(29.53) | Φ750(29.53) | ||
| Max turning dia. over slide | mm（in） | Φ630(24.80) | Φ630(24.80) | ||
| Max turning height | mm（in） | 600(23.62) | 600(23.62) | ||
| Spindle | Hydraulic chuck dia. | mm（in） | 18″ | 18″ | |
| Spindle nose | A2-11 | A2-11 | |||
| Spindle bearing dia. | mm | 180/160（ front/rear ） | 180/160（ front/rear ） | ||
| Spindle speed | rpm | 10-1600 | 30-150 | 50-1200 | |
| Spindle | Spindle motor | α22/7000i | Motor(standard equipment） | MK Motor
(Optional） |
|
| Spindle power | Kw (hp) | 22/26 (29.92/35.36) | 15 (20.4) | 30/37 (40.8/50.3) | |
| Max spindle torque | Nm (ft-lb) | 1192 (1615) | 950 (1287) | 1062 (1439) | |
| Carriage | X/Z-axis travel | Mm （in） | 640/650 (25.20/25.59) | 640/650 (25.20/25.59) | |
| X/Z-axis rapid traverse | m/min(ipm | 14/14(551/551) | 14/14(551/551) | ||
| X/Z-axis servo motor | α22i/α22i | α22i/α22i | |||
| X/Z-axis servo motor movement | Nm (ft-lb) | 22/22 (29.8/29.8) | 22/22 (29.8/29.8) | ||
| X/Z-axis motor power | Kw(hp) | 4.0/4.0 (5.44/5.44) | 4.0/4.0 (5.44/5.44) | ||
| X/Z-axis ball screw dia./lead | Mm （in） | Φ50X10/Φ50X10 (Φ2X0.394/Φ2X0.394) | Φ50X10/Φ50X10 (Φ2X0.394/Φ2X0.394) | ||
| X/Z-axis linear way width | Mm （in） | 45/55 (1.77/2.16) | 45/55 (1.77/2.16) | ||
| Turret | Number of station | Vertical 6-station | Vertical 6-station | ||
| Tool section (turning/boring) | mm | 32X32/Φ12～Φ50 | 32X32/Φ12～Φ50 | ||
| Others | Power source | kVA | 45 | 45 | |
| Dimension (L×W×H) | Mm(in) | 2500X2600X3400 (98.4 X102.4 X133.9) | 2500X2600X3400 (98.4 X102.4 X133.9) | ||
| Weight | Kg(lbs) | 10000(22005) | 10000(22005) | ||
Features:
1.high efficient vertical CNC lathe for big and middle size workpieces.
2.high strength casting machine base and column, good shock-absorbing and stableaccuracy.
3.vertical structure, smooth chip removal, easy workpiece clamping.
4.movable, easy cleaning separated coolant tank.
5.high accurate and rigid sleeve type spindle which is easy for maintenance.
6.Spindle sleeve with symmetrical and suspension design which can reduce theaffection of heating distortion on accuracy.
7.powerful AC motor on spindle and ZF speed reducer can output high torque andhigh speed running for different machining requirements.
8.spindle with imported high grade grease, whole sealing, maintenance free.
9.with heavy duty linear guideways on carriage and column.
10.with vertical 6-station servo turret.
