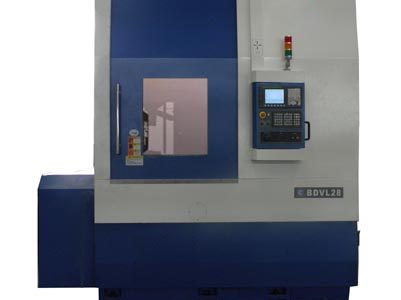

BDVL28 vertical CNC lathe
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Description | Unit | Specification | |
| Capacity | Max. swing dia. | mm
(in) |
Φ800
(31.5) |
| Max. turning dia. | mm
(in) |
Φ800
(31.5) |
|
| Max. turning height | mm
(in) |
650
(25.59) |
|
| Spindle | Hydraulic chuck dia. | mm
(in) |
Solid 21″ |
| Spindle nose | A2-11 | ||
| Spindle bearing dia. | mm
(in) |
180/160 (front/rear)
(7.08/6.29) |
|
| Spindle speed | r/min
(rpm) |
200-1600 | |
| Power of main motor | kW
(hp) |
37/45
(50.32/61.2) |
|
| Max. spindle torque | Nm
(ft-lb) |
515
(697.8) |
|
| Carriage | Travel (X/Z) | mm
(in) |
650/650
(25.59/25.59) |
| Rapid traverse (X/Z) | m/min
(ipm) |
14/14
(551.18/551.18) |
|
| Servo motor (X/Z) | β22i/β22i | ||
| Torque of servo motor (X/Z) | Nm
(ft-lb) |
22/22
(29.8/29.8) |
|
| Power of servo motor (X/Z) | kW
(hp) |
4.0/4.0
(5.44/5.44) |
|
| Dia. & lead of ball screw (X/Z) | mm
(in) |
Φ50X10/Φ50X10
(Φ1.97X0.39/Φ1.97X0.39) |
|
| Width of linear guideway (X/Z) | mm
(in) |
45/55
(1.77/2.17) |
|
| Turret | Number of stations | Vertical 6-station | |
| Tool section (turning/boring) | mm | 32X32/Φ12～Φ50 | |
| Others | Power source | kVA | 50 |
| Dimension (L×W×H) | mm
(in) |
3352X2870X3195
(131.97X112.99X125.79) |
|
| Weight | Kg
(lbs) |
13500
(29767.5) |
|
Introduction
BDVL28 vertical CNC lathe is for machining aluminum alloy hubs for auto, motorcycle industries.
Features:
1. whole piece rigid casting machine base.
2. spindle sleeve is symmetrical,suspension design to reduce the influence of thermal deformation.
3. Taiwan made 6-station servo turret.
4. powerful coolant system to reduce themachining heating.
5. large slope in machine base, chain typechip removal and splash system, suitable for large quantity chips producedduring husb machining.
6. full safe guard to prevent chips out.
