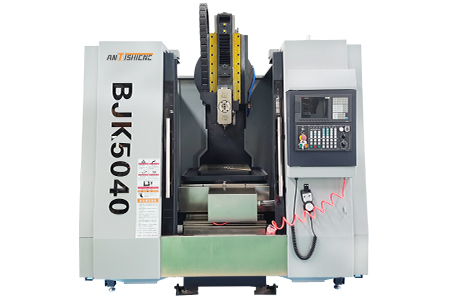

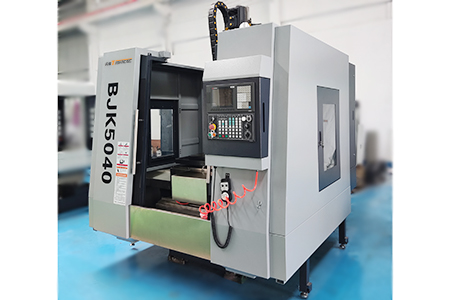

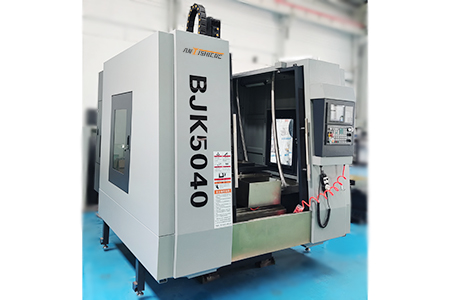

BJK5040 CNC slotting machine
Maximum insert length of ram: 400mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | BJK5040 |
| Maximum insert length of ram | 400mm |
| Ram adjustment stroke | 300mm |
| Number of ram movement | 20-70n/min |
| worktable size | 500*500mm |
| worktable travel | 370*540mm |
| The distance between the axis of the tool head supporting hole and the forearm of the column | 823mm |
| Distance from lower end face of slide frame to table | 660mm |
| X motor torque | 10(N.M) |
| Y motor torque | 15(N.M) |
| Fast movement(X) | 5(m/min) |
| Fast movement(Y) | 5(m/min) |
| Ball screw (X) | FFZD4010-5/P3 |
| Ball crew(Y) | FFZD4010-5/P3 |
| Main motor power | 5.5kw |
| Machine weight(approx) | 5200kg |
| Package size | 2750/2450/2750mm |
BJK5040 CNC slotting machine Product Introduction :
Youtube Channel : Antishicnc Machine
