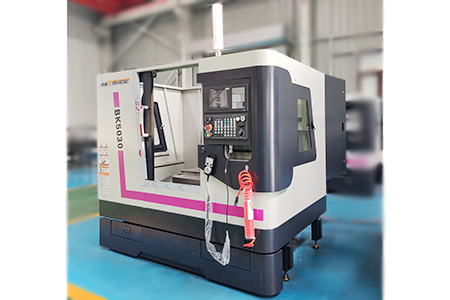

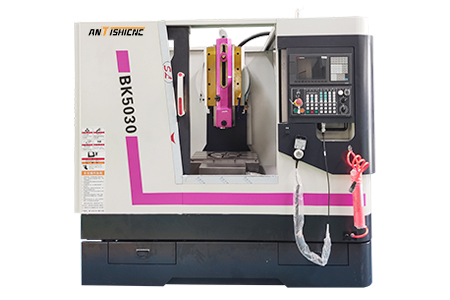

BK5030 CNC slotting machine
Maximum insert length of ram:300mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | BK5030 |
| Maximum insert length of ram | 300mm |
| Ram adjustment stroke | 260mm |
| Number of ram movement | 30-120n/min |
| worktable size | 550*410mm |
| worktable travel | 250*300mm |
| The distance between the axis of the tool head supporting hole and the forearm of the column | 505mm |
| Distance from lower end face of slide frame to table | 540(max.690)mm |
| X motor torque | 6(N.M) |
| Y motor torque | 6(N.M) |
| Fast movement(X) | 5(m/min) |
| Fast movement(Y) | 5(m/min) |
| Ball screw (X) | FFZD3205-3/P4 |
| Ball crew(Y) | FFZD3205-3/P4 |
| Main motor power | 3.7kw |
| Machine weight(approx) | 2800kg |
| Package size | 2300/2200/2300mm |
BK5030 CNC slotting machine Product Introduction :
Keyway Cutting – Precision machining of internal and external keyways in shafts, gears, and pulleys.
Spline Machining – Producing straight or helical splines for power transmission components.
Internal Grooving – Creating slots, grooves, and channels inside workpieces with high accuracy.
Die & Mold Making – Machining slots and contours in dies, molds, and tooling components.
Gear Manufacturing – Cutting gear slots, racks, and other toothed profiles.
Aerospace & Automotive Parts – Precision slotting for turbine discs, engine components, and transmission parts.
General Machining – Versatile for milling, shaping, and slotting in various metals and alloys.
Custom Fabrication – Ideal for specialized industrial parts requiring complex slot geometries.
