Internal grinding machine

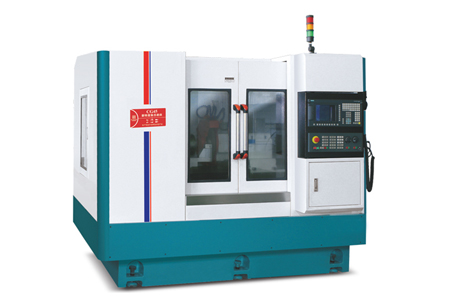

CG45 High precision internal & external compound grinding machine

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email :
(your request will be responsed within 1 hour.)

Technical Parameter :

ITEM UNIT Machine model:CG45
Processing capability Maximum grinding diameter mm Φ400
Grinding outer diameter length mm 200
Outer wheel size mm Φ405*32-60*127
Grinding inner diameter range mm Φ6-200
Depth of grinding inner diameter mm 200
Maximum length of work piece mm 260
Spindle speed of inner hole grinding wheel rpm 20000/40000

(Electric Spindle)

Wheel dressing mm Automatic
CNC system Set SIEMENS
Height of grinding wheel spindle center to ground mm 1150
Work Head Spindle speed rpm 0-1000
X axis fastest feed speed mm/min 10000
X axis minimum feed unit mm 0.001
Working head rotation angle Deg +15~-5(manual)
Workbench Z axis fast moving speed mm/min 18000
Z axis minimum feed mm 0.001
Maximum travel stroke mm 250
Motor External wheel spindle motor KW 3.75
Internal spindle motor KW 3.0
X axis feed motor (servo) KW 1.5
Z axis feed motor (servo) KW 1.5
Headstock spindle motor KW 1.2
Cooling water pump motor KW 0.37
Lubricating oil motor KW 0.25*2
Others Coolant tank capacity L 200
Machine weight Kg 6500
Equipment size (length * width * height) mm 2300*2200*2000

Comprehensive Features

● It can grind outside-diameter and internal part with one time clamping. Provides a complex solution for high-precision grinding of small and medium-sized workpieces.

● Machine tool industry, automotive engineering, tool and mold industry, aerospace industry, pneumatic / hydraulic, electronic /

● Modular design, you can choose different grinding wheel spindle combination to fully meet the processing all the requirements.

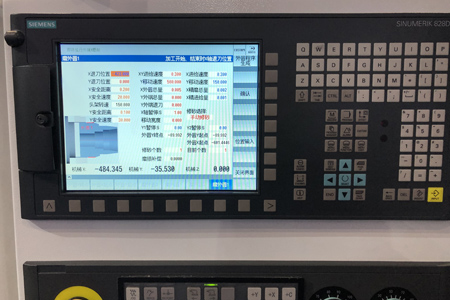

●The control system interface makes the operation and programming system very simple and easy to learn. The programming software directly programs the workpiece grinding and grinding wheel on the machine control system, it can also be programmed on an external computer.

● It can be equipped with automatic load and unload system to meet the needs of industrialized mass production.

Create A New Revolution In The Grinding Of Compound Grinding Machines!

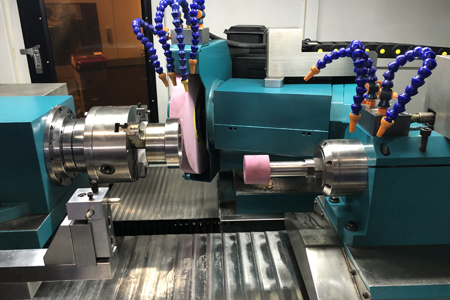

It can realize one-time clamping and carry out compound grinding of inner circle, inner cone, outer circle, outer cone and end surface

1.Bevel outer cylindrical grinding wheel +inner hole grinding wheel

2.Double outer grinding wheel

3.Double internal grinding wheel

4.lanting outer cylindrical grinding wheel +inner hole grinding wheel

Optional Equipment

NO. ITEM Origin Brand QTY
1 Outer diameter automatic online measuring instrument Italy Marposs P1DME 1Set
2 End face automatic online measuring instrument Italy Marposs T18 1Set
3 6/8 inch hydraulic three-jaw chuck Taiwan, China QIANDAO 1Set
4 Oil mist collector China JD-7N 1Set
5 Iron filings + paper belt filter China Four Stars 1Set
