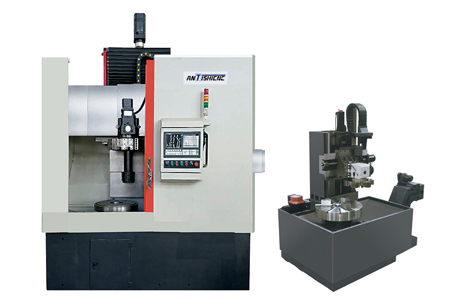

CGK51 series high-speed numerical control vertical lathe
Max turning dia. : 1250mm
Max workpiece height : 900mm
Max workpiece weight : 1t
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
|
Specification |
Unit |
CGK516 |
CGK518 |
CGK5110 |
CGK5112 |
|
Maximum turning diameter |
mm |
630 |
800 |
1000 |
1250 |
|
Diameter ofhydraulic chuck |
mm |
500 |
630 |
800 |
1000 |
|
Maximum workpiece height |
mm |
600 |
650 |
800 |
900 |
|
Maximum workpiece weight |
t |
0.5 |
0.5 |
0.8 |
1 |
|
Maximum diameter of revolution |
mm |
700 |
900 |
1100 |
1350 |
|
Working table speed range |
r/min |
10-800 |
10-600 |
10-500 |
10-400 |
|
Maximum Torque of table |
KN.m |
8 |
8 |
14 |
14 |
|
Maximum cutting force of tool rest |
KN |
20 |
25 |
28 |
22 |
|
Range of tool carrier step (stepless) |
mmAnin |
0.1-500 |
0.1-500 |
0.1-500 |
0.1-500 |
|
Horizontal travel of raihead |
mm |
-50-500 |
-50-600 |
-50-750 |
-50-870 |
|
Ram travel with vertical tool rest |
mm |
600 |
600 |
700 |
700 |
|
Fast moving speed of tool rest |
mm/min |
2800 |
2800 |
2800 |
2800 |
|
Fast moving speed ofX axis |
N.m |
15 |
15 |
18 |
18 |
|
Fast moving speed of Z axis |
N.m |
18 |
18 |
22 |
22 |
|
Tool holder form |
|
Vertical Electric Knife Table/Horizontal Electric Knife Table |
|||
|
Power of main motor |
KW |
18.5 |
18.5 |
22 |
22 |
|
Overall dimensions(L x W x H) |
mm |
2700x2450x2800 |
2850x2600x2800 |
3200x3350x3200 |
3800x3350x3570 |
|
Weight of machine |
t |
8 |
9 |
10.5 |
11 |
The machine tool is suitable for high speed steel and carbide cutting tools, processing black metal, non-ferrous metal and some non-metallic parts of the inner and outer circle, cone, end face, grooving. The product is our company absorbs the current advanced design and manufacturing technology, adopts CAD optimization design, implements the latest national standards, and is equipped with advanced functional components at home and abroad, with easy operation, low failure rate, high processing efficiency, long service life and other characteristics. Is the machine, electricity, hydraulic integration of high-tech products. With special tools, especially suitable for the processing of motor housing, wheels, automobile brake discs, flanges, etc.
