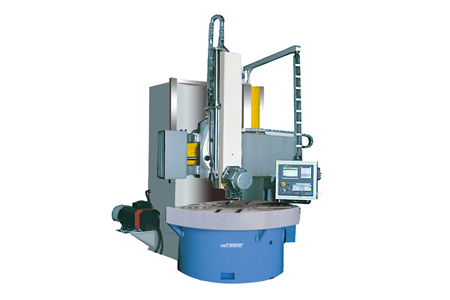

DVT51 series programmable single column vertical lathe
Max turning dia. : 2600mm
Max workpiece height : 1800mm
Max workpiece weight : 10t
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Specification | Unit | DVT5110 | DVT5112 | DVT5116 | DVT5120 | DVT5123 | DVT5126 |
| Maximum turning diameter | mm | 1000 | 1250 | 1600 | 2000 | 2300 | 2600 |
| Table diameter | mm | 900 | 1000 | 1400 | 1800 | 2000 | 2300 |
| Maximum workpiece height | mm | 800 | 1000 | 1200/1400 | 1250/1400 | 1350/1600 | 1500/1800 |
| Maximum workpiece weight | t | 2 | 3.5 | 5 | 8 | 8 | 10 |
| Maximum Torque of table | KN.m | 20 | 25 | 30 | 40 | 40 | 45 |
| Working table speed range | r/min | 8-250 | 6.2-200 | 5-160 | 3.2-100 | 3.2-80 | 2.5-63 |
| Cutting force of vertical tool rest | KN | 18 | 18 | 22 | 22 | 22 | 22 |
| Limit of carrying capacity of vertical tool rest | 度 | ±30° | ±30° | ±30° | ±30° | ±30° | ±30° |
| F eed range of vertical tool rest | mm/min | 0-500 | 0-500 | 0-500 | 0-500 | 0-500 | 0-500 |
| Horizontal travel of tool rest | mm | 670 | 700 | 915 | 1050 | 1180 | 1600 |
| Ram travel with vertical tool rest | mm | 650 | 650 | 800 | 800 | 800/1000 | 800/1000 |
| Fast moving speed of tool rest | mm/min | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Beam speed | mm/min | 440 | 440 | 440 | 440 | 440 | 440 |
| Section size of tool bar | mm | 30×40 | 30×40 | 30×40 | 30×40 | 30×40 | 30×40 |
| Power of main motor | KW | 18.5 | 22 | 30 | 30 | 30 | 37 |
| Overall dimensions(L×W×H) | mm | 2187×2711×3315 | 2277×2540×3415 | 2662×2800×3350 | 3210×2850×3910 | 3235×3240×3910 | 3380×3360×4000 |
| Weight ofmachine(Approx.) | t | 9.6 | 10.6 | 13.5/14 | 18.2/19.2 | 22.5/23 | 27.5/28.5 |
DVT51 series of machine tool is a single column structure, equipped with a vertical tool holder and a servo motor tool holder, suitable for high-speed steel, carbide tool processing all kinds of ferrous metals, non-ferrous metals and some non-metals, can turn the inner cylinder, outer cylinder, end face, inner cone, outer cone, grooving, tapping and so on.
