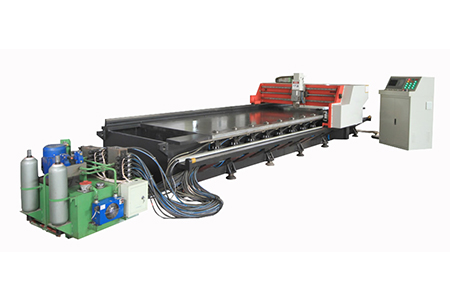

CGM-4 Series double drive four-side grooving machine (innovation of science and technology)
Max cutting width : 1250mm
Max cutting thickness : 0.5-4mm
Max cutting distance : 8mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | Max cutting width(mm) | Max cutting length(mm) | Max cutting thickness(mm) | Max cutting distance（mm） | Cutting speed(m/min) | Head resolution（up and down)(mm) | Positioningaccuracy(mm) | Main motor power(KW) | Hydraulic system working pressure(Mpa) | Machine outline size Length×Wdth(mm) | External Hydraulic Station size Length× Wdth(mm) |
Ecternal computer box size Length× Wdth(mm) |
Machine weight(T) |
| 1250×4000 | 1250 | 4000 | 0.5-4 | 8 | 60 | 0.001 | ±0.01 | 4.5 | 6-8 | 6200×2500 | 1100×800 | 600×800 | 10 |
CGM-4 Series double drive four-side grooving machine (innovation of science and technology) Product Introduction :
Product performance and features：
·CGM-4 Series stainless steel sheet grooving machine has the advantages of fast, accurate, stable and simple operation.

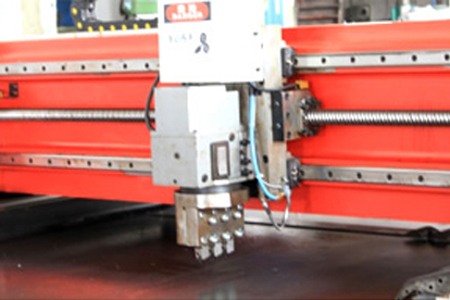

·Through a new generation of designed tool holder structure, the machine can meet the requirements of the specified size, the same plate on the four sides of slotting, to solve the traditional gantry type of grooving steering problem.
·The frame structure design is adopted for the machine base and cross beam, which has good overll seel property,small deformation, smooth and efficient cutting process and smooth cutting surface.

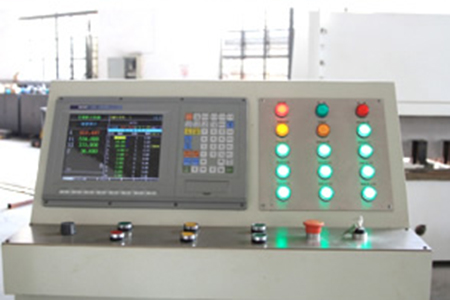

·The machine is fully servo-controlled, with high positioning accuracy, large processing range and high working efficiency.
·The machine has the function of self-planer.If the table is not even or defective after long-term use, it can use the function of self-planer to make the machine refreshed.
