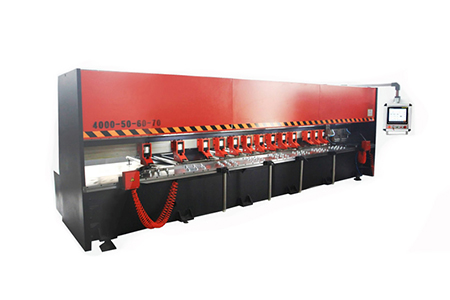

VCL-2 Series two-way high-speed CNC grooving machine(flagship model)
Max cutting width : 1250mm
Max cutting thickness : 0.5-4mm
Max cutting depth : 2.5-3mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
Model | Max cutting width(mm) | Max cutting length(mm) | Max cutting thickness(mm) | Max cutting depth (mm) |
Cutting speed(m/min) | Head resolution(up and down)(mm) | Y/Z shaft min positioning precision (mm) |
Y/Z shaft min setting unit(mm) | Main motor power(KW) | Air pressure(Mpa) | Machine outline size Length×Wdth× Height(mm) | Machine weight(T) |
1250×2500 | 1250 | 2500 | 0.5-4 | 2.5-3 | 60 | 0.001 | ±0.03 | 0.01 | 4.5 | 0.4-0.6 | 4600×2450×2100 | 9.5 |
1250×3200 | 1250 | 3200 | 0.5-4 | 2.5-3 | 60 | 0.001 | ±0.03 | 0.01 | 4.5 | 0.4-0.6 | 5300×2450×2100 | 10.5 |
1250×4000 | 1250 | 4000 | 0.5-4 | 2.5-3 | 60 | 0.001 | ±0.03 | 0.01 | 4.5 | 0.4-0.6 | 6100×2450×2100 | 11.5 |
1250×5000 | 1250 | 5000 | 0.5-4 | 2.5-3 | 60 | 0.001 | ±0.03 | 0.01 | 4.5 | 0.4-0.6 | 7100×2450×2100 | 15.5 |
1250×6000 | 1250 | 6000 | 0.5-4 | 2.5-3 | 60 | 0.001 | ±0.03 | 0.01 | 4.5 | 0.4-0.6 | 8100×2450×2100 | 27.5 |
The standard model is VCL-2 type 1250×4000, the length and width of the machine can be customized, and the color of the machine can be customized.
Product performance and features:

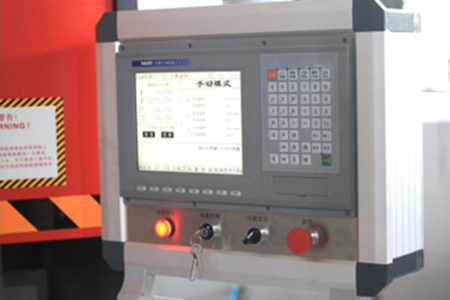

·VCL-2 Series two-way high-speed NC slotting machine(flagship)is an upgrade of vertical one-way high-speed NC grooving machine.It combines all the advantages of vertical one-way grooving machine.It uses computer numerical control,full servo control,accurate positioning, high processing accuracy, and its working efficiency is 30% higher than that of one-way grooving machine.
·Integral frame structure, good stability, working table using super hard die steel, worktable wear is small, four sides can be exchanged

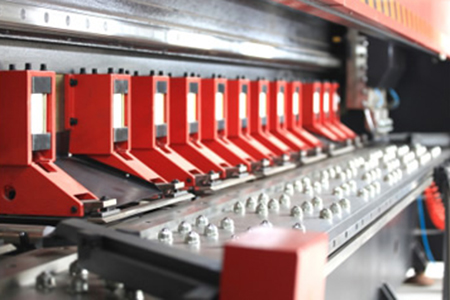

·6 alloy cutters are equipped with double tool holder. White steel cutters can be replaced according to the requirements of planer board. The cutting efficiency is very high. It is suitable for all kinds of product planers. It has a wide range of processing applications and meets the actual needs of customers at home and abroad. It is one of the most advanced slot planers in China today.
·This machine can be customized into a heavy planing machine for 6MM stainless steel.
