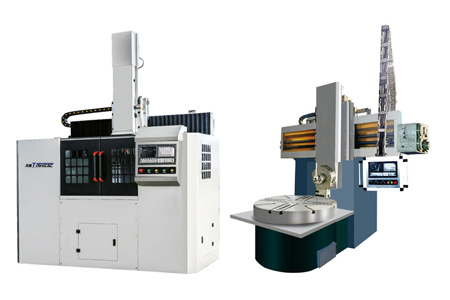

CKD51 fixed beam series numerical control vertical lathe
Max turning dia. : 1600mm
Max workpiece height : 600mm
Max workpiece weight : 8t
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Specification | Unit | CKD518 | CKD5110 | CKD5112 | CKD5116 |
| Maximum turning diameter | mm | 800 | 1000 | 1250 | 1600 |
| Table diameter | mm | 720 | 900 | 1000 | 1400 |
| Maximum workpiece height | mm | 500 | 500 | 600 | 600 |
| Maximum workpiece weight | t | 1.2 | 2 | 5 | 8 |
| Maximum Torque of table | KN.m | 9.5 | 9.8 | 21 | 28 |
| Working table speed range（4steps） | r/min | 1-350 | 1-300 | 1-250 | 1-160 |
| Cutting force of vertical tool rest | KN | 27 | 28 | 28 | 35 |
| Horizontal travel of tool rest | mm | -20-600 | -20-650 | -20-800 | -50-915 |
| Ram travel with vertical tool rest | mm | 650 | 650 | 700 | 800 |
| Fast moving speed of tool rest | mm/min | 2000 | 2000 | 2000 | 2000 |
| Section size of tool bar (WxH) | mm | 30×40 | 30×40 | 30×40 | 30×40 |
| Knife model | Square Slip/Electric Knife Table | ||||
| Power of main motor | KW | 22 | 22 | 22 | 30 |
| Overall dimensions（Lx WxH） | mm | 2080x2621x3315 | 2187x2711x3315 | 2360x2270x3315 | 2662x2800x3350 |
| Weight of machine(Approx) | t | 8 | 8.5 | 11 | 14 |
CKD51 series of CNC high-speed fixed beam vertical lathe is specially designed for heavy duty processing of casting and forging parts such as automobile, bearing, wind power, locomotive, flange, motor shell, etc. It has the advantages of strong rigidity, multiple combination methods, convenient wiring, multiple configuration methods, complete specifications and high precision. Equipped with four manual chuck claws, according to the different requirements of the workpiece, quickly and easily complete the workpiece clamping, accurate positioning.
Many product advantages to meet your work choice, with high-tech machine, electrical, hydraulic, integrated products.
