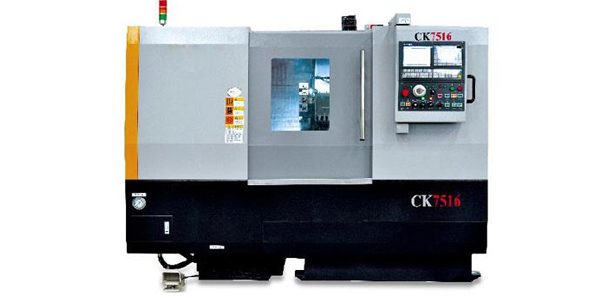

CK7516 series CNC lathes
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Item | Unit | Data | ||||
| CK7516 | CK7516A | CK7516C | CK7516G | |||
| Capacity | Max. swing over bed | mm(in) | φ400(15.748) | φ400(15.748) | φ400(15.748) | φ400(15.748) |
| Max. swing over slide | mm(in) | φ260(10.236) | φ260(10.236) | φ260(10.236) | φ260(10.236) | |
| Max. turning dia. | mm(in) | φ285(11.220) | φ285(11.220) | φ285(11.220) | φ285(11.220) | |
| Max. turning length | mm(in) | 400(15.748) | 400(15.748) | 400(15.748) | 400(15.748) | |
| Max. bar dia. | mm(in) | φ42(1.654) | φ42(1.654) | φ42(1.654) | φ42(1.654) | |
| Spindle | Spindle nose | A2-5 | A2-5 | A2-5 | A2-5 | |
| Spindle thru-hole | mm(in) | φ57(2.244) | φ57(2.244) | φ57(2.244) | φ57(2.244) | |
| Chuck dia. | mm(in) | φ165(6”) | φ165(6”) | φ165(6”) | φ165(6”) | |
| Spindle speed | r/min | 55-5500 | 80-3500 | 55-5500 | 55-5500 | |
| Power of spindle motor
(cont./30min) |
Kw
(hp) |
11/15
(14.96/20.40) |
7.5/11
(10.20/14.96) |
11/15
(14.96/20.40) |
11/15
(14.96/20.40) |
|
| Tailstock | Quill dia. | mm(in) | φ70(2.756) | φ70(2.756) | φ70(2.756) | φ70(2.756) |
| Quill movement | mm(in) | 80(3.150) | 80(3.150) | 80(3.150) | 80(3.150) | |
| Taper of center (std./live spindle structure) | Morse taper No.4/2 | Morse taper No.4/2 | Morse taper No.4/2 | Morse taper No.4/2 | ||
| Feed | Travel X/Z | mm
(in) |
165/410
(6.496/16.142) |
165/410
(6.496/16.142) |
165/410
(6.496/16.142) |
165/410
(6.496/16.142) |
| Rapid traverse X/Z | m/min
(ipm) |
12/16
(472/623) |
12/16
(472/623) |
30/24
(1181/945) |
16/20
(623/787) |
|
| Turret | Number of stations | 12/8 | 12/8 | 12/8 | 12/8 | |
| Tool setting size turning/milling | mm | 20×20/φ32 | 20×20/φ32 | 20×20/φ32 | 20×20/φ32 | |
| Others | Slant angle of bed | 45° | 45° | 45° | 45° | |
| Power capacity | kVA | 35 | 35 | 35 | 35 | |
| Dimension (L×W×H) | mm
(in) |
2370×1670×1970
(93.3×65.7×77.6) |
2370×1670×1970
(93.3×65.7×77.6) |
2370×1670×1970
(93.3×65.7×77.6) |
2370×1670×1970
(93.3×65.7×77.6) |
|
| Weight of machine | kg(lbs) | 3000(6615) | 3000(6615) | 3000(6615) | 3000(6615) | |
Introduction
CK7516 series CNC lathe, adopts high grade cast iron, integral machine bed, slant guide ways,through-hole spindle driven by large-field AC main motor and dampening design. bearings of main spindle and offeeding screw with low noise during operation, The multi-station power turretindexes fast continuously in bi-direction..
This series lathe can be equipped with FANUC0i-TF, Siemens 828D or other control systems.
