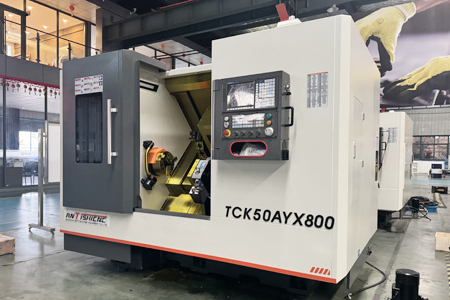

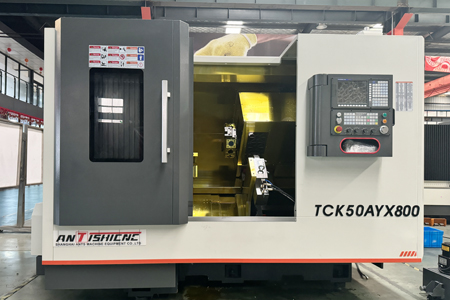

TCK50AY*800 Slant Bed CNC Lathe with Power Turret
Max. swing dia. over bed : 640mm
Max. swing dia. on slider : 380mm
Max. dist. between centers:800mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Parameters | Unit | TCK50AYx800 |
| Max. swing diameter over bed | mm | 640 |
| Max. swing diameter on slider | mm | 380 |
| Max. distance between centers | mm | 800 |
| Max. disc type processing diameter | 450 (when close tool without interference) | |
| Max. turning length | mm | 700 |
| Spindle nose | A2-8 | |
| Spindle through hole diameter | mm | 86 |
| Max. bar capacity | mm | 75 |
| Chuck size | inch | 10 |
| Through the hole of the hydraulic chuck pull rod | mm | 75 |
| Guide track form | / | linear guide rail |
| The cone aperture of the spindle | No | Metric system of 92 1:20 |
| Spindle limit speed | rpm | 3000rpm |
| Tail stock sleeve diameter | mm | 90 |
| Taper of tail stock | No | MT5 |
| Tail stock sleeve travel | mm | 80 |
| Tail stock form | / | Hydraulic (program control) |
| Tail stock travel | mm | 700 |
| Power turret tools | / | 12 |
| Live tool holder | BMT45 | |
| Y axis travel | mm | ±45 |
| Power tools tower clip head | mm | （ER25） |
| Tool shank size | mm | 25×25 |
| Maximum boring diameter | mm | 32 |
| Ball screw model–X direction | / | 3210 |
| Ball screw model–Y direction | / | 4010 |
| Guide rail model–X direction | / | RGH 45CA 2R725 |
| Guide rail model–Y direction | / | RGH 45CA 2R1515 |
| X / Z motor torque | N.M | 15/15 |
| X / Z direction fast speed | m/min | 18/18 |
| X axis travel | mm | 260 |
| Z axis travel | mm | 800 |
| Min. setting unit | mm | 0.0001 |
| Power of main motor | KW | 15 |
| Total power supply | KW | 32 |
| Machine tool net weight | Kg | 4000 |
| Overall dimensions (LxWxH) | mm | 3300*2000*2100 |
TCK50AY*800 Slant Bed CNC Lathe with Power Turret Product Introduction :
Product description
The TCK Series High Precision CNC Turning Center Slant Bed product is a semi-closed slant-bed turning and milling machine with X, Y, Z and C axes servo control. The structure and external dimensions are compact and reasonable. The spindle (C axis) is driven by a servo motor. It can realize the turning of the outer circle, the end surface and the thread of various materials, such as shafts and discs, and various surface milling and drilling in radial and axial directions, and is suitable for efficient machining of small parts.
Features
| Spindle |  |
The spindle adopts a high-precision spindle bearing set and has been precision assembled and dynamically balanced tested to ensure high spindle accuracy, low noise and strong rigidity. |
| Tool holder |  |
Can choose the tool turret method, which has fast tool changing speed and high positioning accuracy.
Hydraulic turrets and servo turrets are commonly used, and power turrets can also be used. |
| Chuck |  |
The wedge-shaped through-hole chuck can quickly clamp and loosen the workpiece under the action of hydraulic pressure, with fast clamping speed and high precision. |
| Machine transmission |
|
The screws and nuts are processed, ground, assembled and quality controlled in a constant-temperature workshop to ensure their high-precision stability. The linear rail has a small friction coefficient, fast movement speed and high precision. |
| Tailstock |  |
The hydraulic tailstock is processed manually (or hydraulically), manually (or hydraulically) locked, and the hydraulic piston tightens the workpiece. |
| Machine tool lubrication |  |

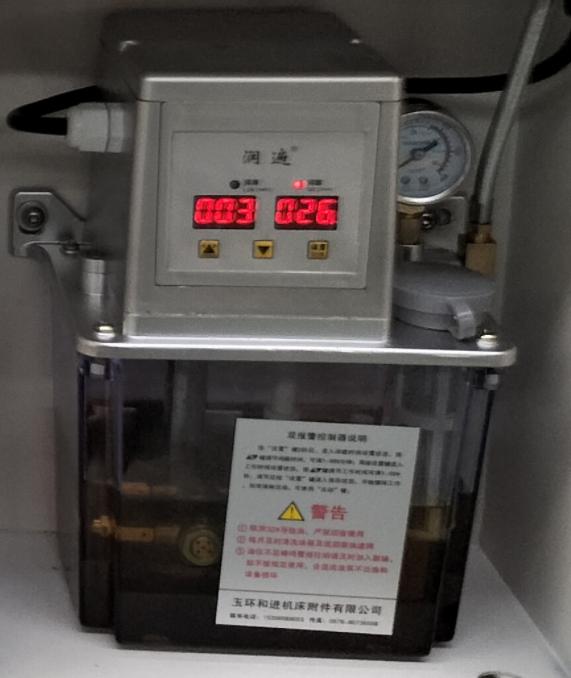

RBCLB-3ZK type volumetric lubrication pump, automatic lubrication,
Mainly the dovetail surface of the bed guide rail and carriage, and the lubricating surface between the ball screw and nut Uninterrupted fuel supply. |
Standard Equipment
| Name | Specifications | Quantity | Supplier | |

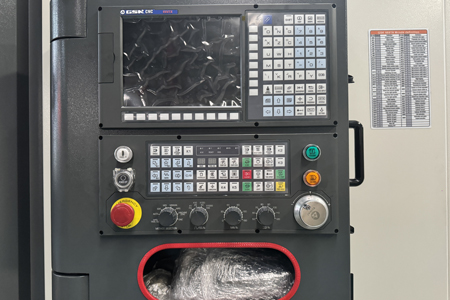

| CNC System | GSK988T | 1set | GSK | |
| Spindle motor | ZJY265A-15BM-B35 | 1set | GSK | |

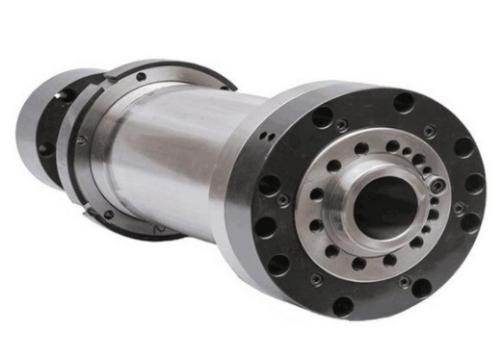

| Spindle unit | CK230A2-8 (Brake disc) | 1set | China | |
| Spindle bearing | NN3024K+7024AC/DB+ NN3022K | 1 set each | China | |
| Guide | X -Direction | RGH45CA2R725 | 2 sets | HIWIN/PMI |
| Z-Direction | RGH45CA2R1515 | 2 sets | HIWIN/PMI | |

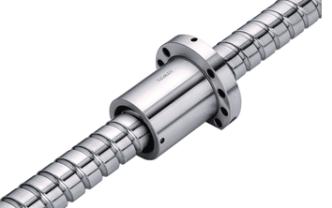

| Ball screw | X-Direction | 3210/703 | 1 set | HIWIN/PMI |
| Z-Direction | 4010/1429 | 1 set | HIWIN/PMI | |
| Screw bearing | 25TAC62/30TAC62 | 2 set each | NSK | |

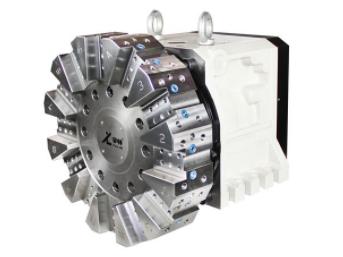

| Power turret | TCSDY80H-12T-330 (synchronous belt) | 1set | China-Taiwan | |
| Automatic lubricating device | RBCLB-3ZK | 1set | China | |
| Power holders | 0 Degrees (optional) | 1set | China-Taiwan | |
| Power holders | 90 degrees (optional) | 1set | China-Taiwan | |
| Automatic lubrication installation | RBCLB-3ZK | 1set | China | |
| Cooling pump | 370W | 1set | China | |
| Hydraulic station | 2.2kw | 1set | China | |
| Hydraulic chuck | KT0-3/A2-8 | 1set | China | |
| Chip conveyor | Chain plate type (optional) | 1set | China | |
Optional accessories
| Name | Specifications | Quantity |
| Control System | FANUC | 1 set |
| Chip conveyor | Chain plate type | 1 set |
