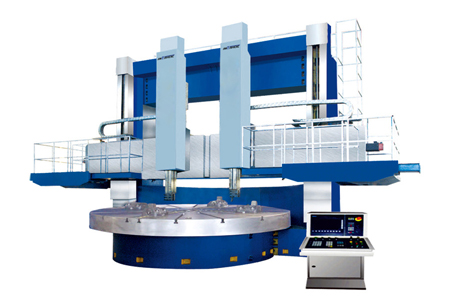

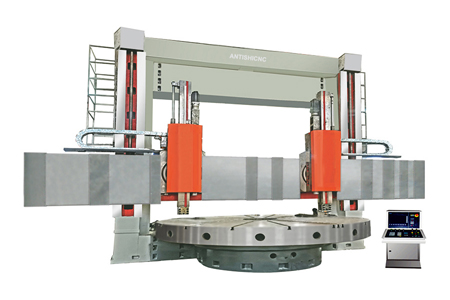

DVT52C series double column vertical lathe
Max turning dia. : 8000mm
Max workpiece height : 4000mm
Max workpiece weight : 120t
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Specification | Unit | DVT/C5225 | DVT/C5231 | DVT/C5240 | DVT/C5250 | DVT/C5263 | DVT/C5280 | DVT/C5290 | DVT/C52100 |
| Maximum turning diameter | mm | 2500 | 3150 | 4000 | 5000 | 6300 | 8000 | 9000 | 10000 |
| Table diameter | mm | 2250 | 2830 | 3200/3600 | 4500 | 4500/5700 | 7200 | 8000 | 8500 |
| Maximum workpiece height | mm | 1600/2000/2500 | 2000/2500 | 1600/2000/3150 | 2500/3150 | 3200 | 3150/4000 | 3150/4000 | 4000 |
| Maximum workpiece weight | t | 10/20 | 10/20 | 20/32 | 65 | 65/80 | 80/120 | 100/120 | 200 |
| Maximum Torque of table | KN.m | 63 | 63 | 80 | 100 | 100 | 500 | 500 | 600 |
| Stage speed series | Level | 4gearsstepless/16steps | 4gearsstepless/16steps | 4gearsstepless/16steps | 2 gears stepb/4gears stepless | 2 gears stepless | 2 gears stepless | 2 gears stepless | 2 gears stepless |
| Working table speed range | r/min | 2-63 | 2-63 | 2-63 | 0.4-40 | 0.4-32 | 0.4-20 | 0.4-20 | 1-20 |
| Cutting force of vertical tool rest | KN | 32 | 35 | 40 | 50 | L 50/R 70 | L 80/R 100 | L 80/R 100 | L 80 R 120 |
| Limitof carrying capacity ofvertical toolrest | degree | ±30° | ±30° | ±30° | ±30° | ±30° | ±30° | ±30° | ±30° |
| Feed range ofvertical tool rest | mm/min | stepless | stepless | stepless | 0.2-145 | 0.1-500 | 0.1-500 | 0.1-500 | stepless |
| Horizontal travel of tool rest | mm | -20-1400 | -20-1840 | -20-2150 | -20-2765 | -20-3415 | -2(M400 | -204700 | -50-5200 |
| Ram travel with vertical tool rest | mm | 1000/1250 | 1000/1250 | 1000/1250 | 1250/1600 | 1600/2000 | 1600/2000 | 1600/2000 | 2100 |
| Fast moving speed of tool rest | mm/min | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Cross-sectional dimension of bolster | mm | 240×240 | 240×240 | 240×240
260×260 |
240×240
260×260 |
280×280
300×300 |
280×280
300×300 |
280×280
300×300 |
320×320 |
| Section size of tool bar(W×H) | mm | 40×50 | 40×50 | 40×50 | 50×50 | 50×50 | 60×60 | 60×60 | 60×60 |
| Power of main motor | kw | 55 | 55 | 75 | 90 | 90 | 132 | 132 | 160 |
| Overall dimensions(L×W×H) | mm | 5400×4700×4800/5200 | 6050×4400×4930/5330 | 6900×5100×4800/5200/5700 | 10000×7000×7230/8530 | 12500×7500×9400/10700 | 14000×13000×9100 | 16000×13000×9100 | 16000×13000×10000 |
| Weight of machine(Approx.) | t | 32/34/38 | 36/40 | 48/50/52 | 81/84 | 120 | 180 | 200 | 400 |
Product Features:
DVT52C series double column vertical lathe implements the latest national precision standards and safety standards, adopts advanced and reliable electromechanical components at home and abroad, excellent structural performance, strong rigidity, and meets the requirements of strong cutting. Table can withstand large tonnage load, good stability, high efficiency, safe and reliable. DVT52C series left and right tool holder adopts DVT system control, equipped with digital display scale. Servo drive and X, Z axis feed servo motor using Beijing super synchronous products. The X and Z axes of the left and right tool holder are driven by the servo motor through the precision planetary reducer to increase the torque and drive the ball screw to do horizontal and vertical movement.
