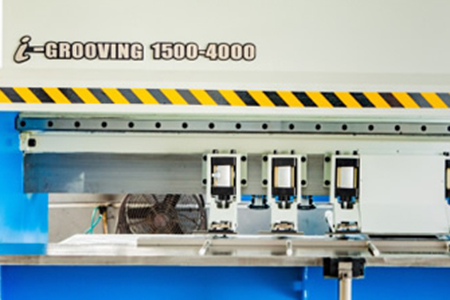

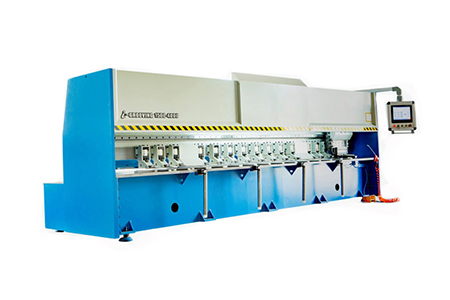

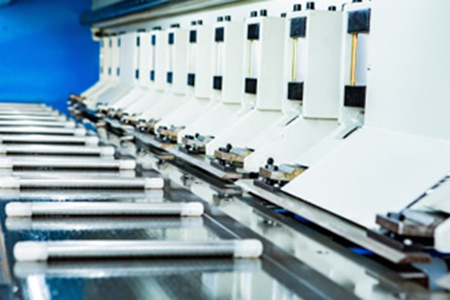

HCL Series One-way High Speed CNC Grooving Machine(Touch Upgrade)
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | Max cutting width(mm) | Max cutting length(mm) | Max cutting thickness(mm) | Max cutting depth （mm） |
Cutting speed(m/min) | Head resolution（up and down)(mm) | Y/Z shaft min positioning precision (mm) |
Y/Z shaft min setting unit(mm) | Main motor power(KW) | Air pressure(Mpa) | Machine outline size Length×Wdth× Height(mm) | Machine weight(T) |
| 1250×2500 | 1250 | 2500 | 0.5-4 | 2.5-3 | 60 | 0.001 | ±0.03 | 0.01 | 4.5 | 0.4-0.6 | 4300×2300×2100 | 8.6 |
| 1250×3200 | 1250 | 3200 | 0.5-4 | 2.5-3 | 60 | 0.001 | ±0.03 | 0.01 | 4.5 | 0.4-0.6 | 5000×2300×2100 | 9.6 |
| 1250×4000 | 1250 | 4000 | 0.5-4 | 2.5-3 | 60 | 0.001 | ±0.03 | 0.01 | 4.5 | 0.4-0.6 | 5800×2300×2100 | 10.6 |
| 1250×5000 | 1250 | 5000 | 0.5-4 | 2.5-3 | 60 | 0.001 | ±0.03 | 0.01 | 4.5 | 0.4-0.6 | 6800×2300×2100 | 14.5 |
| 1250×6000 | 1250 | 6000 | 0.5-4 | 2.5-3 | 60 | 0.001 | ±0.03 | 0.01 | 4.5 | 0.4-0.6 | 7800×2300×2100 | 26.5 |
The standard model is HCL type 1250×4000, the length and width of the machine can be customized, and the color of the machine can be customized.
Product performance and features：
·The upgraded version of HCL Series keyboard, the latest computer touch screen operating system, the operation is simpler, more convenient and intuitive, the function is more and more complete than the keyboard, the planing groove of sheet metal, the automatic measurement of the inside and outside diameter of groove, and so on, as well as the graphics display.
·Fast speed, high efficiency, precise positioning, high processing accuracy, high working efciency block, uitable for all kinds of building decoration ndustry, all kinds of products can be grooved,processing application is very wide, in line with the actual needs of customers at home and abroad, the current model is very popular with customers.
·This machine can be customized into a heavy planing machine for 6MM stainless steel.
