Special purpose grinding machine

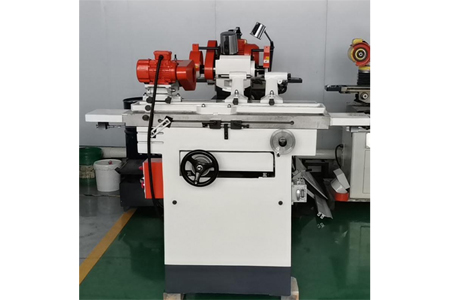

MQ6025A Universal tool grinder

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Maximum swivel diameter of the work-piece on the center 250mm
Maximum distance from centers 700mm
Work surface size (LxW) 940x135mm
The maximum vertical movement of the table 480mm
The maximum rotation angle of the worktable 120°(60°)
The maximum movement of the grinding head (or slide) in the horizontal direction 225mm
The minimum distance between the center line of the grinding wheel and the center line of the center 50mm
The maximum distance between the center line of the grinding wheel and the center line of the center 265mm
Maximum vertical movement of grinding head 270mm
The center line of the grinding wheel rises to the center line of the center 200mm
The center line of the grinding wheel is lowered to the center line of the center 65mm
The rotation angle of the grinding head is in the horizontal plane 360°
The rotation angle of the grinding head is in the vertical plane 30°(±15°)
Spindle end taper Mors 3# Taper MT 3#
Grinding head motor (50HZ) Power 0.85/1.1KW
Rotating speed 1400/2800rpm
Grinding head spindle speed 3010/6010rpm
Grinding cylindrical attachment motor (50HZ) Power 0.25KW
Rotating speed 1400rpm
Machine tool minimum outline size (LxWxH) 165X115X150(cm)
Machine weight 940kg

Features:

This machine tool is suitable for sharpening high-speed steel, carbide or other material tools, and is also convenient for grinding outer circles, plane grooves and forming surfaces. If equipped with special accessories, it can also grind various gears, worm gear hobs, forming knives, ball end milling cutters, twist drills, taper reamers, etc.

The grinding wheel frame of the machine tool is flexible and can be adjusted in two degrees. The working head frame can be rotated in both directions. It has an international standard NT50 at one end and a Morse 5# taper hole at the other end, which is convenient for installing various tools and fixtures. The table is supported on preloaded ball guide rails for smooth and precise operation.

Standard accessories:

Universal Grinder 1 Set
Left and right tailstock 1 pcs
Grinding wheel corrector 1 Set
Wheel guard 2 pcs
Grinding inner mandrel 1 pcs
Knife tooth support 1 Set
Tool holder 1 pcs
tie rod 1 pcs
Allen key 1 Set
foot 3 pcs
toolbox 1 pcs
Grinding wheel 2 pcs
Reducer 3 pcs
Grinding wheel extension shaft 1 pcs
center gauge 1 pcs
Indexing plate 24 equal parts 1 pcs
