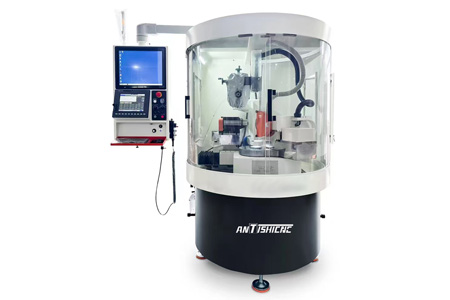

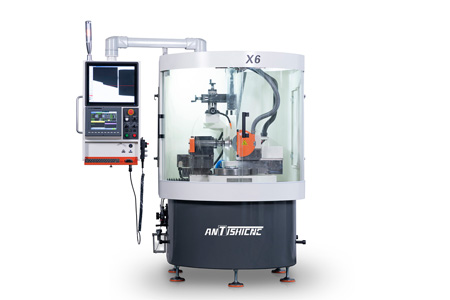

X6 CNC Grinding Wheel Dresser
Max diameter : φ300mm
Min diameter : φ30mm
Max width : 40mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Specifications | X6 |
| Spindle of the grinding wheel to be dressed | Standard BT40 interface spindle, optional customer interface spindle |
| Outer diameter of the grinding wheel to be dressed | 30~300mm |
| Grinding method | Dry repair, water mist repair and wet repair |
| Dust collection device and grinding fluid filtration system | Optional |
| Power supply voltage | Three-phase 380V/50HZ |
| Total power | 3KVA |
| Maximum diameter of the grinding wheel to be dressed | φ300mm (exceeding customizable) |
| Minimum diameter of the grinding wheel to be dressed | φ30mm (exceeding customizable) |
| Maximum width of the grinding wheel to be dressed | 40mm (exceeding customizable) |
| Speed of the grinding wheel to be dressed | 50~1000rpm (stepless speed change) |
| Left and right movement distance of the grinding wheel to be dressed X-axis | 135mm (can drag the grinding wheel spindle base, increase the stroke to 300) |
| Forward and backward movement distance of the grinding wheel to be dressed Y-axis | 100mm |
| Diameter of the dressing wheel (silicon carbide) | φ200 (or φ250) × 10x 31.75mm |
| Speed of the dressing wheel (silicon carbide) | Max 2800rpm (stepless speed change) |
| Number of swings of the dressing wheel (silicon carbide) | 0~50Hz (stepless speed change) |
| Swing length of the dressing wheel (silicon carbide) | 0~50mm (adjustable) |
| Resolution of the grating scale (magnetic scale, angle scale) | 0.001mm/0.01° |
| CCD and lens | Standard ordinary lens, optional high-resolution camera, variable or fixed magnification high-definition lens |
| Upper light source | LED light |
| Backlight source | Using large diameter backlight technology |
| Computer host, high-definition LCD screen | 1 set |
| Computer measurement system | 1 set |
| Magnification | Optional |
| Measurement function | The real image and CAD drawing can be zoomed in synchronously for pressure line comparison |
| Data display | The position of the grinding wheel being dressed can be displayed on the measurement software |
X6 CNC Grinding Wheel Dresser Product Introduction :
Features
1. Two-axis electronic hand-wheel control + three-axis linkage CNC grinding wheel dressing system

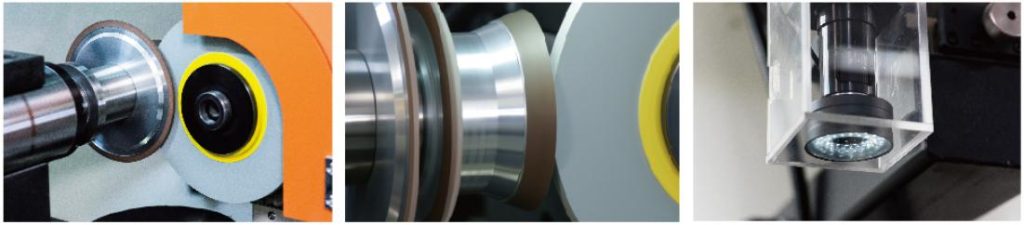

2. lt can trim the inner side, outer side, outer side, angle and arc of the grinding wheel
3. The silicon carbide grinding wheel SIC can automatically rotate, reciprocate the knife,automatically feed the tool, and automatically trim
4. Optional zoom lens or fixed zoom lens and high resolution camera, clear imaging and accurate measurement
5. One-click import of CAD drawings;
6. 10mm acrylic seal cover is safer, more environmentally friendly and more tidy.
| Standard ACCESSORIES | PICTURE | UNIT PRICE | QUANTITY |
| Diamond spindle |  |
1600USD | 1 |
| Handwheel |  |
15USD | 3 |
| Governor |  |
25USD | 1 |
| Potentiometer |  |
5USD | 4 |
| Video capture box |  |
80USD | 1 |
| Data box |  |
120USD | 1 |
| Drive belt |  |
15USD | 2 |
| Lens hood |  |
120USD | 1 |
| Lower light source acrylic cover |  |
15USD | 1 |
| OPTIONAL ACCESSORIES | PICTURE | UNIT PRICE | QUANTITY |
| Silicon carbide grinding wheel- Outer diameter 175*Inner hole 31.75*Thickness 10 |
 |
20USD | 1 |
| BT40 adapter |  |
120USD | 1 |
