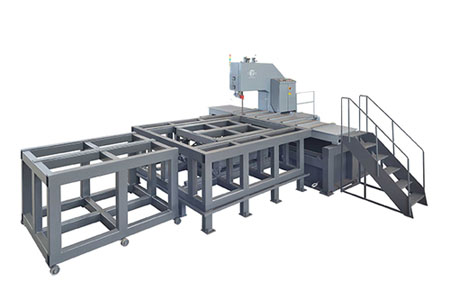

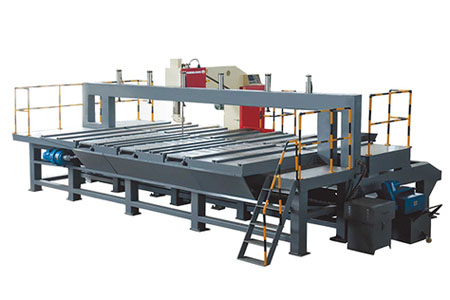

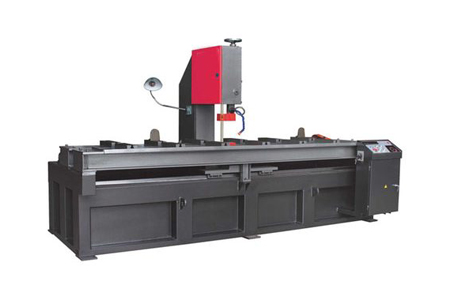

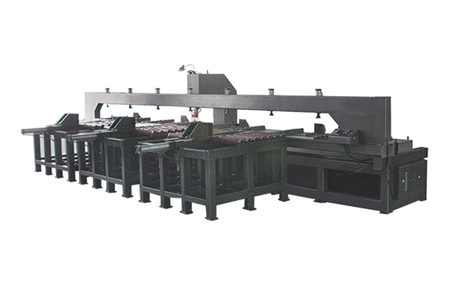

Vertical Longitudinal Cutting Pulley Type Metal Band Saw Machine G53 Series
Max.cutting capacity :
H : 0.25~1.5 m / L: 1 ~ 10 m
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical Specifications |Model | G5325 | G5340 | G5350 | G5360 | G5385 | G53100 | G53125 | G53150 | |
| Max.cutting capacity |
Height(mm) | 250 | 400 | 500 | 600 | 850 | 1000 | 1250 | 1500 |
| Throat(mm) | 350 | 400 | 500 | 600 | 1000~1500 | 1000~1200 | 1000~2000 | 1000~2000 | |
| Length(mm) | 1000 ~3000 | 1000 ~3000 | 1000 ~3000 | 1000 ~3000 | 2000 ~10000 | 2000 ~10000 | 2000 ~10000 | 2000 ~10000 | |
| Saw blade | Speed (m/min) | 20~90 | 20~90 | 20~90 | 20~90 | 20~90 | 20~90 | 20~90 | 20~90 |
| Size(mm) | 34×1.1 | 64*1.1 | 41*1.3 | 41*1.3 | 54*1.6 | 54*1.6 | 67*1.6 | 67*1.6 | |
Product description:
● This series of machine tools adopt DC speed motor feed system to control the saw frame moving medium and small pulley vertical band sawing machine. It is mainly used for sawing the die blank, slab and other medium thickness materials;
● The utility model has the advantages of narrow kerf, material saving, energy saving, high sawing precision, convenient operation and high production efficiency.
Standard Equipment
1. Saw machine base
2. Main drive system
3. Saw blade tension device
4. Saw frame
5. Saw blade guide
6. Saw frame feeding device
7. Internal and external workbenches
8. Cooling system
9. Electrical system
Optional Equipment
1. Gantry structure upper pressure rack
2. Chip conveyor
3. Guide arm hydraulic movement and locking device
4. Saw belt hydraulic tension
5. Material rack (generally customized according to customer needs)
