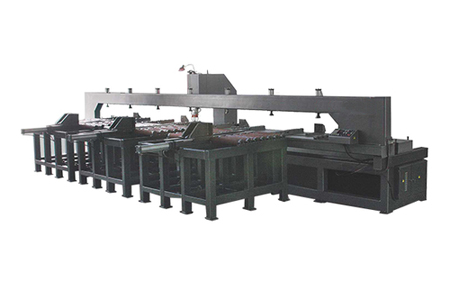

Slotting Shaping Machine
|Maximum sawing specification (mm)||Deep (D) : 1600
Height (H) : 600
|Maximum effective stroke (mm)||6000|
|Band saw wire speed (m/min)||18~70 (Stepless adjustable)||Band saw wire specifications (mm)||54 x 1.6 x 7780|
|Main motor power (kw)||7.5||Lifting power of feeding motor (kw)||3.0|
|Hydraulic motor (kw)||①0.75
|Cooling pump (kw)||0.125|
|Power of chip removal machine (kw)||0.4||Loading capacity of table (t)||20|
|Outline size (mm)||9300 x 5210 x 3100|
● This machine control adopts PLC programmable logic controller, and its performance is stable;
● The main drive adopts frequency conversion governor, which is convenient for speed regulation;
● Feed by AC servo motor drive saw frame feed motion, sawing stability, with the dual metal band saw blade sawing can be of high quality, all kinds of metal materials, with narrow kerf, save, save material, sawing precision.
