Radial Drilling Machine

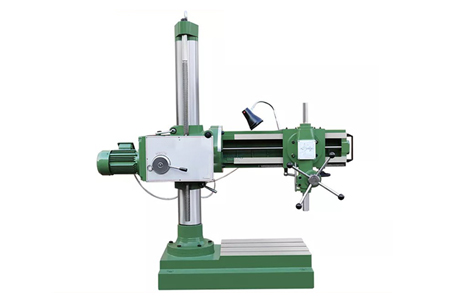

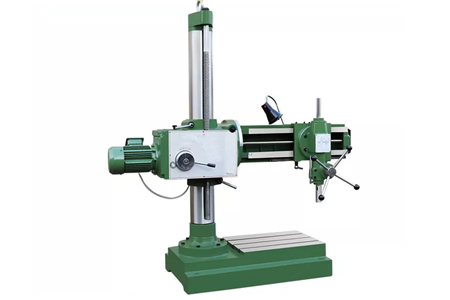

Z3132 radial drilling machine

Max drilling dia. : 32 mm

No installation required

Simple operation

Support video teaching

1 Year for machinery warranty

On Stock

Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

SPECIFICATIONS UNIT Z3132 Z3732
Max.drilling diameter mm 32 32
Distance from spindle nose to table surface mm 250-870 250-870
Distance between spindle axis and column surface mm 315-815 315-815
Spindle travel mm 130 130
Spindle taper MT3/MT4 MT3/MT4
Spindle speeds range rpm 173-960 173-960
Spindle speed steps mm/r
Spindle feeding range 173-960 173-960
Spindle feeding steps
Rocker rotary angle degree 360 360
Main motor power kw 4 4
Lifting motor power kw 360 360
Machine Weight kg 4 4
Machine Overall dimensions cm 1800X700X2044 1800X700X2044

Product Description

The Z31 universal radial drilling machine is a universal radial drilling machine that can perform 360-degree processing in multiple directions and multiple angles. The structure of the Z31 universal radial drilling machine is that the spindle box is sleeved on the column, and one end of the spindle box passes through The disc is connected to the rocker arm. The main shaft box and the rocker arm are formed by interlocking two disc grooves, and then they are fixed with T-bolts. The outer circumference of the rocker arm disc has an angle dial, and the gear box transmits power through the light lever. Give the headstock and then transfer the power to the main shaft for operation. The main shaft of the Z31 universal radial drilling machine can also rotate 360 degrees on the basis of being parallel to the rocker arm. Through the rotation between the various parts, the machine tool can work in any angle and plane. In order to better adjust the level and stability of the machine tool base is equipped with adjusting bolts, which can flexibly and conveniently solve the correction of uneven ground and the level of the machine tool.

Product Features

● The guide rail, column and box body of Z31 universal radial drilling machine are made of high-strength cast iron. After the casting, the casting is heat treated to eliminate the internal stress of the casting. The casting that eliminates the internal stress after heat treatment can maintain the stability of the main body of the machine tool, the surface of the column and the guide rail for a long time. Each contact surface is quenched to maintain the hardness of the guide rail and the column, and the machine tool can maintain the accuracy and durability for a long time;

● The electrical and motor of Z310 radial drilling machine adopt national standard grade. Under the control of national standard grade electrical, the machine tool is more energy-saving and safe to run for longer;

● The rotating gear of the main shaft box is precision ground and carburized and quenched. The gear box runs with low noise and good transmission force;

● Domestic Harbin bearings are selected for each rolling component bearing, and the whole machine tool can perform high-speed cutting;

● The main shaft box adopts the internal circulation lubrication of the automatic oil supply system, and the gears and bearings are fully lubricated, which solves the shortcomings of insufficient lubrication of the top gears of the traditional lubrication method;

● The main shaft is equipped with a travel protection switch, which solves the problem of damage to the main shaft or gear when the main shaft is fed to the top when the worker misuses or automatically feeds;

● Column safety locking device switch, automatic lifting can automatically cut off power when workers forget to loosen the locking device, which can well protect the column from being strained and the turbine and worm from slipping;

● The lead screw is made of a brand manufacturer, which is produced and processed in strict accordance with the tempering, quenching and other lead screw processing techniques. The lead screw produced by the special lead screw processing equipment is precision ground by a grinder, and the service life is twice that of the ordinary lead screw. The nut is a brass nut with good wear resistance and precision;

● The Z31 universal radial drilling machine has undergone strict product quality accuracy screening from rough casting, parts procurement, and supplier selection. Each process has been strictly inspected to ensure the overall accuracy requirements of the machine tool when it leaves the factory.

Standard Equipments
Radial drilling machine
Reducer sleeve
3# 4# retracting wedge
Drill chuck
Workbench
Unloader wrench
Anchor bolt
LED work lamp
Adjusting pad
Operation manual
Certificate of conformity
Packing list
