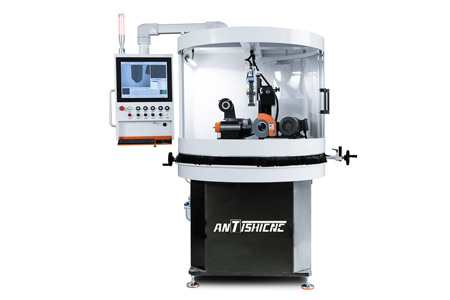

X5 Grinding Wheel Dresser machine
Maximum diameter : φ420 mm
Minimum diameter : φ20mm
Maximum width : 20 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
Diamond Wheel Components (Dressed Wheel Components)
| Diamond seconds wheel spindle interface | Optional according to customer requirements |
| diamond grinding wheel diameter | φ420 mm |
| Small diameter diamond grinding wheel | φ20mm |
| Maximum thickness of diamond seconds wheel | 20 mm |
| Dressing wheel aperture | φ31.75mm |
| Spindle speed of diamond grinding wheel | 50-1000rpm (Step-less speed regulation) |
| Diamond grinding wheel spindle cross slide X working stroke | 135 mm |
| Diamond end wheel spindle cross slide X additional manual stroke | 150 mm |
| Diamond grinding wheel spindle cross slide Y working stroke | 135 mm |
| Diamond grinding wheel spindle cross slide Y additional manual stroke | 150 mm |
| X, Y cross slide magnetic scale resolution | 0.001mm |
| Diamond grinding wheel can trim arc radius | R0.1-30mm |
Silicon Carbide Wheel Components (Dressing Wheel Components)
| Dressing wheel (SIC) size | φ180×10×φ31.75 mm |
| Dressing wheel speed | 250-2500 rpm(Stepless speed regulation) |
| Dressing wheel swing times | 0-50/per minute (adjustable speed) |
| Dressing wheel left and right swing distance | 0-45/mm(adjustable） |
| total power | 2.0KW |
| Silicon carbide grinding wheel motor | 0.75KW |
| Dressed diamond wheel motor | 0.75KW |
| Reciprocating swing motor power | 25W |
X5 Grinding Wheel Dresser machine Product Introduction :
X5 is a fully-sealed grinding wheel dresser introduced in response to the national environmental protection policy to meet the requirements of customers’ workshop environment. lt is a new product based on X3.

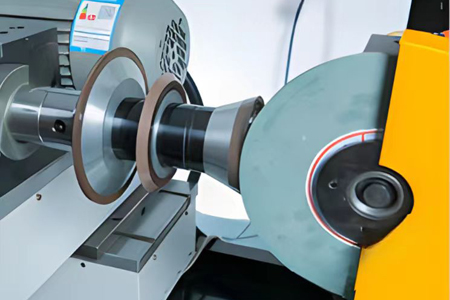

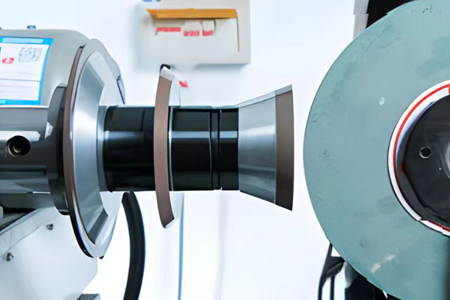

The machine itself can provide simple and efficient dressing of diamond wheels, CBN wheels and multiple wheels, it can dress planes, angles, arcs and shaped wheels, The machine is easy to operate and has high accuracy. At the same time, it can achieve water mist cooling and natural cooling without causing environmental pollution.

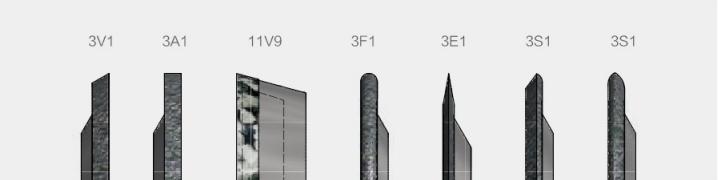

Dressing wheel shape
Adjustment Of Grinding Wheel Speed When Using Dresser

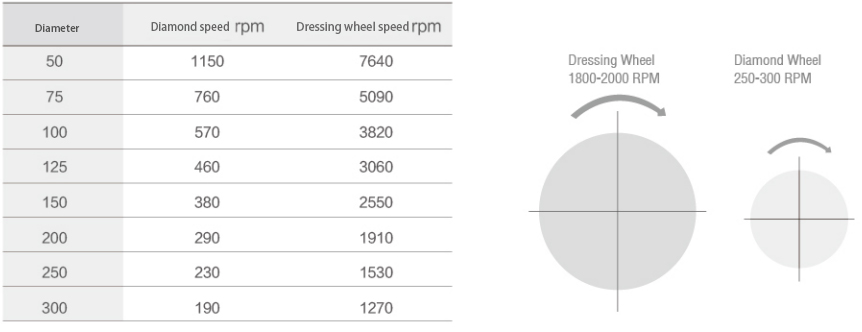

According to our experience, the linear speed ratio of the dressing grinding wheel and the diamond / CBN grinding wheel being dressed is: 20: 5, so adjust the different speeds according to the diameter, see the table below for details:
Grinding Wheel Size Selection
| Diamond/CBN grinding wheel grit size to be dressed | Grinding wheel binder | Grinding wheel grit |
| -80 | GC WA | 30-46 |
| 100-200 | GC WA | 46-80 |
| 200-325 | GC WA | 80-120 |
| 325-1000 | GC | 120-220 |
| 1000- | GC | 220-800 |
| Standard ACCESSORIES | PICTURE | UNIT PRICE | QUANTITY |
| Diamond spindle |  |
1600USD | 1 |
| Handwheel |  |
15USD | 3 |
| Governor |  |
25USD | 1 |
| Potentiometer |  |
5USD | 4 |
| Video capture box |  |
80USD | 1 |
| Data box |  |
120USD | 1 |
| Drive belt |  |
15USD | 2 |
| Lens hood |  |
120USD | 1 |
| Lower light source acrylic cover |  |
15USD | 1 |
| OPTIONAL ACCESSORIES | PICTURE | UNIT PRICE | QUANTITY |
| Silicon carbide grinding wheel- Outer diameter 175*Inner hole 31.75*Thickness 10 |
 |
20USD | 1 |
| BT40 adapter |  |
120USD | 1 |
Get The Required Product Quotation As Quickly As Possible
If possible, Given detailed request helps to gain better-matched customized solution. Thanks for your patience. your request will be responsed within 1 hours, kindly pay attention to your email please.
