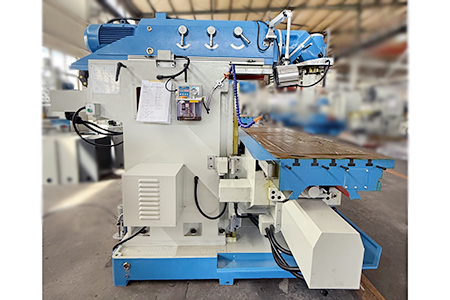

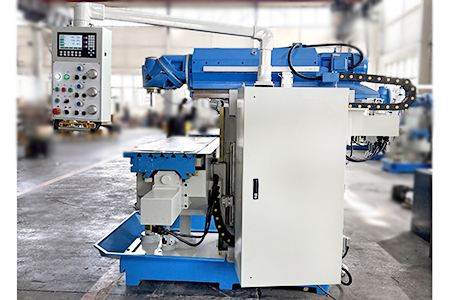

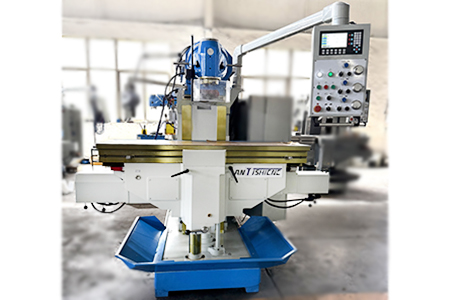

X5746 X5750 X5750A Universal Ram Milling Machine
Table size (WxL) : 2000x500mm
Max. load of table : 1800kg
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Items | X5746 | X5750 | X5750A |
| Working area | |||
| Table size | 1235x460mm | 1600x500mm | 2000x500mm |
| T-slot (width x No. x pitch) | 18mmx5x80mm | ||
| Max. load of table | 800kg | 1800kg | |
| Distance from spindle nose to table surface | 58-508mm | 50-550mm | |
| Distance from spindle center line to column | 20-670mm | 45-745mm | |
| Travel | |||
| Longitudinal travel of X axis | 900mm | 1200mm | 1400mm |
| Cross travel of Y axis | 650mm | 700mm | 700mm |
| Vertical travel of Z axis | 450mm | 500mm | 500mm |
| Spindle | |||
| Swivel angle of milling head | 360° | 360° | 360° |
| Spindle taper | ISO40 | ISO50 | ISO50 |
| Vertical spindle speed /step | 30-2050rpm | ||
| Vertical spindle speed step | 27 steps | ||
| Main motor power | 5.5kW | 7.5kW | |
| Feed | |||
| Feed speed and step of X/Y axis | 10-1000mm/min | 10-1000mm/min | 10-1000mm/min |
| Feed speed and step of Z axis | 6-640mm/min | 5-500mm/min | 5-500mm/min |
| Rapid traverse of X/Y axis | 2200mm/min | ||
| Rapid traverse of Z axis | 1100 mm/min | ||
| AC servo motor torque of X/Y/Z axis | X/Y:18Nm
Z:27Nm |
||
| Others | |||
| Overall dimension | 2527x2035x1990mm | 2625x2460x2080mm | 2625x2860x2080mm |
| Net weight | 3600kg | 4200kg | 4500kg |
Equipment Introductions
X5746、X5750、X5750A series Universal Ram Milling Machine a mature product mainly exported by ANTISHICNC company. The whole machine has a compact structure, beautiful and pleasant appearance. Its suitable for drilling , hole-expansion, reaming, bevel edge,and tapping, for surface milling, step plane ,slope ,and milling groove , for cutting and milling curve ,curve surface and cam.Have the function of step-less speed and automatic speed change to gain large torque with low speed, suitable for processing thick cutting depth and larger-diameter hole.The fuselage and main components are high strength cast iron, micro structure stability, ensure the stability of machine tool for long-term use.
Product Details
• Large work-table, long travel
• Double-supporting-column design, heavy load capacity
• Servo motor driven sliding ram, very long travel in Y-axis
• 27 speeds spindle, gearbox driven directly, large speed range for powerful milling
• Universal 360° swivel head can process any angle surface
• Table feeding with 3 separate servo motors, variable speeds, high accuracy, low noise
• 3-axis ball screws for precise feeding
• 3-axis E-hand wheels on control panel, easy manual control of work-table
Standard Equipment:
Draw bar
Milling chuck ISO40 (or ISO50)
End face milling cutter handle ISO40-Φ32 (or ISO50-Φ40)
Working lamp
Coolant system
Manual lubrication pump
Tool & tool box
Operation manual
Optional accessories:(need extra cost)
3-axis Digital Read Out
Dividing head 160 mm (Manual)
Rotary table 250 mm
Milling chuck 15 pcs
Clamping kits
Worktable protection cover
Spindle protection cover
Automatic centralized oil lubrication
Schneider electric components
LED work lamp
