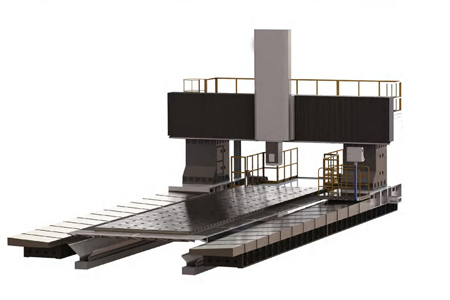

XKW26 series gantry machining center
Table Size(L*W) : 4x20m
Max Loading Weight : 10 T/㎡
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model
Parameters |
XKW2642x100
(XKW2650x100) |
XKW2642x120
(XKW2650x120) |
XKW2642x140
(XKW2650x140) |
XKW2642x160
(XKW2650x160) |
XKW2642x180
(XKW2650x180) |
XKW2642x200
(XKW2650x200) |
| Processing Range | ||||||
| Gantry effective width (mm) | 4200(5000) | |||||
| X travel (mm) | 10800 | 12800 | 14800 | 16800 | 18800 | 20800 |
| Y travel (mm) | 4600(5000) | |||||
| Z travel (mm) | 1250/1500 | |||||
| Spindle nose to table face (mm) | 250~1500/1750 | |||||
| Table | ||||||
| Table size (WxL) (mm) | 3000×10000
(4000×10000) |
3000×12000
(4000×12000) |
3000×14000
(4000×14000) |
3000×16000
(4000×16000) |
3000×18000
(4000×18000) |
3000×20000
(4000×20000) |
| Max loading (t) | 10 | |||||
| Table T-slot(no -Size x Distance) | 36×250 | |||||
| Spindle | ||||||
| Ram Form and dimension (mm) | Square Ram
450×450 |
|||||
| Maximum spindle speed (rpm) | 3500 | |||||
| Spindle power (kw) | 22/26(30/37) | |||||
| Spindle Drive Form | Direct Connect +ZF double Speed Gear Box | |||||
| Spindle taper | BT5O | |||||

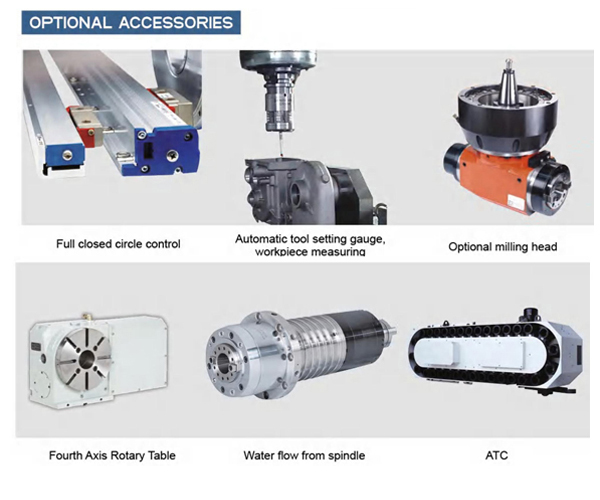

| ATC(options) | ||||||
| Tool capacity (T) | 24/32/40/60 | |||||
| Maximum tool diameter (mm) | Φ125/230 | |||||
| Maximum tool length (mm) | 300 | |||||
| Maximum tool weight (mm) | 15 | |||||
| Others | ||||||
| Total power supply capaty(KVA) | 100 | |||||
| Machine weight(T) | 125 (140) | 140 (160) | 155 (180) | 170 (200) | 185 (220) | 200 (240) |
| Machine size(mm) | 17000x8000x6800
（17000x9000x6800） |
19000x8000x6800
（19000x9000x6800） |
21000x8000x6800
（21000x9000x6800） |
23000x8000x6800
（23000x9000x6800） |
25000x8000x6800
（25000x9000x6800） |
27000x8000x6800
（27000x9000x6800） |
| CNC Control System | SIEMENS 828D | SIEMENS 828D | SIEMENS 828D | FANUC Oi-MF | SIEMENS 828D | SIEMENS 828D |
| FANUC Oi-MF | FANUC Oi-MF | FANUC Oi-MF | FANUC Oi-MF | FANUC Oi-MF | FANUC Oi-MF | |
Product Features:
German technology!
Single side double pinion and rack electronic backlash elimination, gantry moving synchronization accuracy is high!

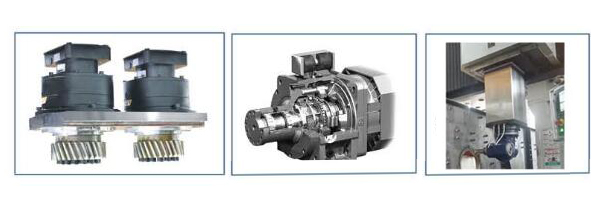

Spindle speed change adopts ZF gearbox and self-made gearbox combination, improve the output torque of machine tool spindle, suitable for heavy cutting.

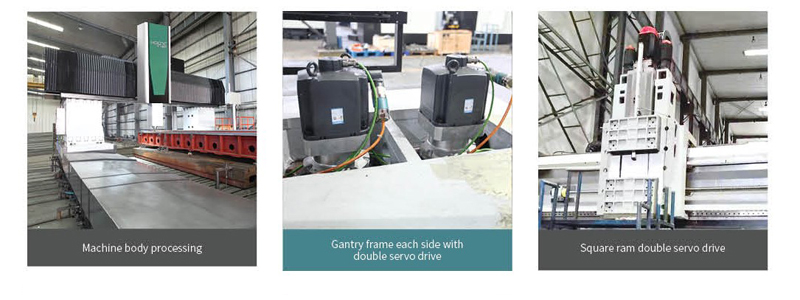

Square pillow section 450mm x 450mm/500mm x 500mm, adopts double servo drive, stroke 1500mm/2000mm, good rigidity, with heavy load spindle unit, can be heavy cutting.
