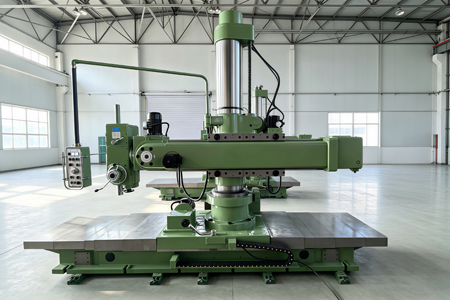

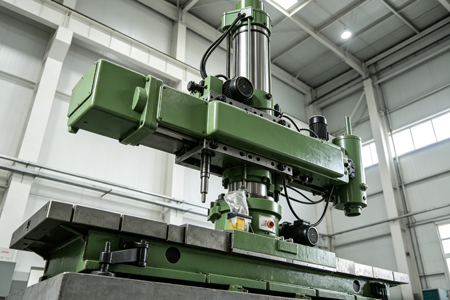

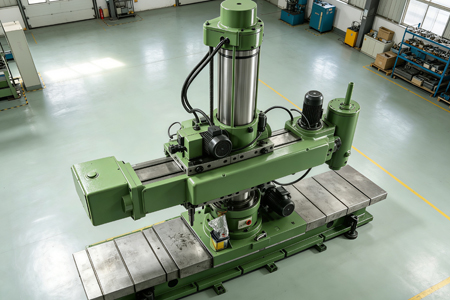

Z3550×20 Sliding Base Universal Radial Drilling Machine
Max drilling dia. (vertical) : 50mm
Max drilling dia. (horizontal) : 30mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Description | Parameter | Unit |
| Max drilling diameter (vertical) | 50 | mm |
| Max drilling diameter (horizontal) | 30 | mm |
| Radial arm horizontal travel | 750 | mm |
| Spindle travel | 315 | mm |
| Sleeve lifting distance | 900 | mm |
| Radial arm rotation angle | 360 | ° |
| Max distance from spindle end to ground (vertical) | 1654 | mm |
| Min distance from spindle end to ground (vertical) | 440 | mm |
| Max distance from spindle center to ground (horizontal) | 2630 | mm |
| Min distance from spindle center to ground (horizontal) | 725 | mm |
| Max distance from spindle center to column | 1600 | mm |
| Min distance from spindle center to column | 850 | mm |
| Spindle taper | MT5 (Morse No.5) | — |
| Spindle head tilting angle | ±90 | ° |
| Spindle head rotation angle (perpendicular to arm) | 360 | ° |
| Spindle feed range | 0.06–1.0 | mm/r |
| Spindle feed steps | 9 | stages |
| Spindle speed range | 16–1250 | r/min |
| Spindle speed steps | 16 | stages |
| Sliding base travel | 2000 | mm |
| Max spindle torque | 490 | N·m |
| Main motor power | 4 | kW |
| Sleeve lifting motor power | 2.2 | kW |
| Radial arm moving motor power | 0.75 | kW |
| Hydraulic clamping motor power | 0.75 | kW |
| Spindle head rotating motor power | 1.1 | kW |
| Main drive hydraulic motor power | 0.18 | kW |
| Sliding base moving motor power | 2.2 | kW |
| Overall dimensions (L×W×H) | 4350×1710×3020 | mm |
| Net weight | 7200 | kg |
| Packing size (L×W×H) | 4600×1500×3500 | mm |
| Gross weight | 9500 | kg |
Resources & Downloads:
Z3550×20 Sliding Base Universal Radial Drilling Machine Product Introduction :
1. Main Application
This drilling machine is designed for drilling, reaming and tapping on large and heavy workpieces. The headstock can rotate, tilt and traverse, enabling multi-directional machining.
The base slide travels along the column body to expand the working range.
It is not used as primary equipment on production lines, yet it serves as an indispensable key machine for machining spatial holes on large and heavy components.
2. Main Features
2.1 The guideways on the radial arm, spindle sleeve, and raceways of inner & outer columns are surface quenched, effectively extending the service life of the machine.
2.2 All operating handles are centrally arranged at ergonomic positions for easy and light operation.
2.3 The headstock can perform continuous rotation or inching movement in both the longitudinal plane and vertical longitudinal plane of the machine.
2.4 Electric-hydraulic clamping mechanism is adopted for the column and sleeve, ensuring firm and reliable clamping.
2.5 The spindle speed is regulated by an electric-hydraulic preselector speed change mechanism.
2.6 Equipped with comprehensive safety protection devices.
3. Major Castings
Major components including column, radial arm and headstock are made of high-strength cast iron, which enhances overall rigidity and structural strength.
4. Lubrication System
4.1 The gearbox is equipped with automatic lubrication.
4.2 Manual lubrication is applied to the column, radial arm guideways and other moving parts.
5. Electrical System
The machine runs on 3-phase 380V/50Hz AC power supply. The control circuit, lighting circuit and indicator lights are powered by a control transformer.
