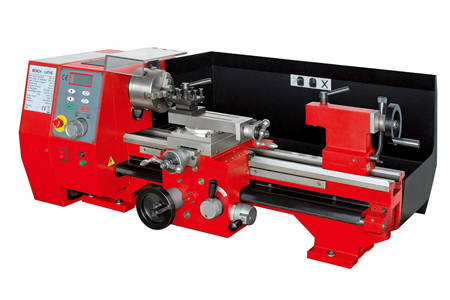

SC4 Bench Lathe
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Swing over bed |
210 mm |
| Distance between centers Model 410 |
410 mm |
| Model 510 |
510 mm |
| Hole through spindle |
20 mm |
| Spindle taper |
MT3 |
| Tailstock taper |
MT2 |
| Spindle speed (variable speed) |
150-2000 ±10% rpm |
| Compound travel |
70 mm |
| Cross slide travel |
100 mm |
| Motor output power |
1000 W |
| Thread ofrangeMetric |
0.25-3.0 mm (17 Threads pitches) |
| Imperial |
8-24 TPI (10 Threads pitches) |
| Overall dimension (LxWxH) |
910x630x400 mm |
| Packing Size (LxWxH) |
1060x710x510 mm |
| Weight (Net/Gross) |
95/125kg |
Product Description:
• 1000W high torque, brushless motor
• Near silent running
• Integral splash guard
• Metric and imperial thread cutting
• Electronic variable spindle speeds

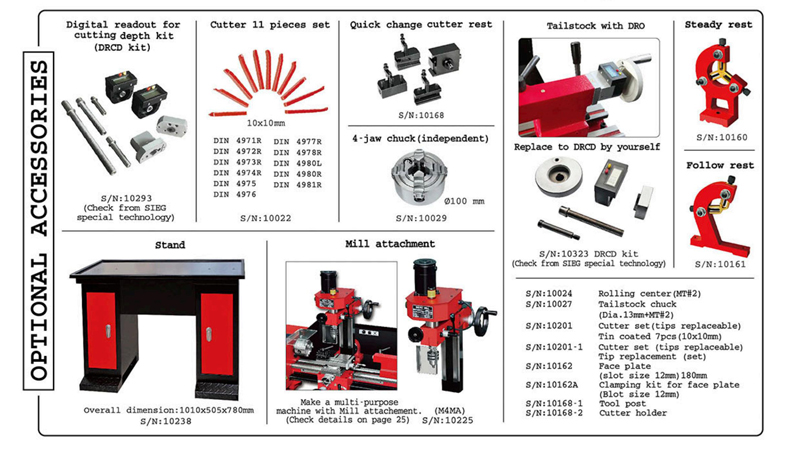

• Full range of accessories available
