CS Series cold cut circular saws
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| SPECIFICATIONS | Units | CS-225 | CS-250 | CS-315 | CS-350 |
| Max. blade size | mm(″) | 225(8.9) | 250 (9.8) | 315 (12.4) | 350 (13.8) |
| 90°Circular | mm(″) | 60 (2.36) | 60 (2.36) | 100 (4) | 120 (4.7) |
| 90°Rectangular | mm(″) | 50*50(2*2) | 75*45 (3*1.77) | 140*90 (5.5*3.5) | 140*100 (5.5*4) |
| 45°Circular | mm(″) | 52 (2.05) | 55(2.16) | 90 (3.5) | 105 (4.1) |
| 45°Rectangular | mm(″) | 50*50 (2*2) | 55*45 (2.16*1.77) | 100*90 (4*3.5) | 100*100 (4*4) |
| Blade speed | rpm | 46 | 42 | 18,36 | 18,36 |
| Max Vice opening | mm(″) | 70 (2.8) | 100 (4) | 145 (5.7) | 145 (5.7) |
| Main motor power | kw | 0.75/1.3 | 1.1/1.5 | 0.75/1.3 | 0.75/1.3 |
| Drive | – | Gear | Gear | Gear | Gear |
| Machine weight | kg | 63/75 | 143/171 | 185/207 | 190/212 |
| Overall dimension | mm | 640*390*720 | 890*580*1560 | 980*620*1670 | 980*620*1720 |

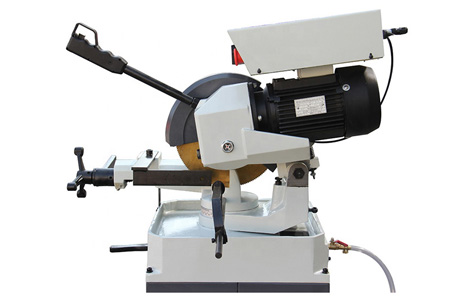

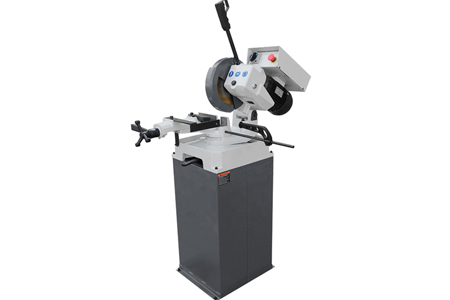

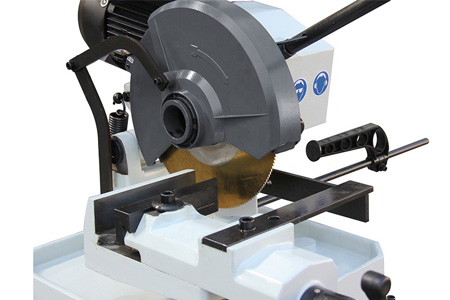

CS Series Cold Cut Circular Saws are the best cold-cutting machines for cutting ferrous and non-ferrous materials. For ferrous material, this unique type of cutting turns the blade at a very low RPM, similar to a milling process, giving a FAST, precise, burr-free cut without heat or sparks. ANTISHI Cold-cut Circular Saw with pivot and column designs for ferrous and non-ferrous applications, from manually to fully automatic control, and capable of cutting straight or angled cuts. ANTISHI has plenty of cold saws and blades in stock for immediate delivery.
Products Features:

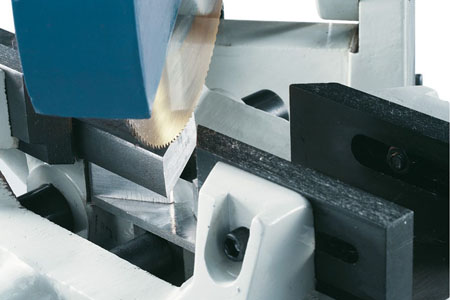

1. Vice complete with anti-burr device
2. 24volts low voltage installaton with hold to run had control knob
3. Movable head 45 right and left
4. Renuction unit in oil bath
5. Membrane pump for coolant,An integrated coolant system is part of the standard equipment on all models
6. Easy manual press
7. Quick adjusting vise for angular cuts the saw frame swivel
8. Rigid vise with quick-action clamping feature
9. A large idler gear runs in an oil bath for low maintenance and minimal wear
Standard Equipment
Quick-action vise
Base
Coolant system
1 saw blade
Linear stop
Optional Equipment
Roller table (1M/2M/3M/4M/5M/6M)
Circular Saw Blade
