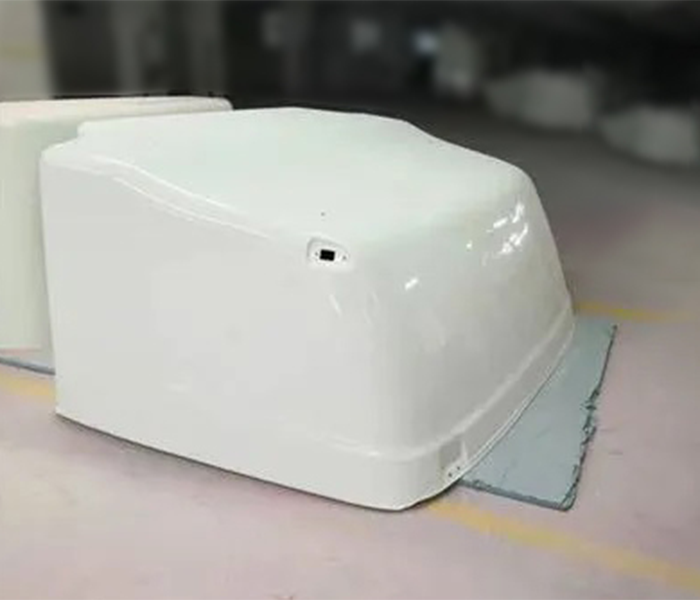

SMC automobile deflector is a product processed from FRP as raw material, using molding process, through the hydraulic press machine with mold, molding under high temperature and high pressure at a time. This style hydraulic press machine, also known as SMC automobile deflector molding hydraulic press machine, automobile deflector molding hydraulic press, is specially used for SMC (Sheet Molding Compound, sheet molding plastic) automobile deflector molding hydraulic equipment. Commonly used four-column type, frame type two kinds of structure.
The process of molding automobile deflector by four column hydraulic press machine:
1.Preheating and pre-pressing: in order to shorten the molding time and dry the moisture in the plastic, the plastic material will be preheated; and then the preheated material will be pre-pressed into the quality and shape of a certain plastic blank.
2.Addmaterial: Put the plastic material into the open mold.
3.Closing the mold: the mold is closed and heated and pressurized by the automobile deflector molding hydraulic press, so that the plastic melts and fills the cavity.
4.Demolding: After the plastic part is hardened and molded, the plastic part will be taken out.
According to the specification, size, etc, parameters of the automobile deflector, Shanghai ANTISHICNC can design and customize the automobile deflector molding hydraulic presses of various tonnages, such as 1000 tons, 1500 tons, 2000 tons, 2500 tons, 3000 tons, 3500 tons, 4000 tons, etc., in accordance with the actual needs of customization.

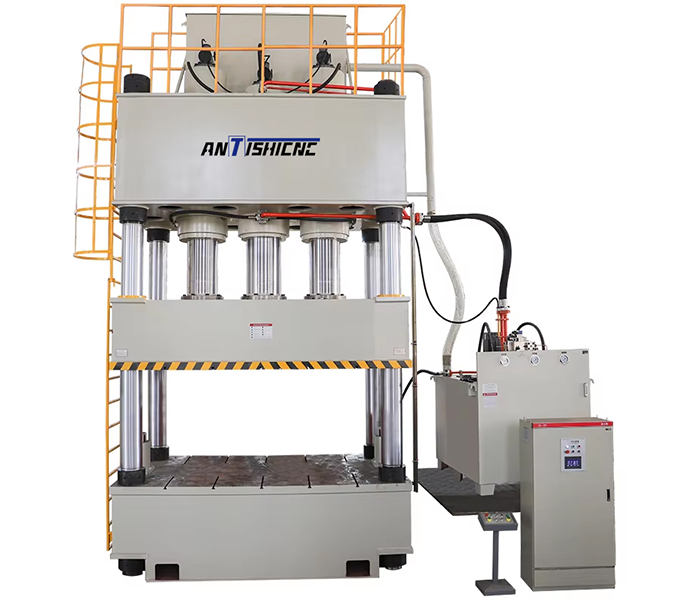

The 1500 tons SMC automobile deflector molding hydraulic press machine produced by Shanghai ANTISHICNC consists of two main parts: the main machine and the control mechanism, which are connected through the pipeline and the electric device to form a whole. The host part includes the machine body, main cylinder and other components. The control mechanism includes the power mechanism, range limiting device, pipeline and electrical control box, etc. 1500 tons of four column hydraulic press machine has an independent power mechanism and electrical system, and the use of centralized control buttons, can be adjusted and semi-automatic mode of operation. The working pressure and stroke range of the slider can be adjusted according to the technological requirements; and it can complete the two technological modes of fixed-pressure and fixed-range molding. Fixed-pressure molding process has pressure preservation and time-delayed automatic return action after pressing.
The hydraulic system is equipped with a set of slow mold opening cylinders and precision control hydraulic devices such as proportional valves and servo flow valves, each cylinder is individually equipped with a large-throughput fast-stroke charging valve, and the bottom of the table is equipped with an ejector cylinder, which can realize the actions of fast descending, slow descending, slow pressing, slow mold opening, fast return, and ejecting from the mold. It adopts PLC touch screen control plus servo-driven mode, which can realize semi-automatic production in the case of manually placing materials. The selected servo system can start and stop the servo motor intelligently to achieve the environmental protection effect of energy-saving and noise reduction.
| Description | Unit | 1500T |
| Nominal force | KN | 15000 |
| System pressure | MPa | 25 |
| Slide Stroke | mm | 1800 |
| Opening height | mm | 2500 |
| Table size | mm | 3000*2000 |
| Downward speed | mm/s | 120 |
| Working speed | mm/s | 5-10 |
| Return speed | mm/s | 60 |
| Motor power | kw | 37*2 |
Remark: The above parameters are for reference only, the actual parameters of the machine please refer to the technical program of Shanghai ANTISHICNC.
If you have SMC automobile deflector molding processing needs too, welcome to consult Shanghai ANTS Machine Equipment co., ltd. We have rich experience in manufacturing and using hydraulic press machines and can provide you with professional technical support.
