Laser pipe cutting machine is one of the main equipment for cutting pipes, such as square pipe, round pipe, and other types of pipes, can be cut effectively. It has the advantages of high precision, high efficiency and high flexibility.
Recently, Shanghai ANTS team received an inquiry from a sandwich panel machine manufacturer. The customer needs to cut RHS pipes with a length of 8 meters, a maximum width and height of 200 x 100mm and a pipe wall thickness of 4mm. The customer is interested in laser pipe cutting machine, so according to the customer’s needs, we recommend the laser pipe cutting machine AT-8022 to the customer.

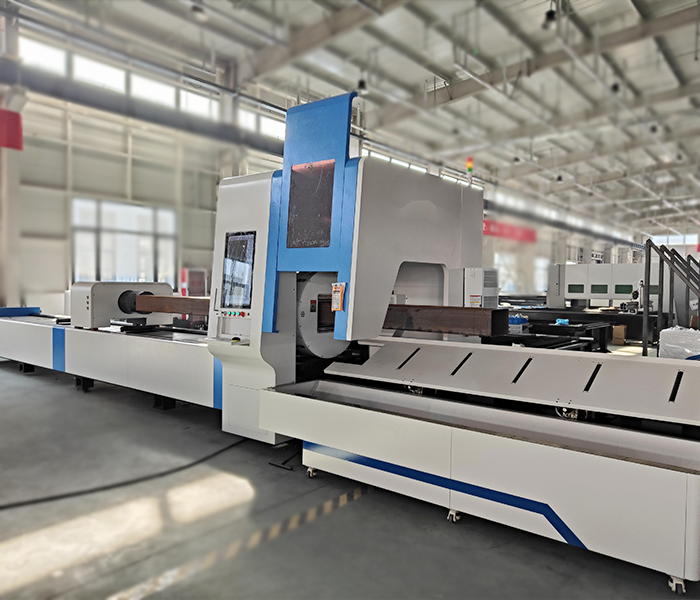

AT-8022 has a gantry type double drive structure, its cutting area is 8000mm*220mm, standard outfeed table is 3 meters, chuck diameter is 220mm, positional accuracy is ±0.03mm/1000mm, cutting speed is 120m/min.
Customers would like big power, and add a 3-meter outfeed table, we recommend to the customer to make the outfeed table directly into 6-meter, the power is 3000W. The customer is very satisfied with our proposal.
| Description | AT-8022 |
| Working area | 8000mm*220mm |
| Laser power | 3000W Raycus (According to the workpiece size) |
| Position accuracy | ±0.03mm/1000mm |
| Transmission system | Gantry Double-drive structure |
| Maximum speed | 120m/min |
| Laser type | Fiber laser generator |
| Graphic format supported | CAD. DXF (etc) |
| Working environment | Temp:0-40℃,humidity:≤80% No condensation |
| Reposition accuracy | ±0.02mm/1000mm |
| Lubrication system | Full-automatic |
| Maximum accelerated speed | 1.0G |
| Machine body | Plate welded, Gantry milling, De-stressing, De-firing |
If you are also a sandwich panel machine manufacturer, or have similar processing needs, welcome to consult Shanghai ANTS Machine Equipment co.,ltd. We have rich experience in manufacturing and using laser pipe cutting machines and can provide you with professional technical support.
