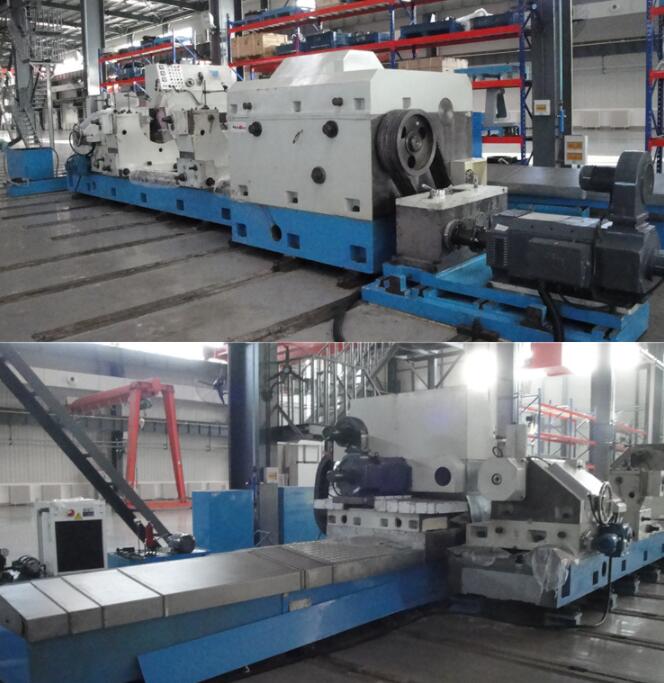

Max. Diameter to be ground (grinding wheel, OD 750mm) |
800 mm |
|
Min. Diameter to be ground (grinding wheel, OD 750mm) |
120 mm |
|
Max. Length to be ground |
4000 mm |
|
Max. Weight of workpiece to be ground |
5000 kg |
|
Workpiece speed |
6 to 60 rpm |
|
Dimension of grinding wheel |
750×70×305 mm |
|
Speed of grinding wheel |
35 m/s |
|
Cross stroke of grinding wheel |
380 mm |
|
Cross rapid traverse of grinding wheel |
400 mm/min |
|
Crown in radius direction |
≤ 1.5 mm |
|
Rapid speed of saddle in z-axis |
20 – 2500 mm/min |
|
Continual cross feed speed |
0.002 – 1.2 mm/min |
|
Periodical cross feed |
0.003 – 0.12 mm/travel |
|
Measuring range of measuring system |
90 – 820 mm/min |
|
Stroke of tailstock quill |
300 mm |
|
Steady rest |
120 – 300 – 420 mm |
|
Net dimension of the machine: |
10,500×3,800×2,600 mm |
|
Net weight |
approx. 64,000 kg |
|
Main electrical parts: |
Schneider in France |
|
Control system |
SINUMERIK 840D (NCU573.4 CPU PⅢ 500MHZ) |
